Reassembly & Installation

To reassemble, reverse disassembly procedure. Ensure coil spring is well seated in spring seats. To install, reverse removal procedure. Check rear wheel alignment. See SPECIFICATIONS & PROCEDURES article in the WHEEL ALIGNMENT section.

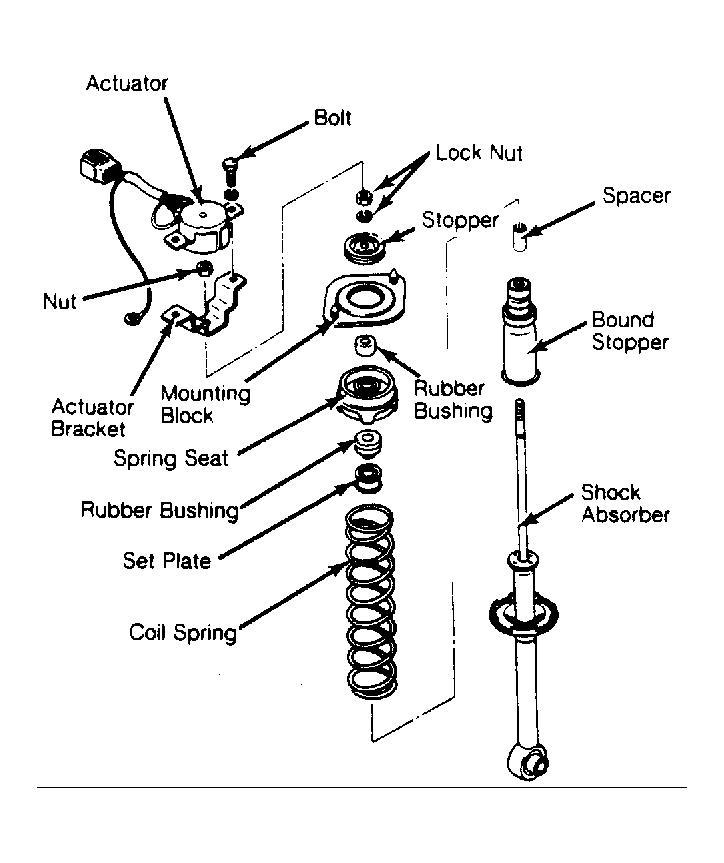

Fig 1: Exploded View of Strut Assembly

Courtesy of MAZDA MOTORS CORP.
