Power Steering Pump

Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig 1 and Figure . See DEFLECTION SPECIFICATIONS  . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

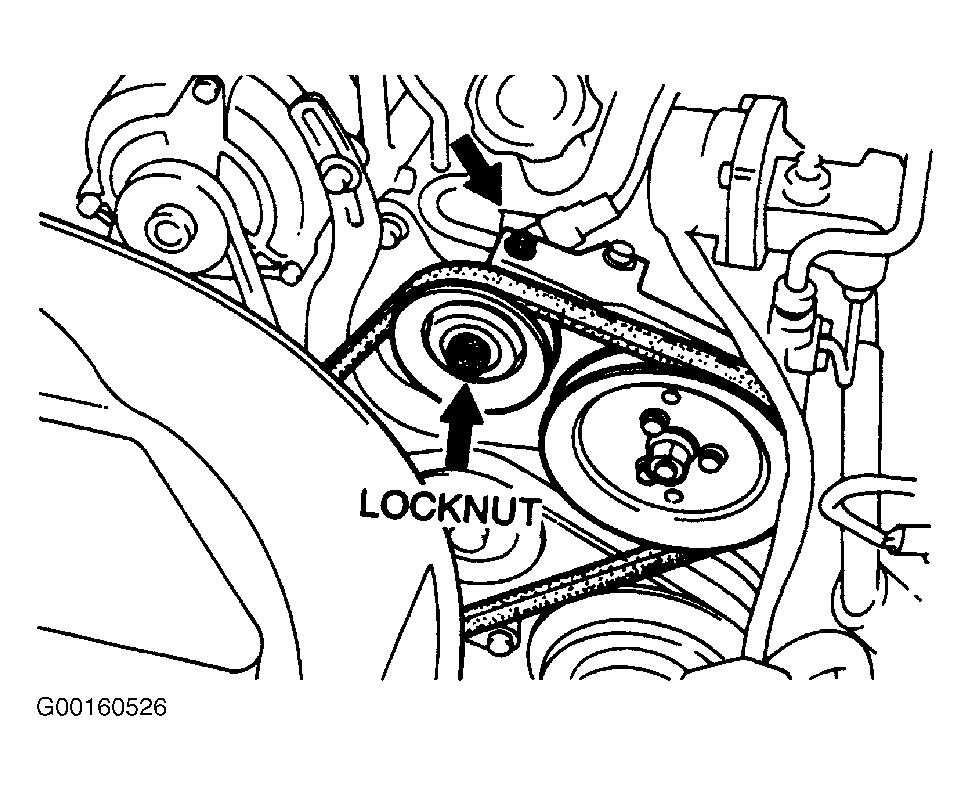

Fig 1: Adjusting Power Steering Pump Belt
G00160526Courtesy of MAZDA MOTORS CORP.
