Disassembly, Inspection & Reassembly

Disassemble in numbered sequence. See Fig 1 . To reassemble, reverse numbered sequence. Check clearance between pinion gear washer and planetary carrier housing. See PLANETARY GEAR SPECIFICATIONS  table. Ensure sun gear is installed in proper direction. See Figure .

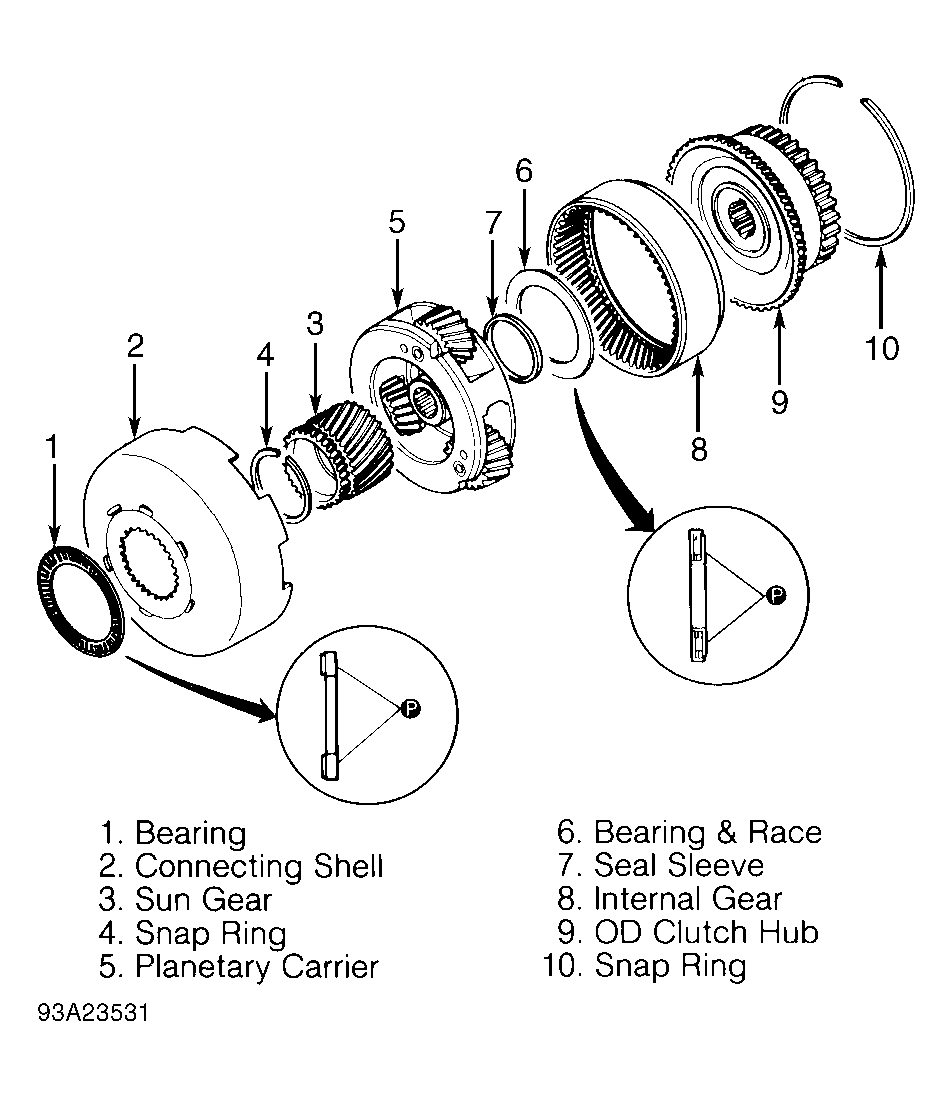

Fig 1: Exploded View Of OD Planetary Gear

Courtesy of MAZDA MOTORS CORP.
