Disassembly (MPV 4-Cylinder)

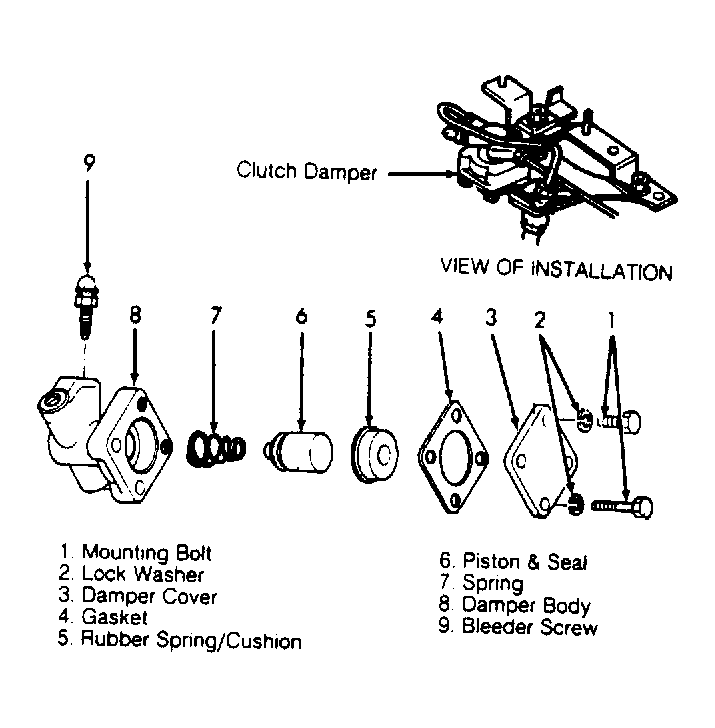

Remove damper from vehicle. See CLUTCH DAMPER . Hold cover in place and remove remaining damper cover mounting bolts. See Figure. If necessary, cover unit with a rag and use compressed air to force damper piston and seal from cylinder bore. Remove return spring and bleeder screw.
