Od Case & Drum Support: Reassembly

  1. Install OD cancel valve and spring (if equipped). Install new roll pin. Install lubrication plug. Install oil pump assembly onto Centering Shaft (49 S019 003 or 49 S019 0A0). Mount OD case, gasket and drum support on oil pump.
  2. Ensure OD case assembly is inserted properly into oil pump. Loosen drum support bolts (if tightened). Insert Alignment Shaft (49 S019 002 or 49 S019 0A0), tapered edge first, completely through drum support. Install Oil Pump Centering Pins (49S 019 004). Recheck alignment, and tighten drum support bolts. See Fig 1 .

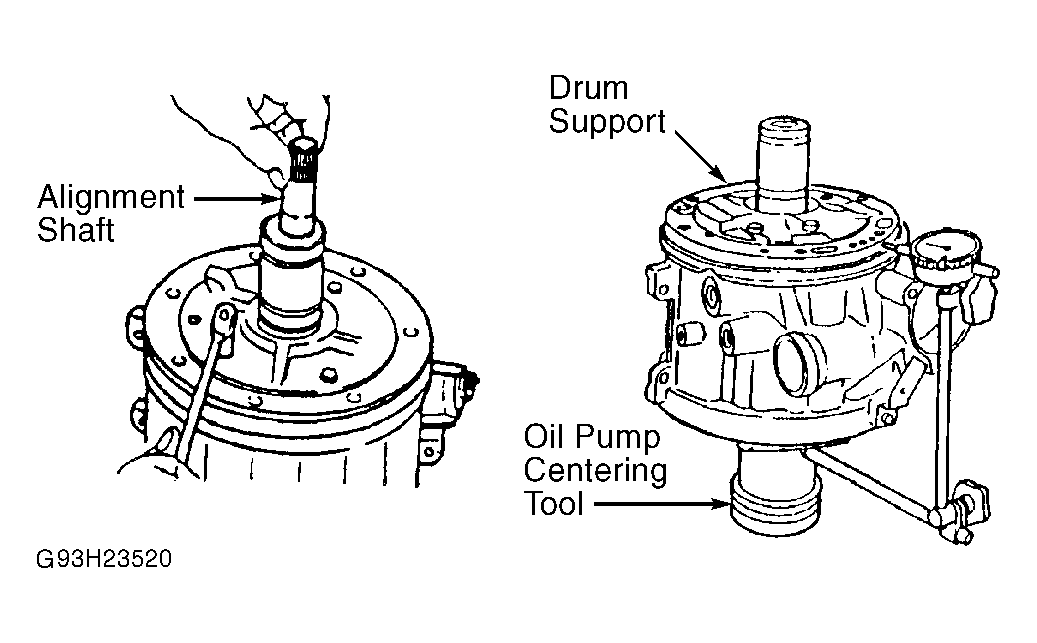

Fig 1: Aligning Drum Support
G93H23520Courtesy of MAZDA MOTORS CORP.
