2ND Band Servo: Inspection

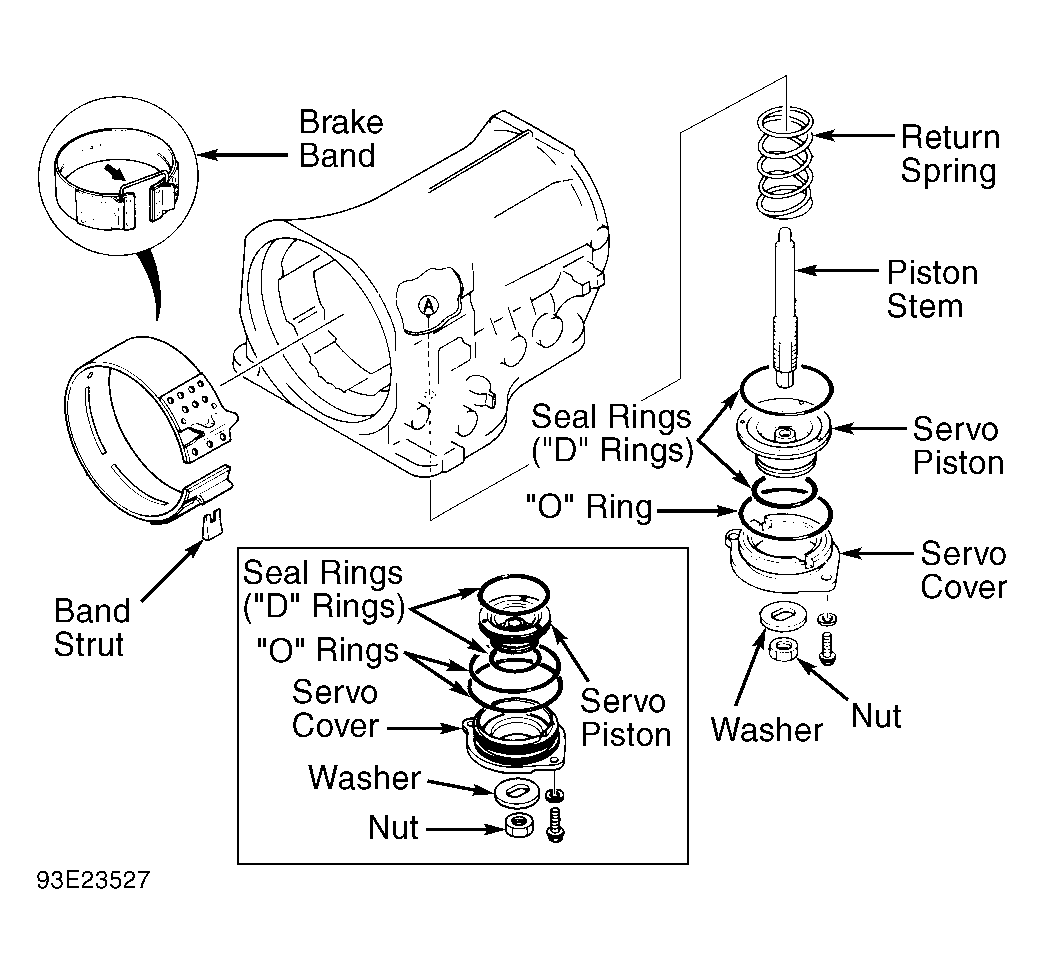

Check piston stem for wear or damage. Check piston for scoring or damage. Check free length of return spring. Refer to the 2ND BAND RETURN SPRING SPECIFICATIONS table.
2ND BAND RETURN SPRING SPECIFICATIONS
| Application | Spring Length In. (mm) | |
|---|---|---|
| Miata | 1.457 (37.00) | |
| RX7 | 1.840 (46.70) | |
| 929 | ||
| DOHC | 1.421 (36.10) | |
| SOHC | 1.457 (37.00) | |
