Wiring Diagrams

For additional diagrams, see appropriate chassis wiring diagrams in WIRING DIAGRAMS article.

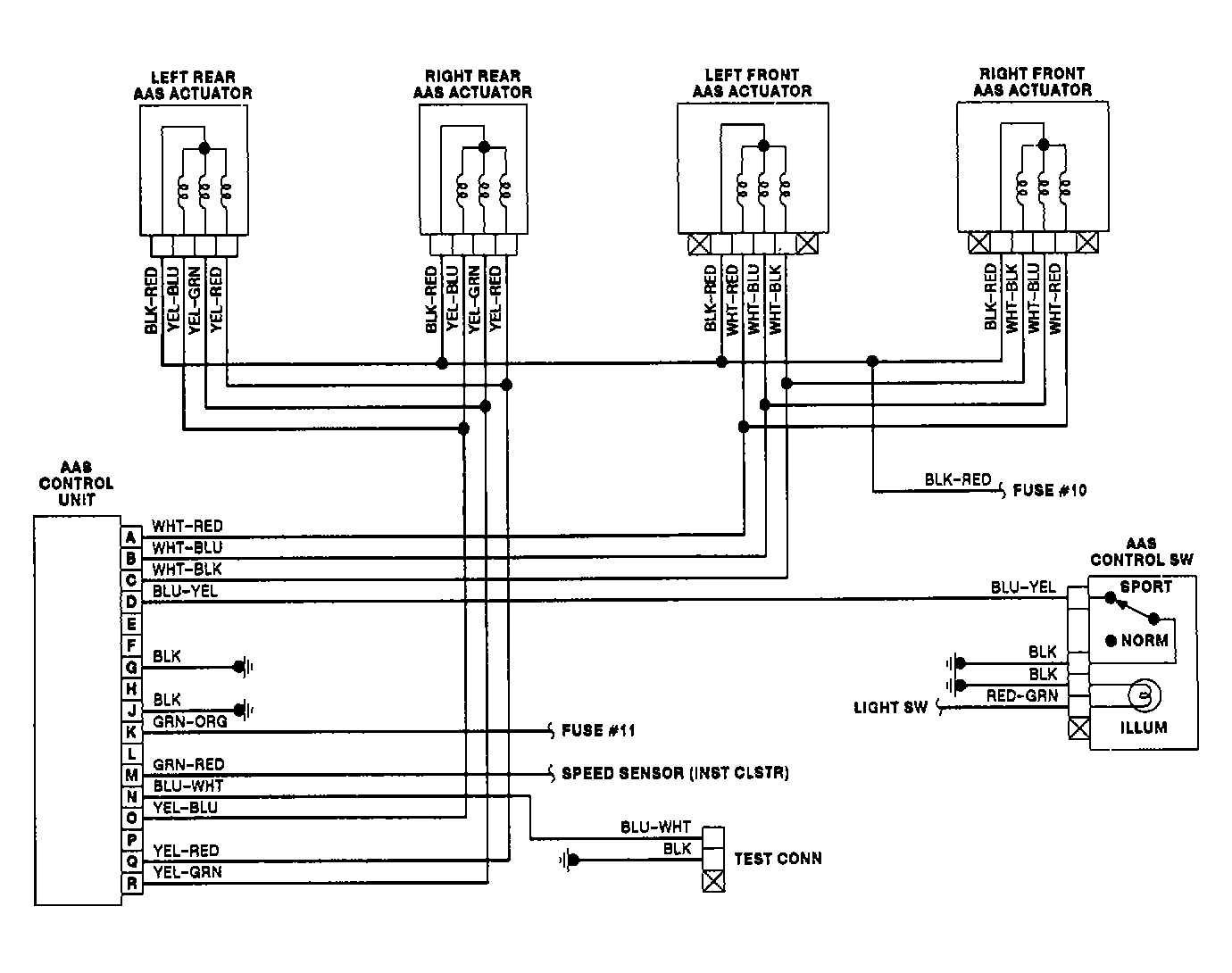

Fig 1: Auto Adjust Suspension (AAS) Wiring Diagram (RX7)
G91F00112

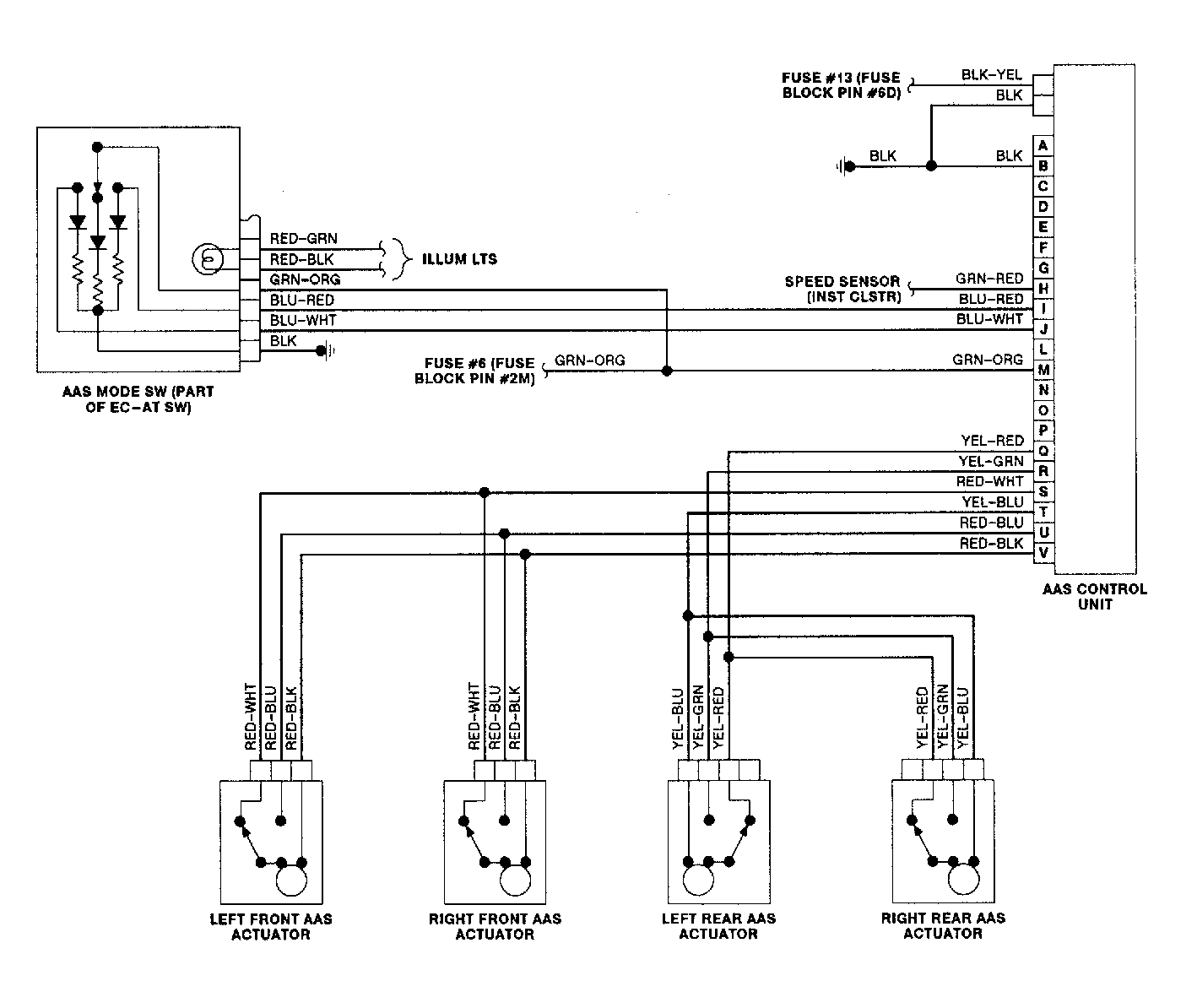

Fig 2: Auto Adjust Suspension (AAS) Wiring Diagram (929)
G91G00113
