P/S 1: Failure Of Solenoid Valve Or Wiring Harness Control Unit To Solenoid Valve); P/S 2: Broken Wiring Harness (Control Unit To Coil)

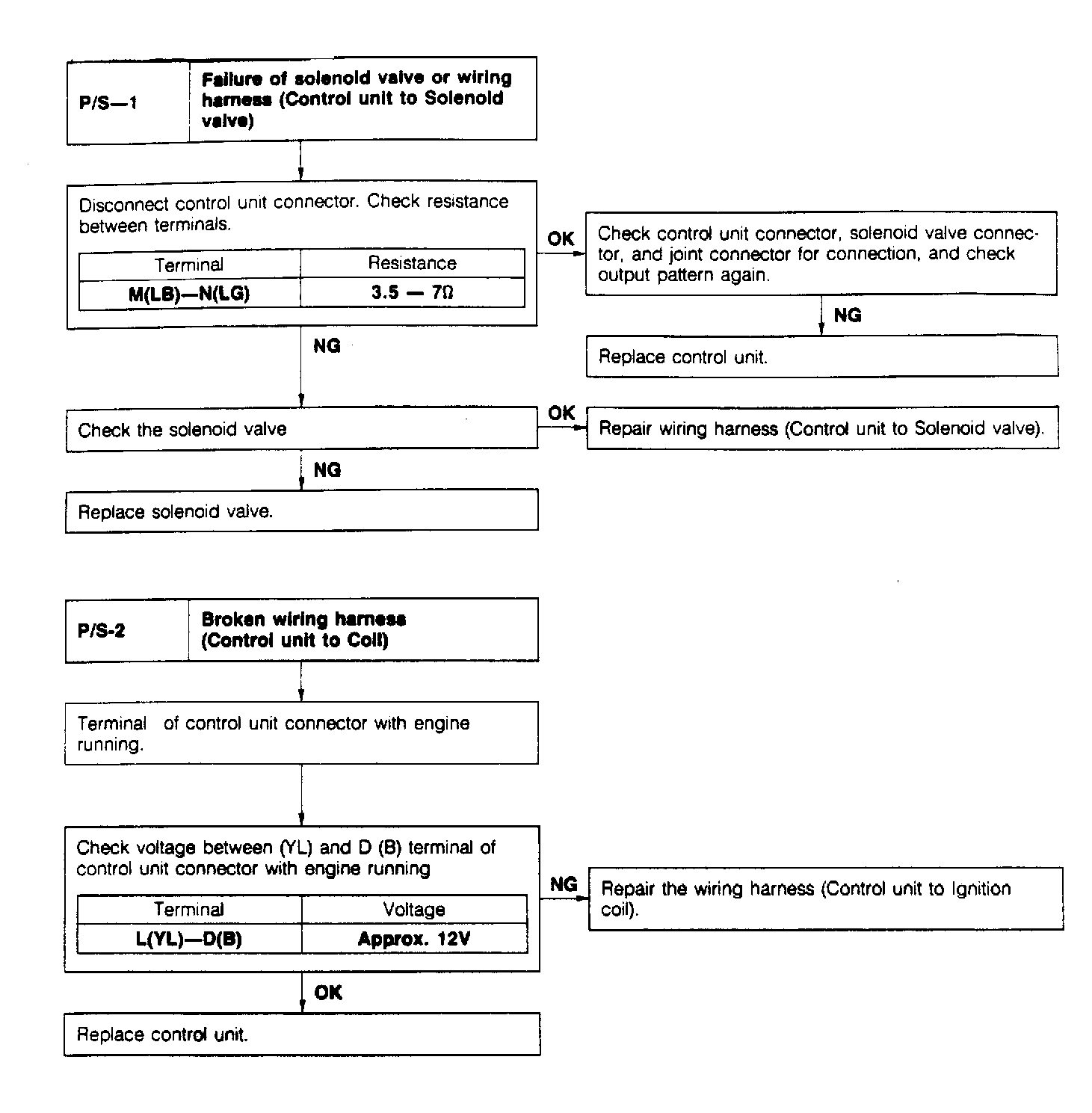

Fig 1: P/S 1 & 2 Flow Chart

G101401

Courtesy of MAZDA MOTORS CORP.
