Removal (Rear Safing Sensor)

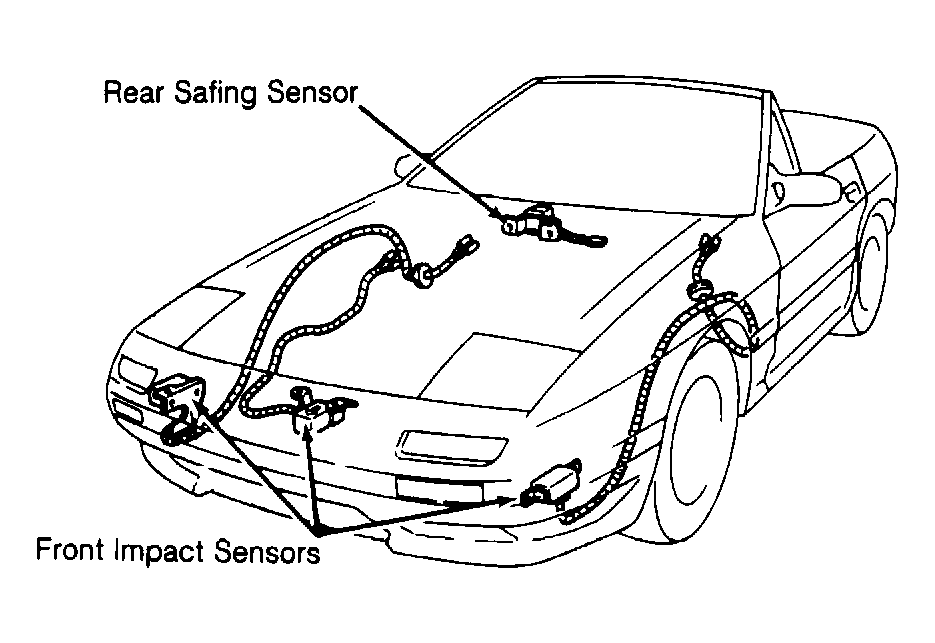

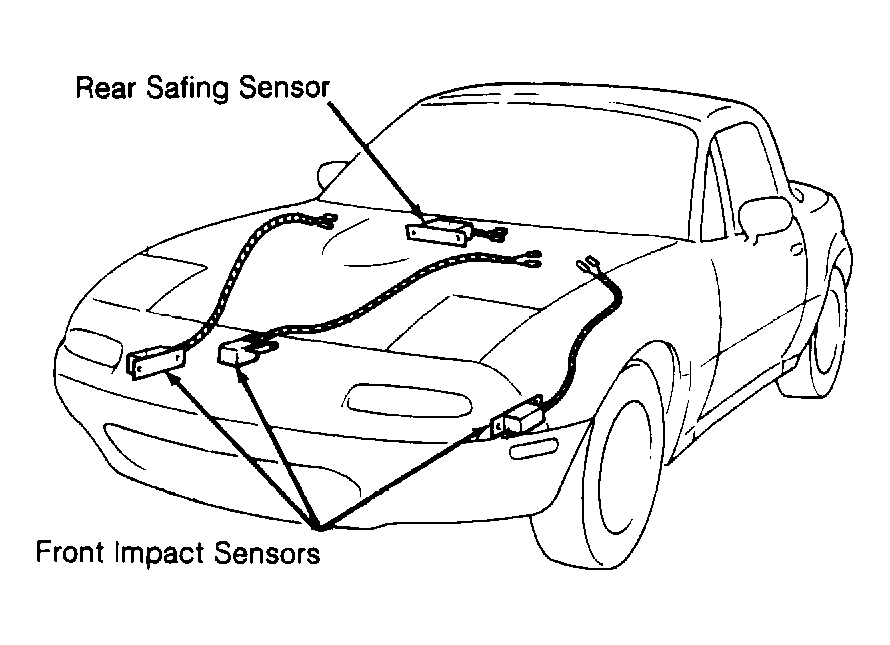

Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM. Rear safing sensor is located under center of instrument panel. Remove instrument panel. Locate and disconnect safing sensor connectors. See Figure or Figure . Remove sensor and cover.

CAUTION: A double-lock mechanism is used on clockspring connectors. DO NOT use excessive force when disconnecting connectors, as damage to connector may occur.
