Warning Light Flashes 10 Times

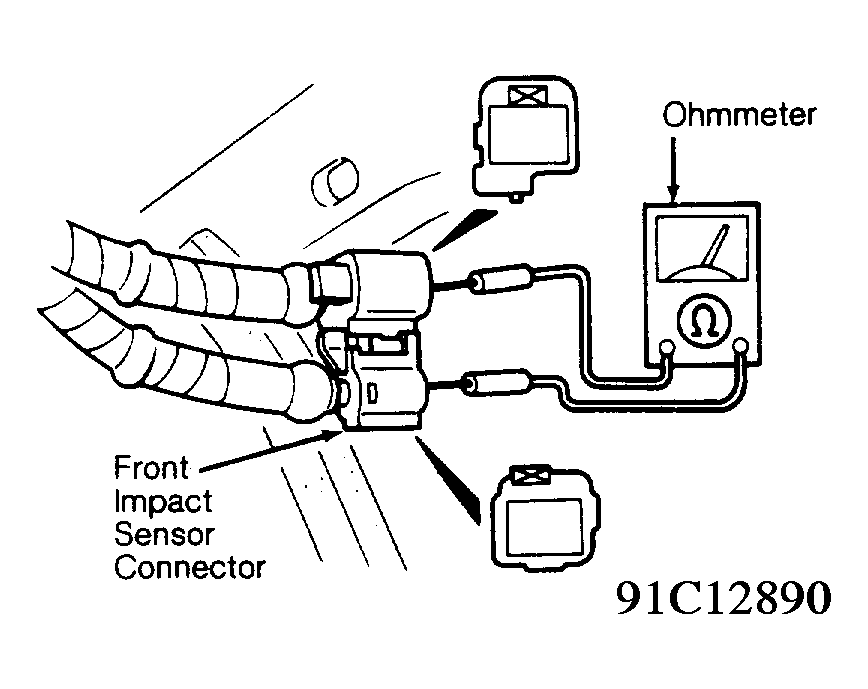

  1. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM. Disconnect front impact sensor connectors (center, left, and right), and measure resistance of each sensor. See Figure . Resistance should be approximately 1.2 k/ohms. If resistance is not as specified, replace sensor and go to step 5).
  2. If resistance is about 1.2 k/ohms, reconnect all front impact sensor connectors. Disconnect diagnostic module Black and Gray connectors. See Figure or Figure . Measure resistance between diagnostic module Gray connector Brown/Green wire and ground. If resistance is 1.2 k/ohms, go to next step. If resistance is not 1.2 k/ohms, replace wire harness.
  3. Measure resistance between diagnostic module Gray connector Brown/Red wire and ground. If resistance is 1.2 k/ohms, go to next step. If resistance is not 1.2 k/ohms, replace wire harness.
  4. Measure resistance between diagnostic module Black connector Brown/Black wire and ground. If resistance is 1.2 k/ohms, go to next step. If resistance is not 1.2 k/ohms, replace wire harness and go to next step.
  5. If disconnected, reconnect diagnostic module and clockspring connectors. Reconnect negative battery cable. Turn ignition switch to ON position and check warning light operation. If warning light flashes 10 times, replace diagnostic module.
