Air Pump

Loosen air pump bolts and adjust belt deflection by turning adjusting bolt. See Fig 1 . See DEFLECTION SPECIFICATIONS  . Tighten bolts to specification. See TORQUE SPECIFICATIONS  .

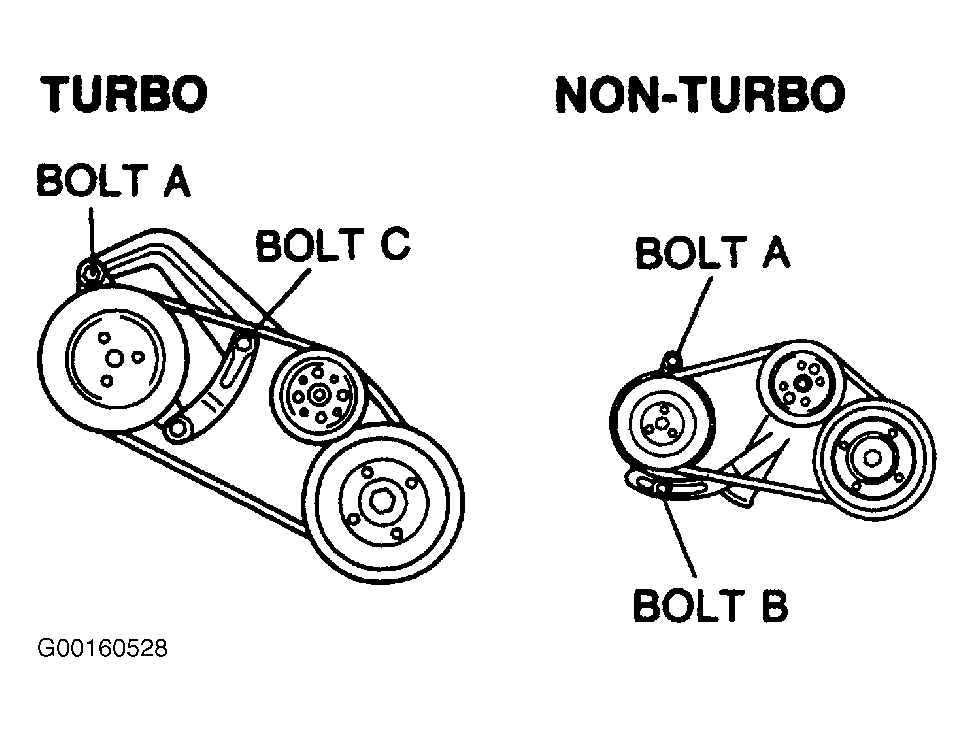

Fig 1: Adjusting Air Pump Belt
G00160528Courtesy of MAZDA MOTORS CORP.
