Removal & Installation (Protege & 323)

Remove steering wheel and column covers. See Fig 1 . Remove combination switch. Remove meter hood. Remove screws attaching instrument cluster to dash.
Pull instrument cluster far enough forward to disconnect speedometer cable. Disconnect wiring harness connectors, and remove instrument cluster. To install, reverse removal procedure.

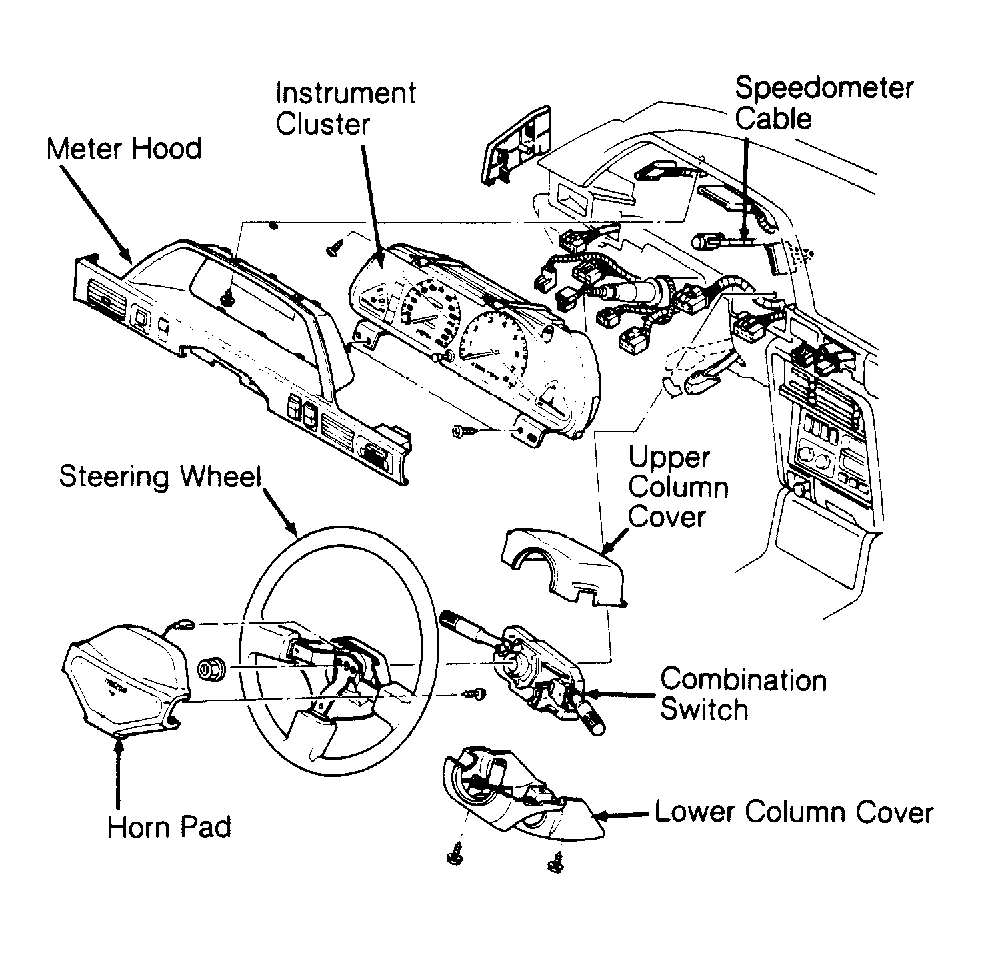

Fig 1: Removing Instrument Cluster (Protege & 323)

Courtesy of MAZDA MOTORS CORP.

WARNING: RX7 convertible models are equipped with an air bag restraint system. See AIR BAG article for warnings and safety precautions.
