Removal & Installation (Navajo)

  1. Disconnect negative battery cable. Remove column covers. Tilt steering wheel down (if equipped with tilt wheel) or remove steering wheel. Remove lower instrument panel cover. Remove instrument cluster cover. Remove instrument cluster mounting screws. See Fig 1 . Pull cluster slightly away from dash.
  2. On A/T models, remove 2 PRNDL indicator screws-to-cluster screws. Slide PRNDL indicator down and out of cluster. On all models, disconnect harness connectors and speedometer cable.
  3. Disconnect bulbs from sockets, and remove instrument cluster. To install, reverse removal procedure.

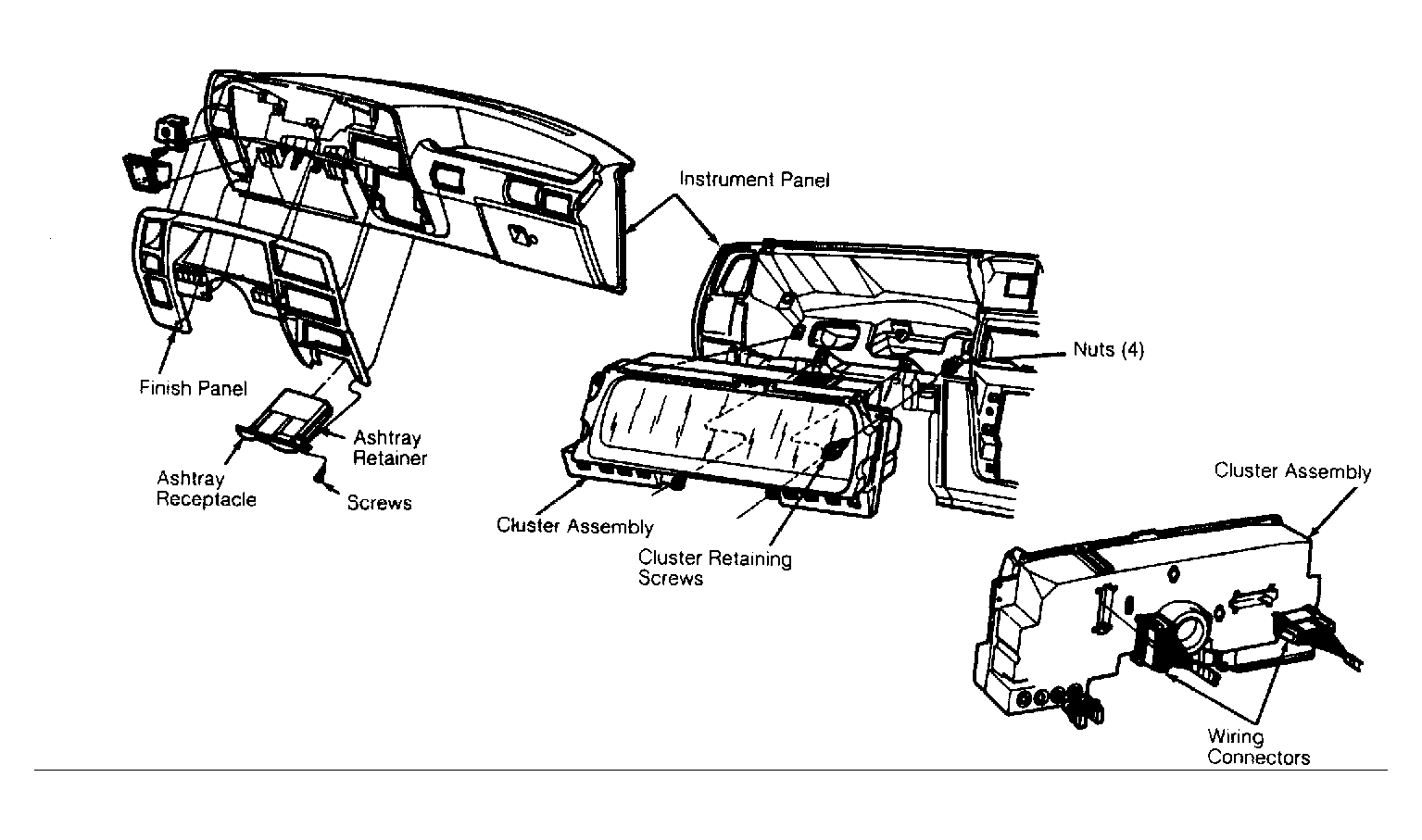

Fig 1: Removing Instrument Cluster (Navajo)
G117103Courtesy of MAZDA MOTORS CORP.
