Removal & Installation (Miata)

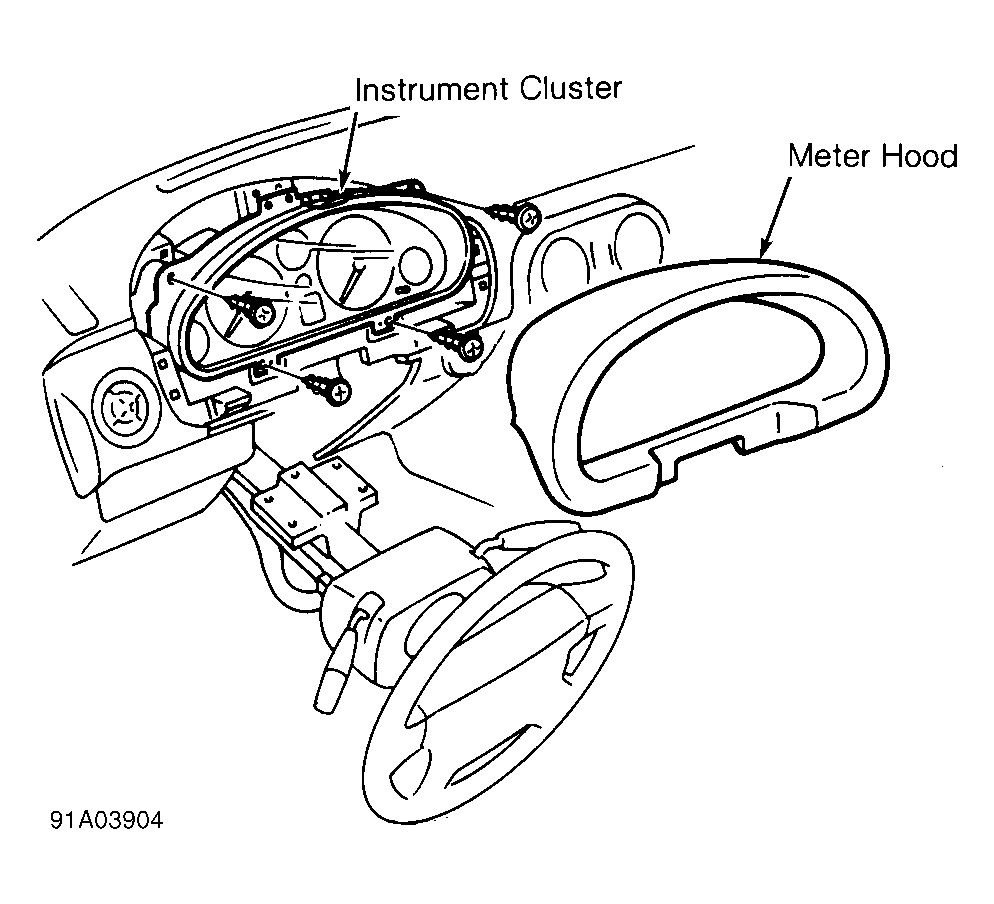

Remove steering column mounting bolts. Lower steering wheel. Remove instrument cluster cover. Remove instrument cluster mounting screws. Disconnect harness connectors and speedometer cable. Remove instrument cluster. See Fig 1 . To install, reverse removal procedure.
