Removal & Installation (1992 929)

Remove steering wheel and column covers. Remove screws attaching instrument cluster cover to instrument cluster. Remove screws attaching instrument cluster to instrument panel. See Fig 1 .
Pull instrument cluster far enough forward to disconnect speedometer cable. Disconnect wiring harness connectors, and remove instrument cluster. To install, reverse removal procedure.

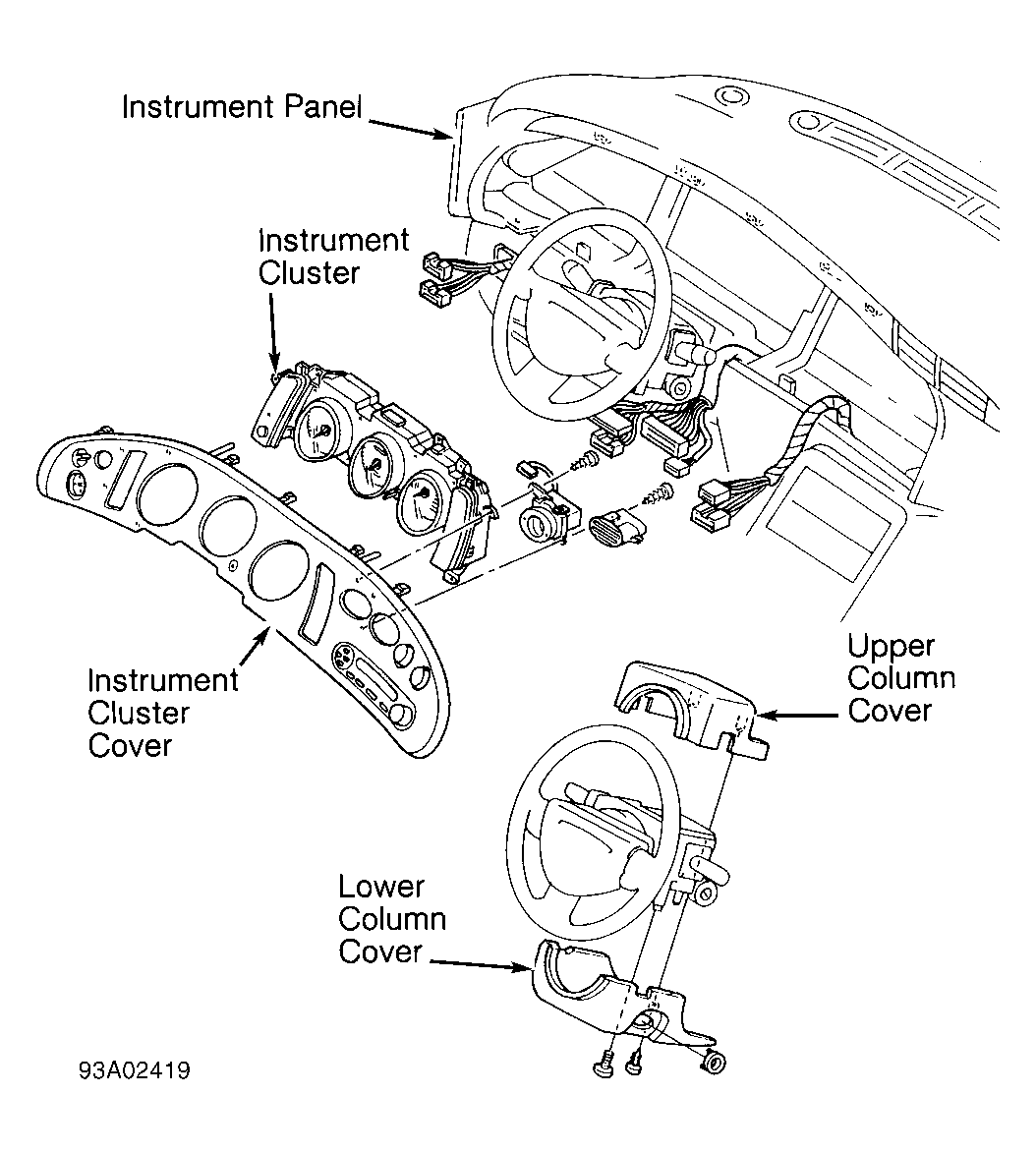

Fig 1: Removing Instrument Cluster (1992 929)

G93A02419

Courtesy of MAZDA MOTORS CORP.

Fig 2: Exploded View of Instrument Cluster (B2200 & B2600i "A")

G103039

Courtesy of MAZDA MOTORS CORP.

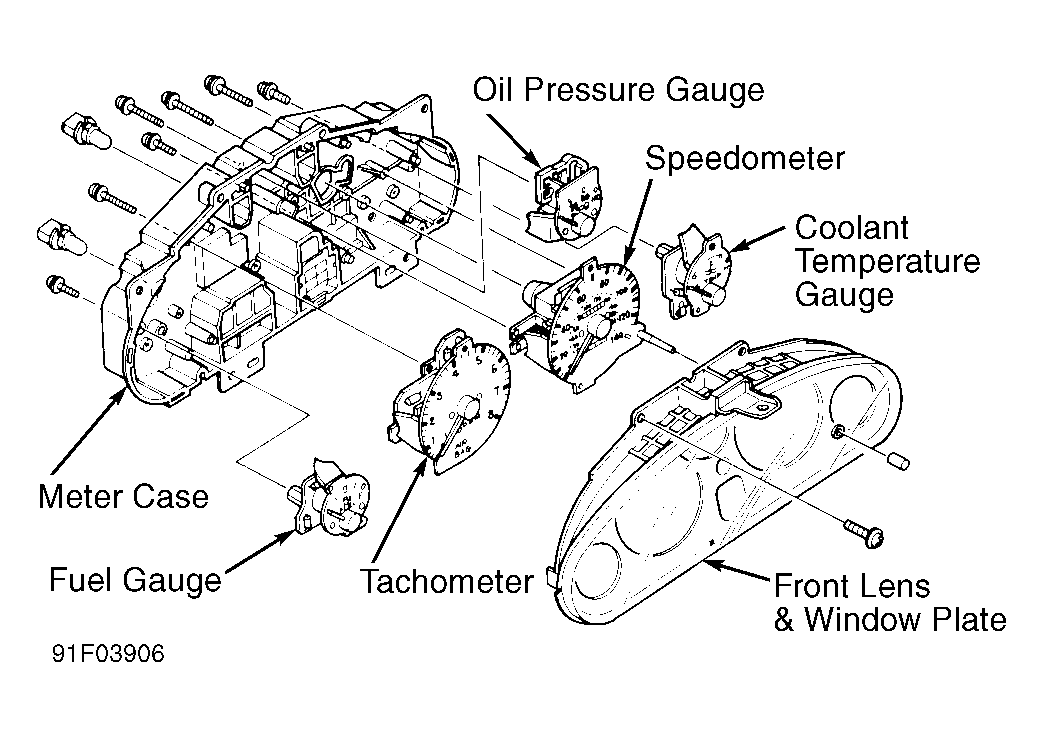

Fig 3: Exploded View of Instrument Cluster (Miata)

G91F03906

Courtesy of MAZDA MOTORS CORP.

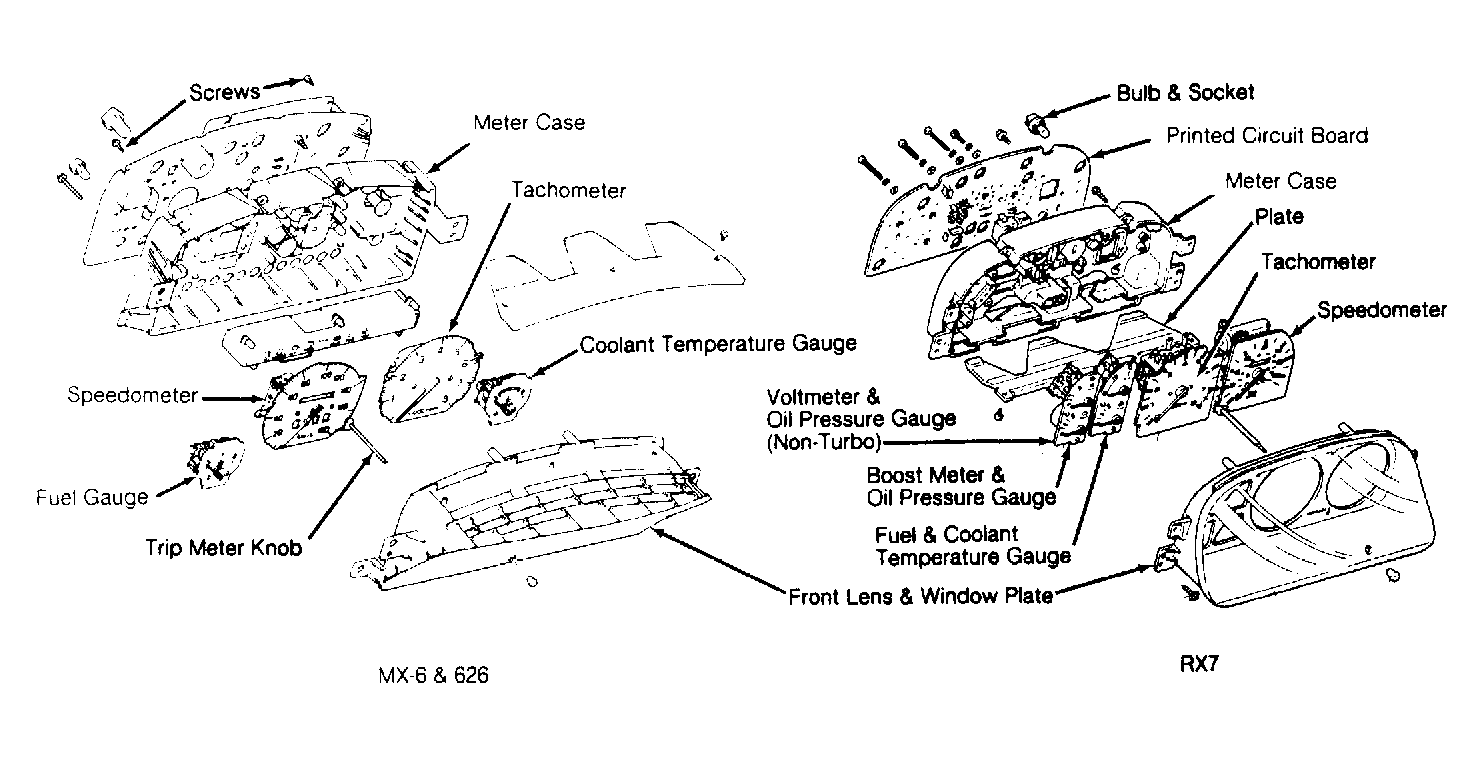

Fig 4: Exploded View of Instrument Clusters (MX-6, 626 & RX7)

G103040

Courtesy of MAZDA MOTORS CORP.

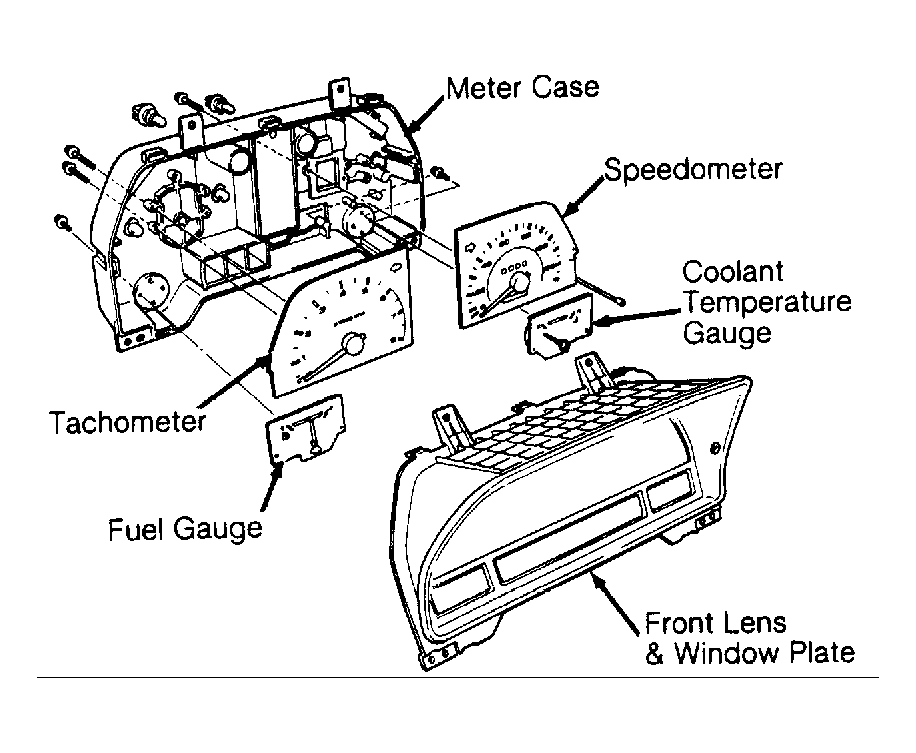

Fig 5: Exploded View of Instrument Cluster (MPV)

G91H03907

Courtesy of MAZDA MOTORS CORP.

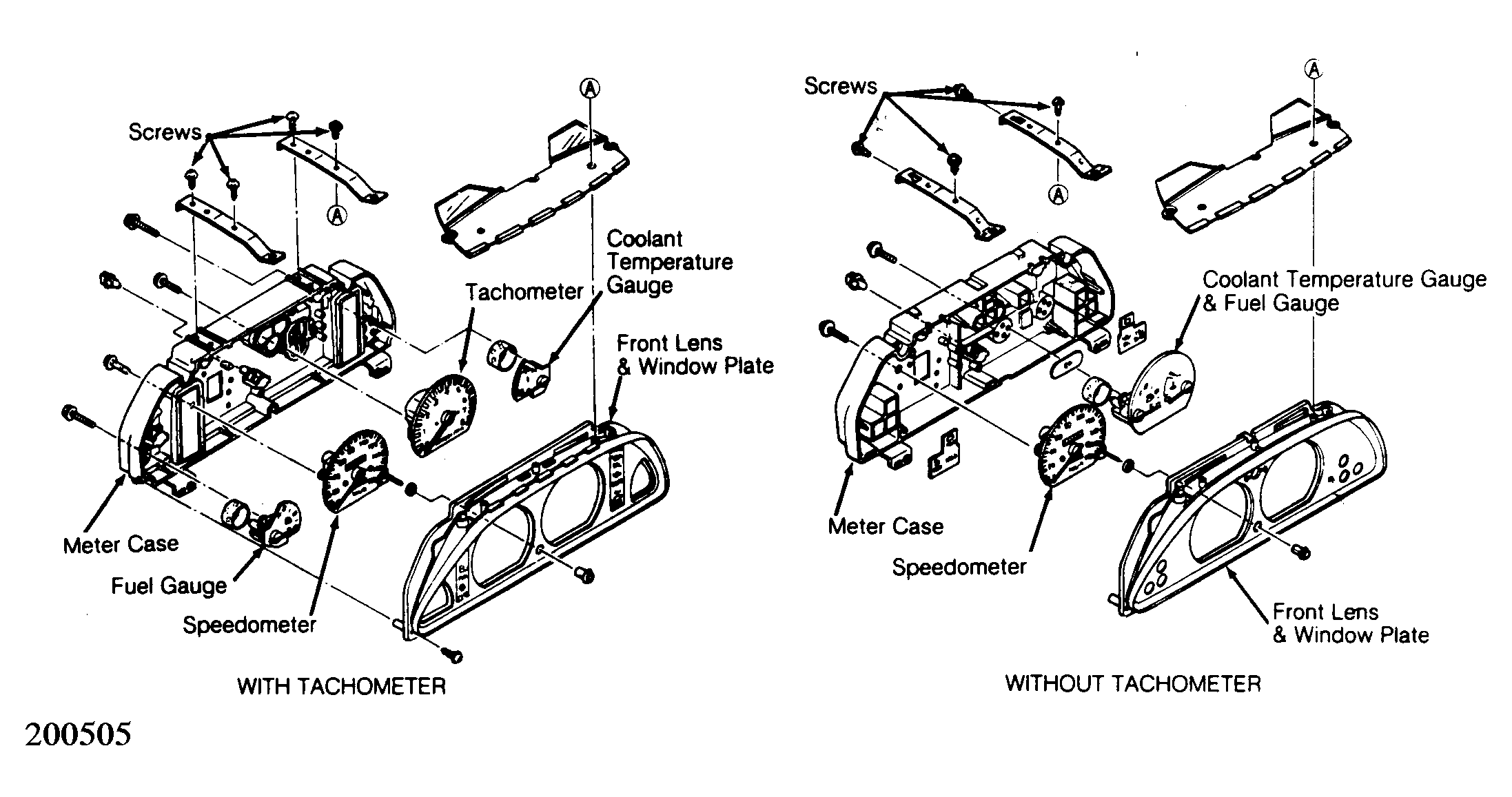

Fig 6: Exploded View of Instrument Clusters (Protege & 323)

G200505

Courtesy of MAZDA MOTORS CORP.

Fig 7: Exploded View of Instrument Cluster (929)

G103042

Courtesy of MAZDA MOTORS CORP.

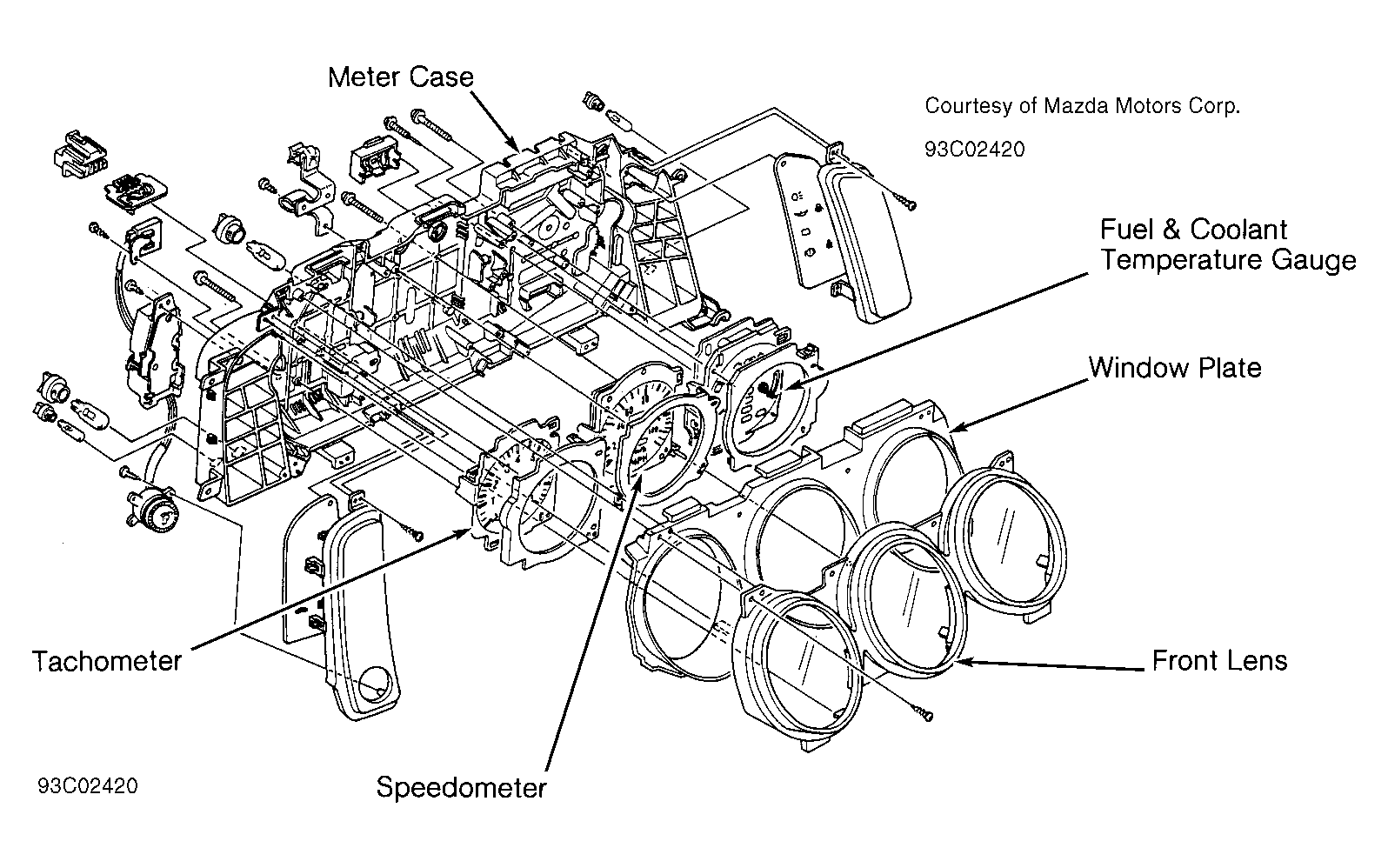

Fig 8: Exploded View of Instrument Cluster (1992 929)

G93C02420

Courtesy of MAZDA MOTORS CORP.
