Wiring Diagrams

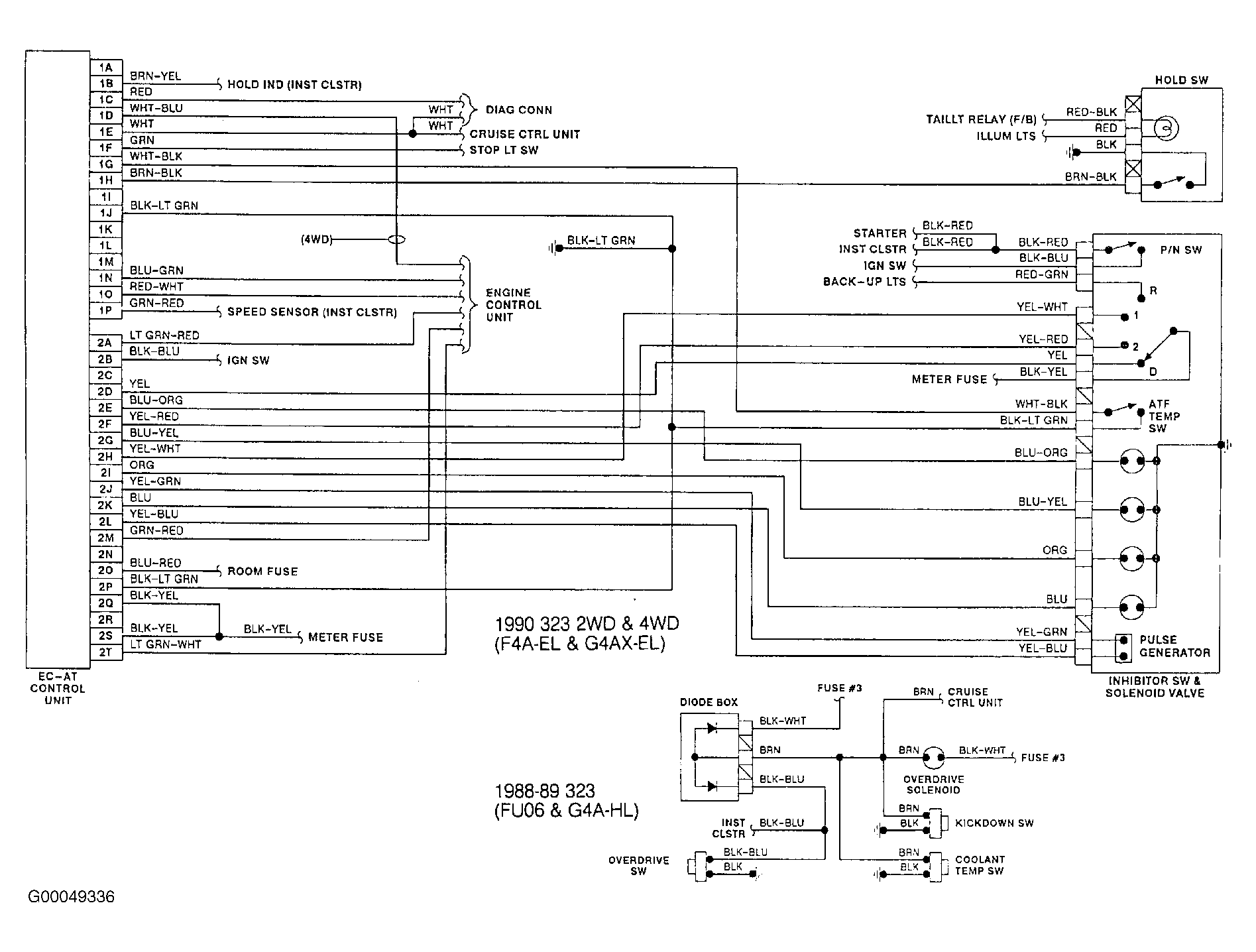

Fig 1: Wiring Diagram - 1988-90 Mazda 323

Courtesy of MAZDA MOTORS CORP.

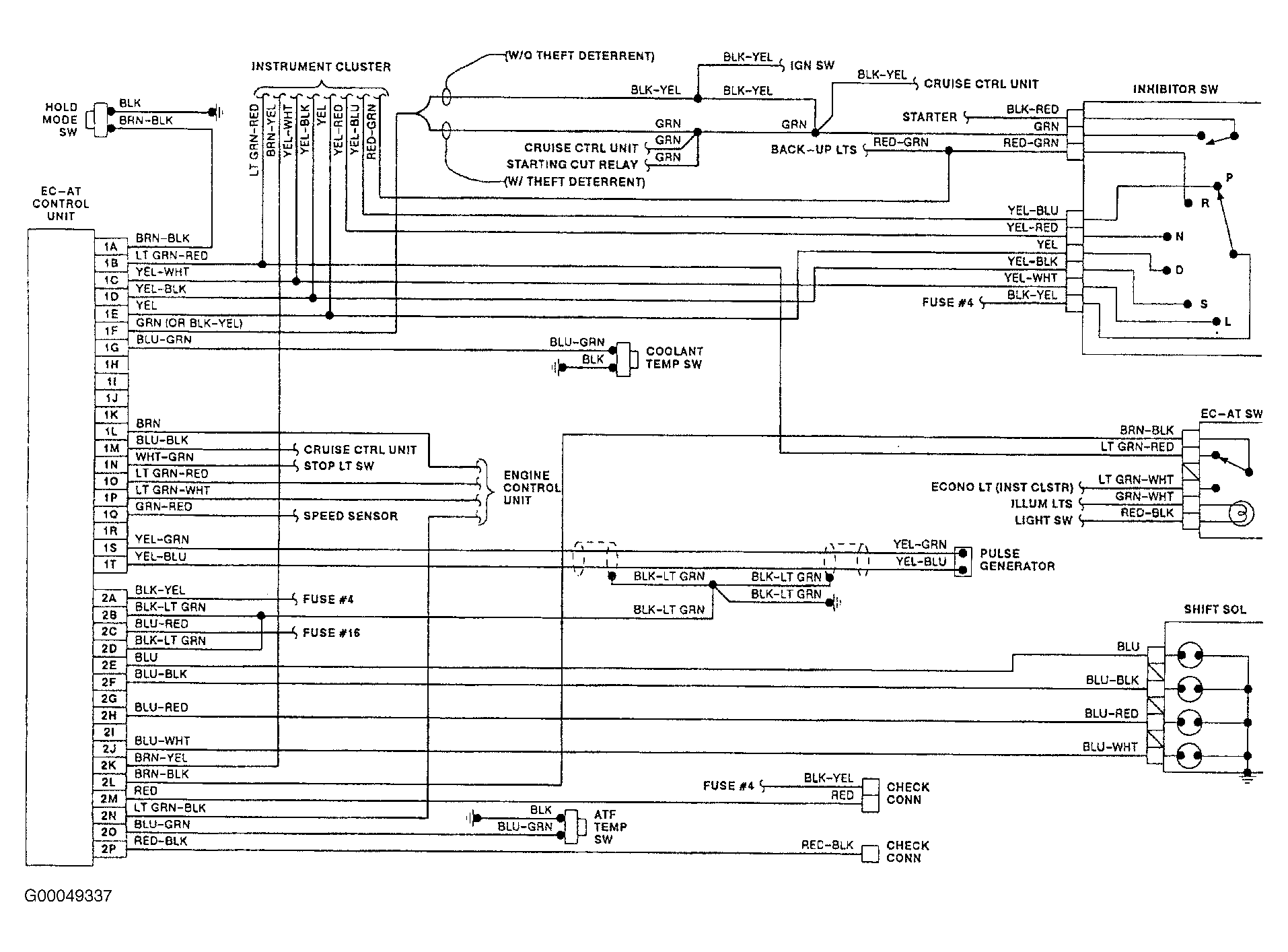

Fig 2: Wiring Diagram - 1988-89 MX-6 & 626 Non- Turbo (G4A-EL)

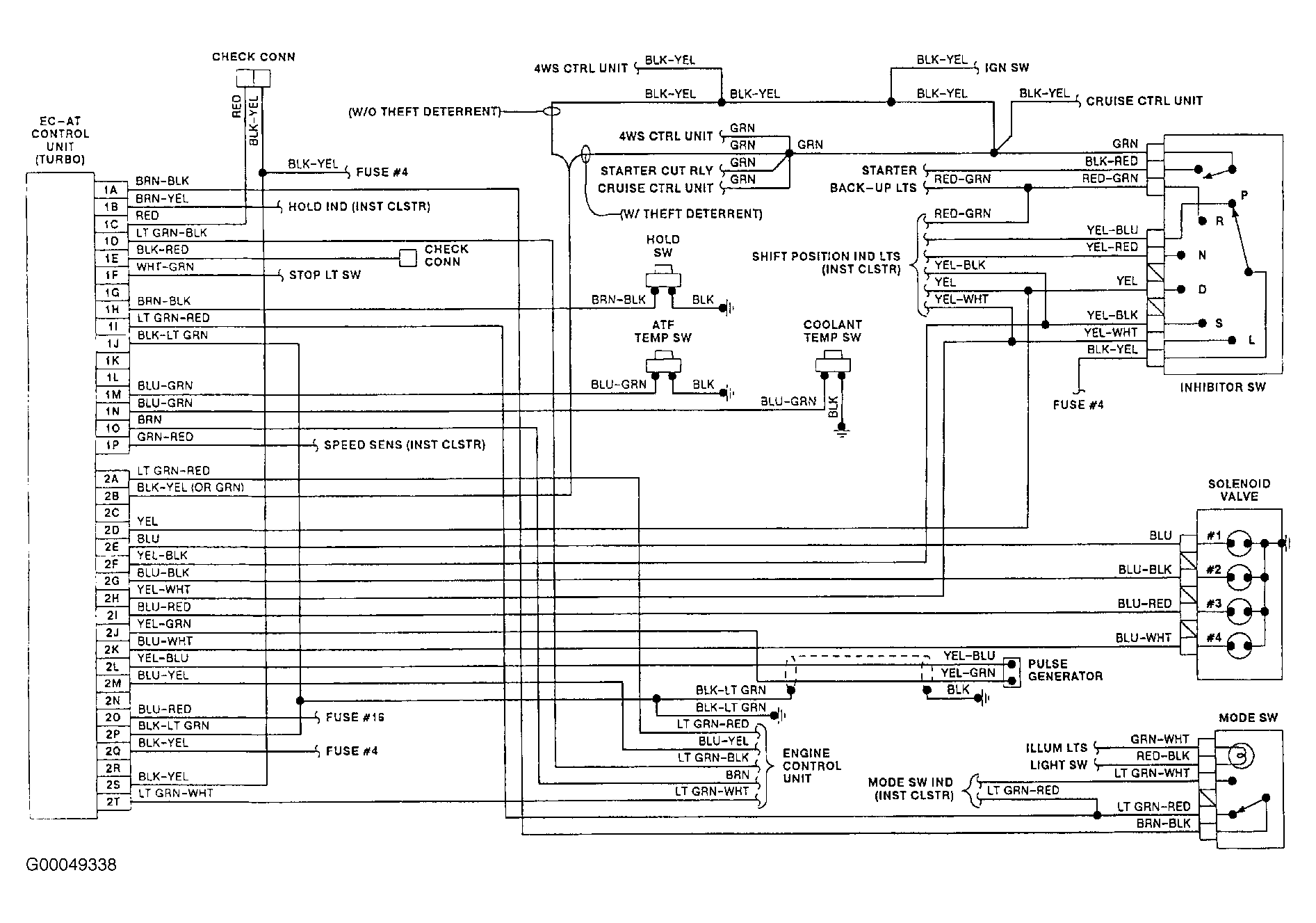

Fig 3: Wiring Diagram - 1988-89 MX-6 & 626 Turbo (G4A-EL)

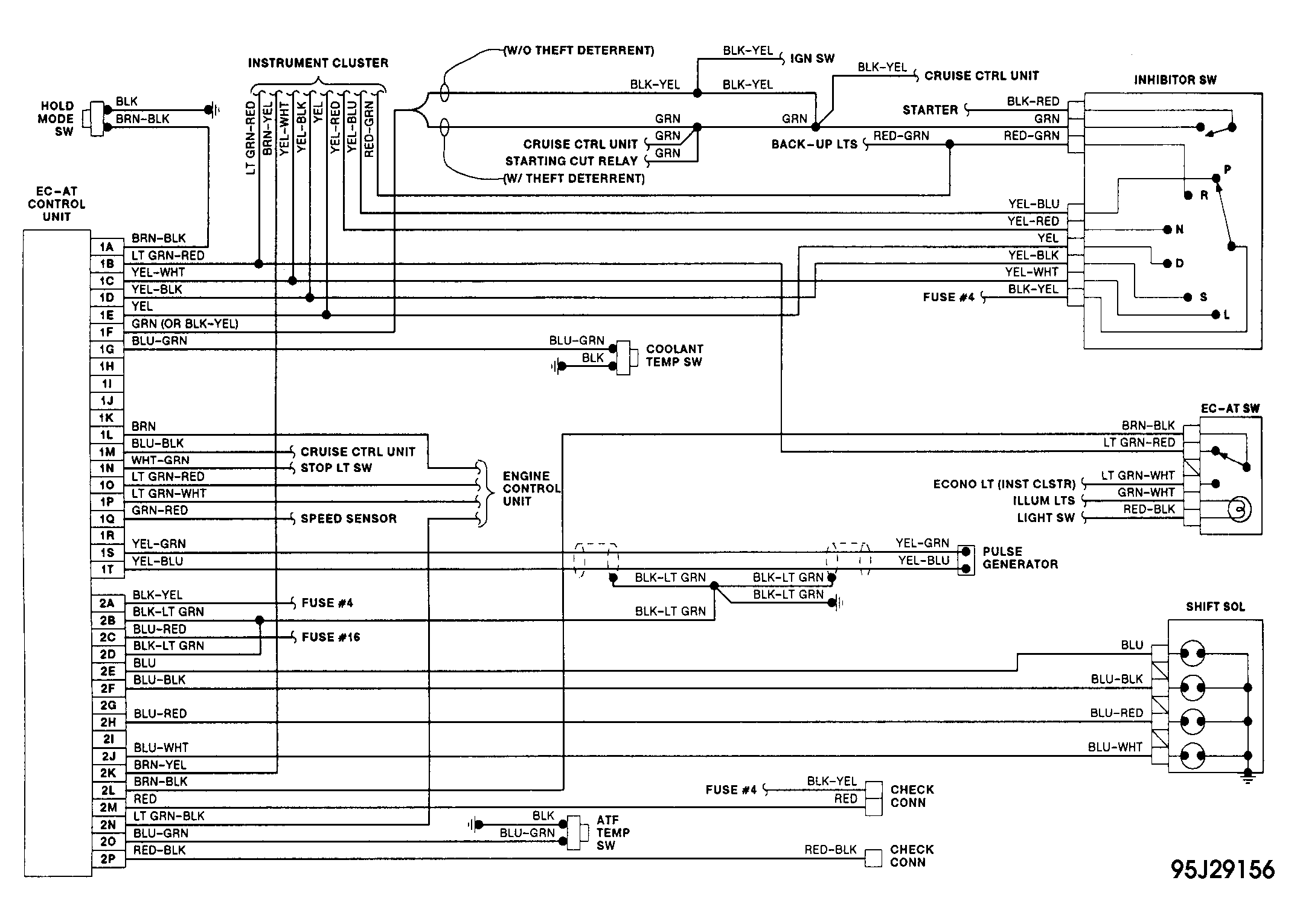

Fig 4: Wiring Diagram - 1988-89 Mazda 626 Non-Turbo

Courtesy of MAZDA MOTORS CORP.

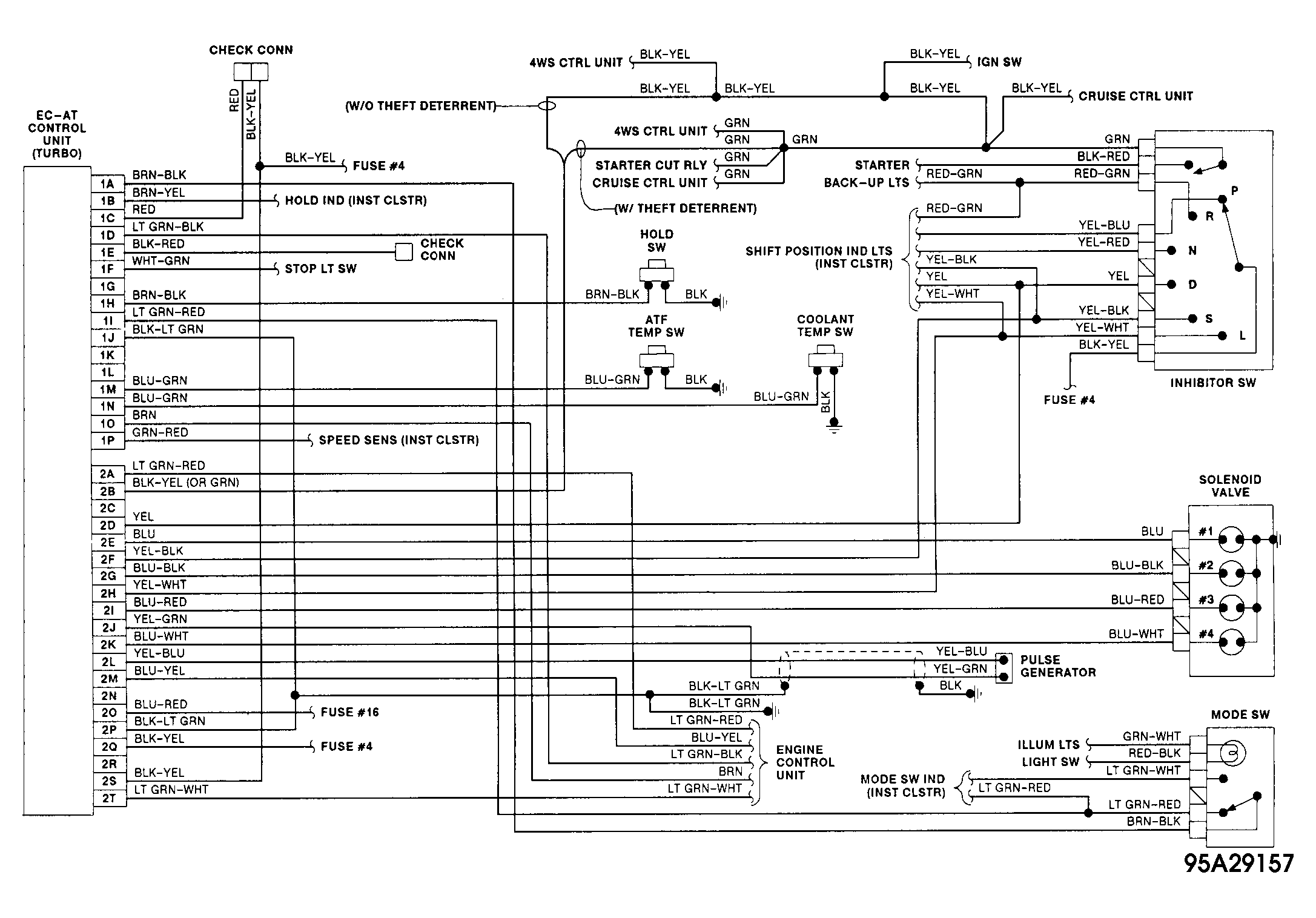

Fig 5: Wiring Diagram - 1990 Mazda 626 Turbo (G4AEL)

Courtesy of MAZDA MOTORS CORP.

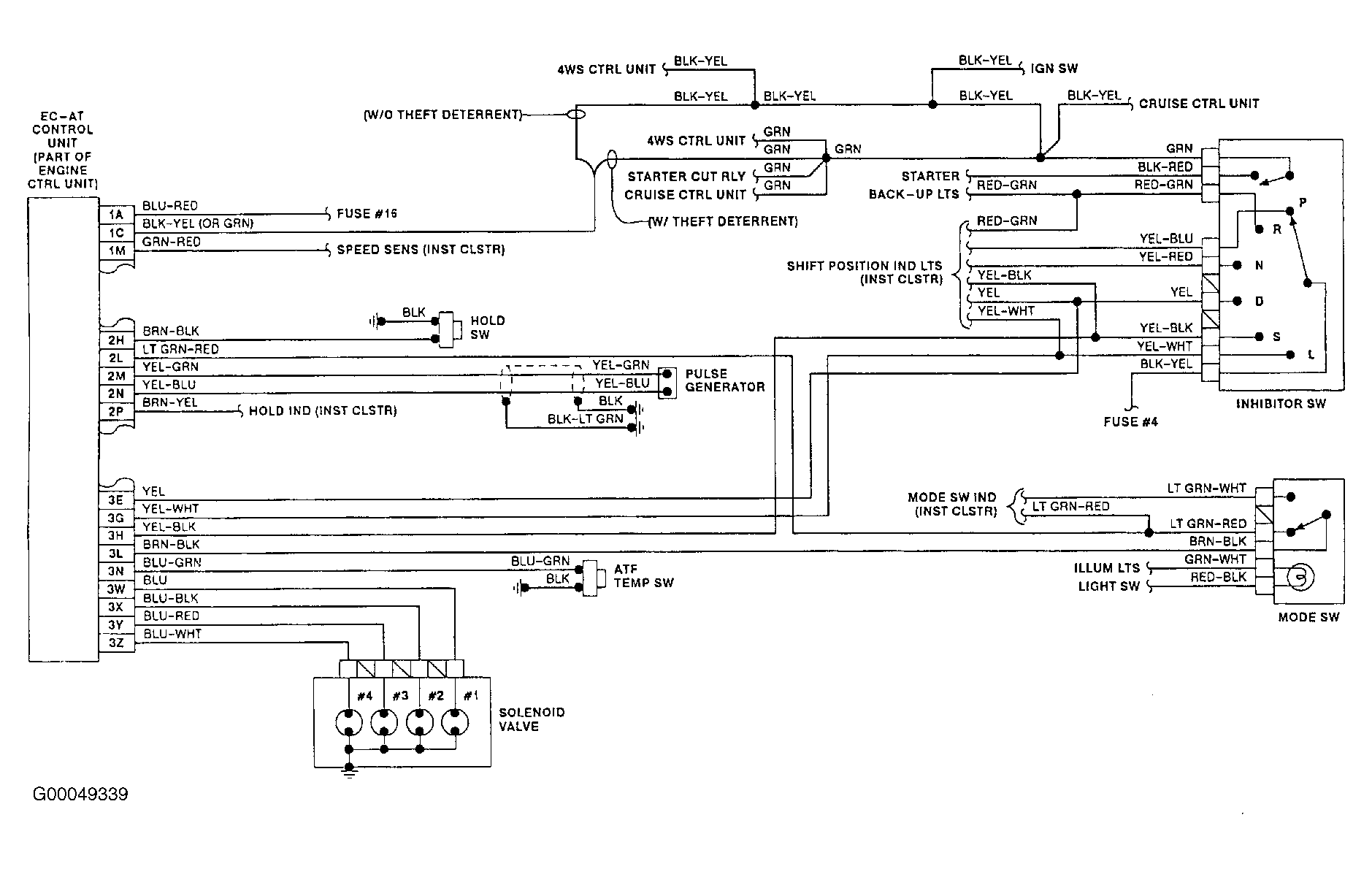

Fig 6: Wiring Diagram - 1990 Mazda 626 Non-Turbo

Courtesy of MAZDA MOTORS CORP.
