Component Operation

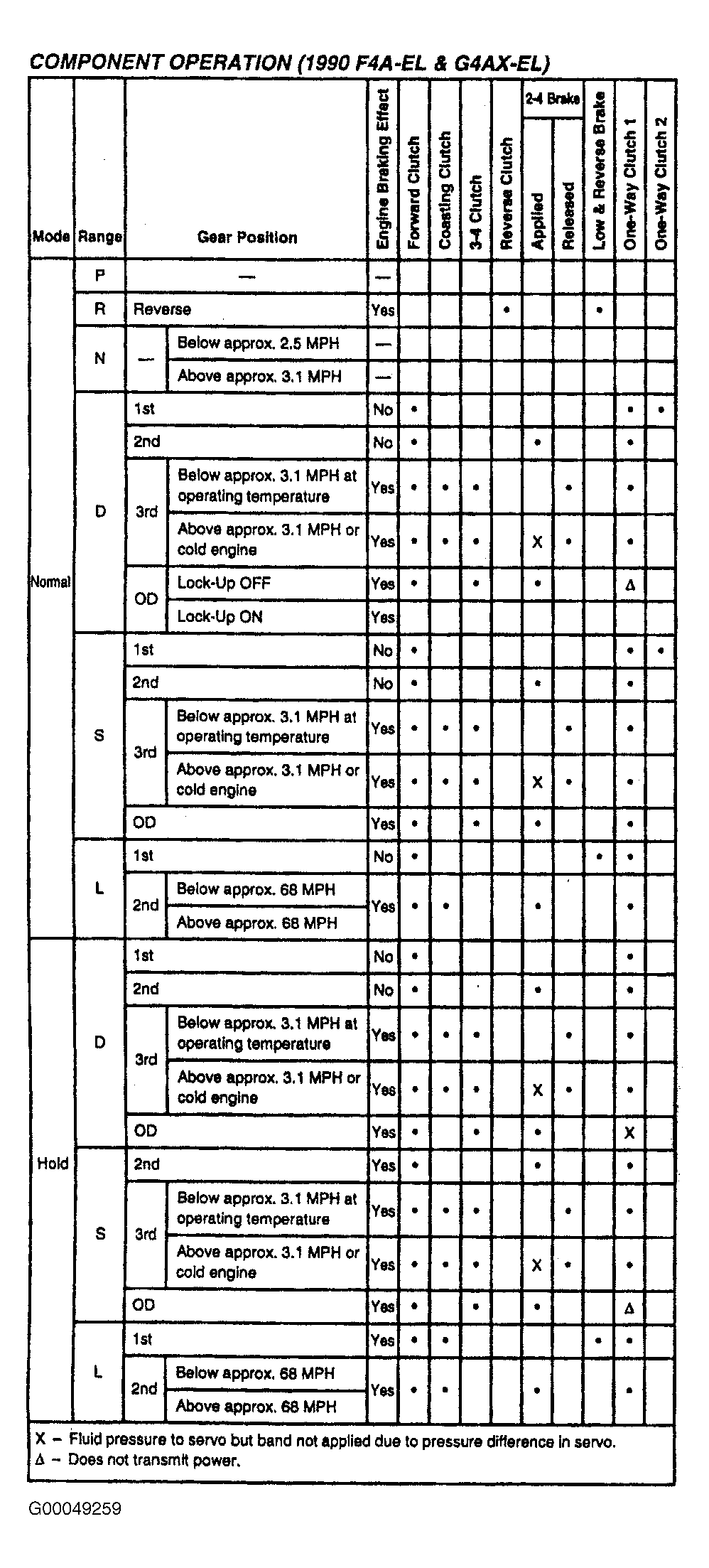

Fig 1: Component Operation (1 Of 3)
G00049259Courtesy of MAZDA MOTORS CORP.

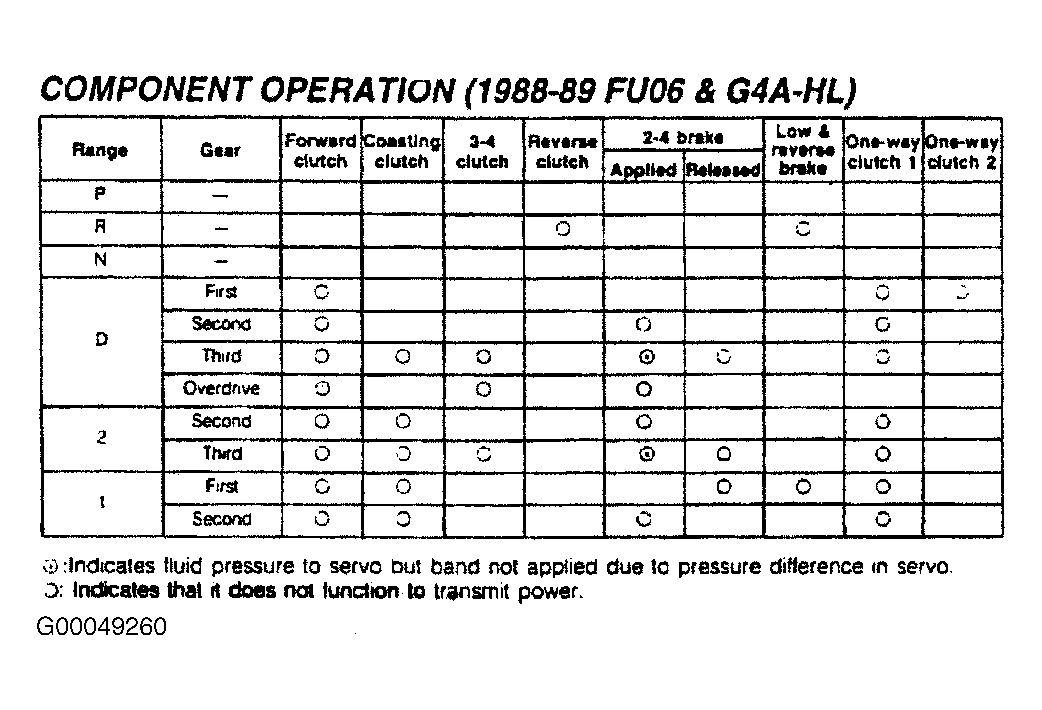

Fig 2: Component Operation (2 Of 3)
G00049260Courtesy of MAZDA MOTORS CORP.

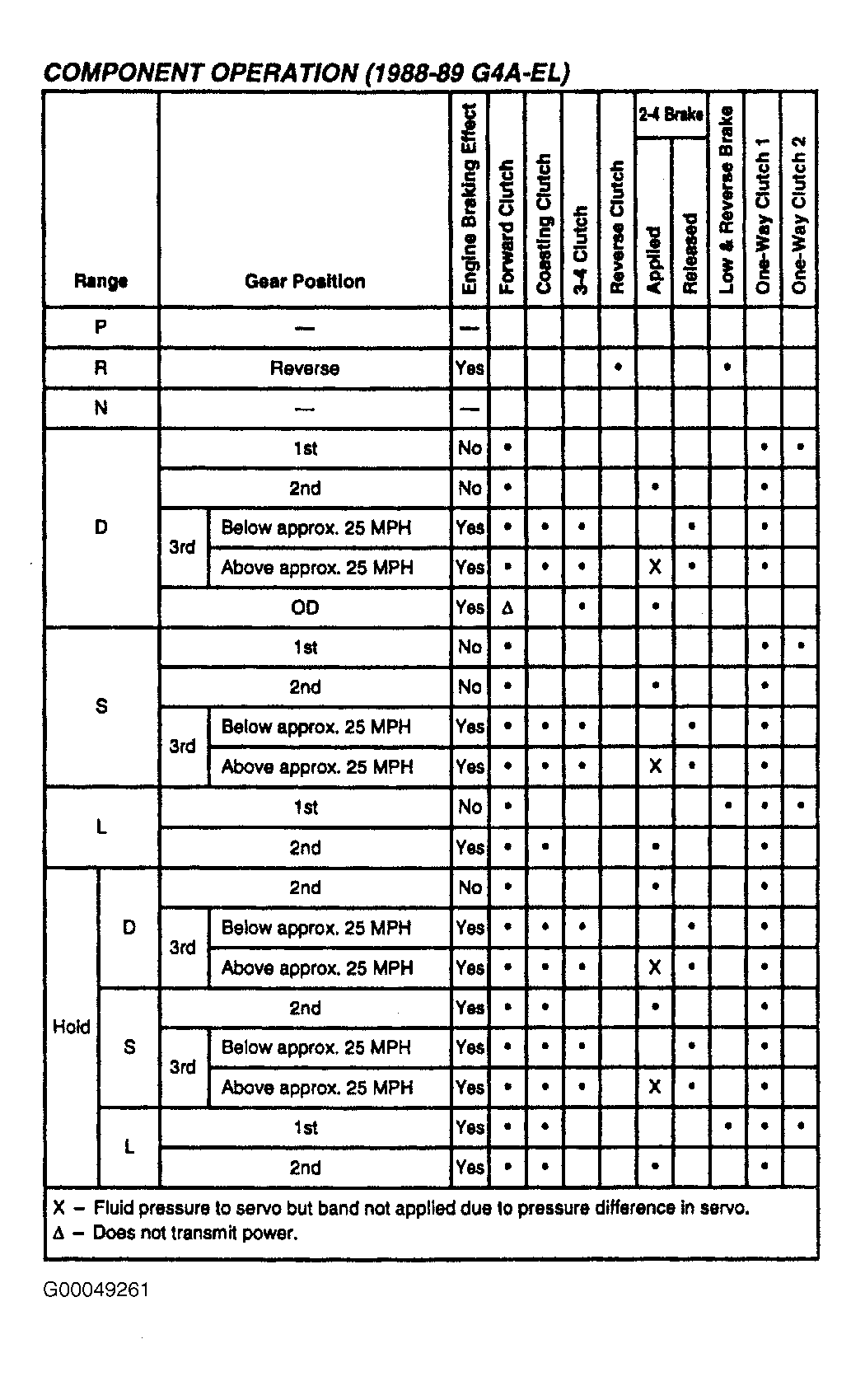

Fig 3: Component Operation (3 Of 3)
G00049261Courtesy of MAZDA MOTORS CORP.
