Diagnosis - F4A-El, FU06, G4A-El, G4AX-El & G4A-Hl
>>
Diagnosis
>>
Light & Digital Display Indication
Light & Digital Display Indication

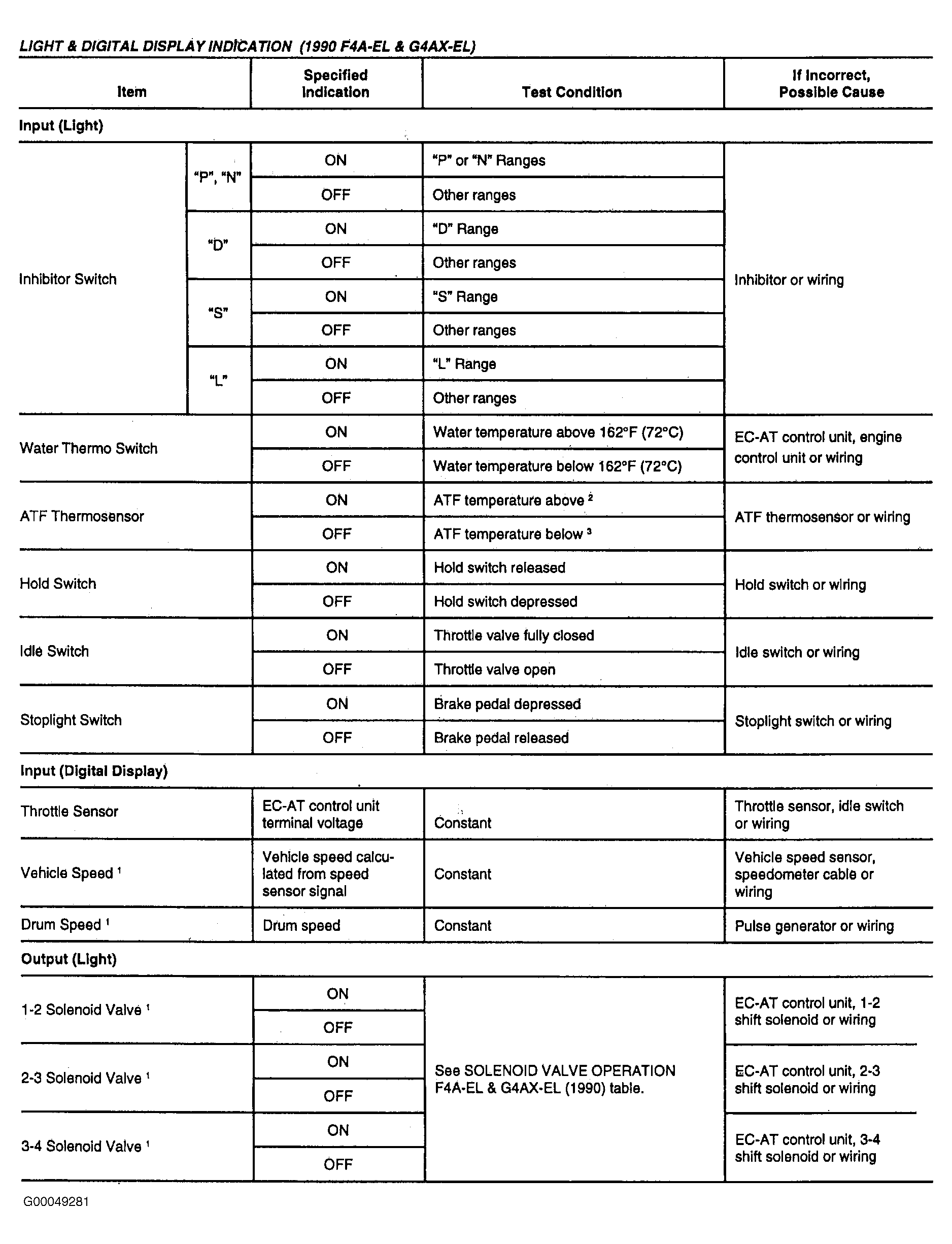

Fig 1: Light & Digital Display Indication (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

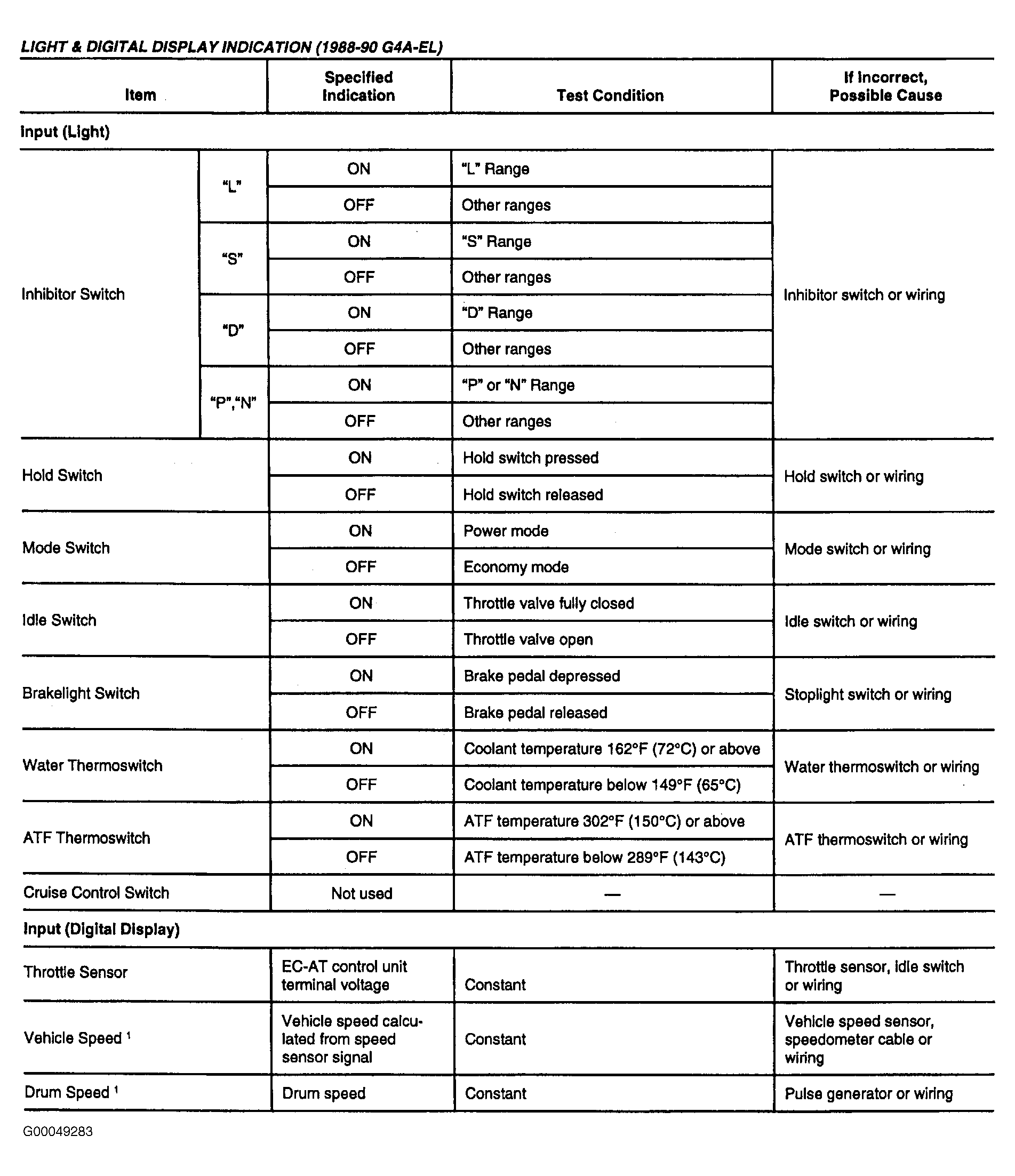

Fig 2: Light & Digital Display Indication (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

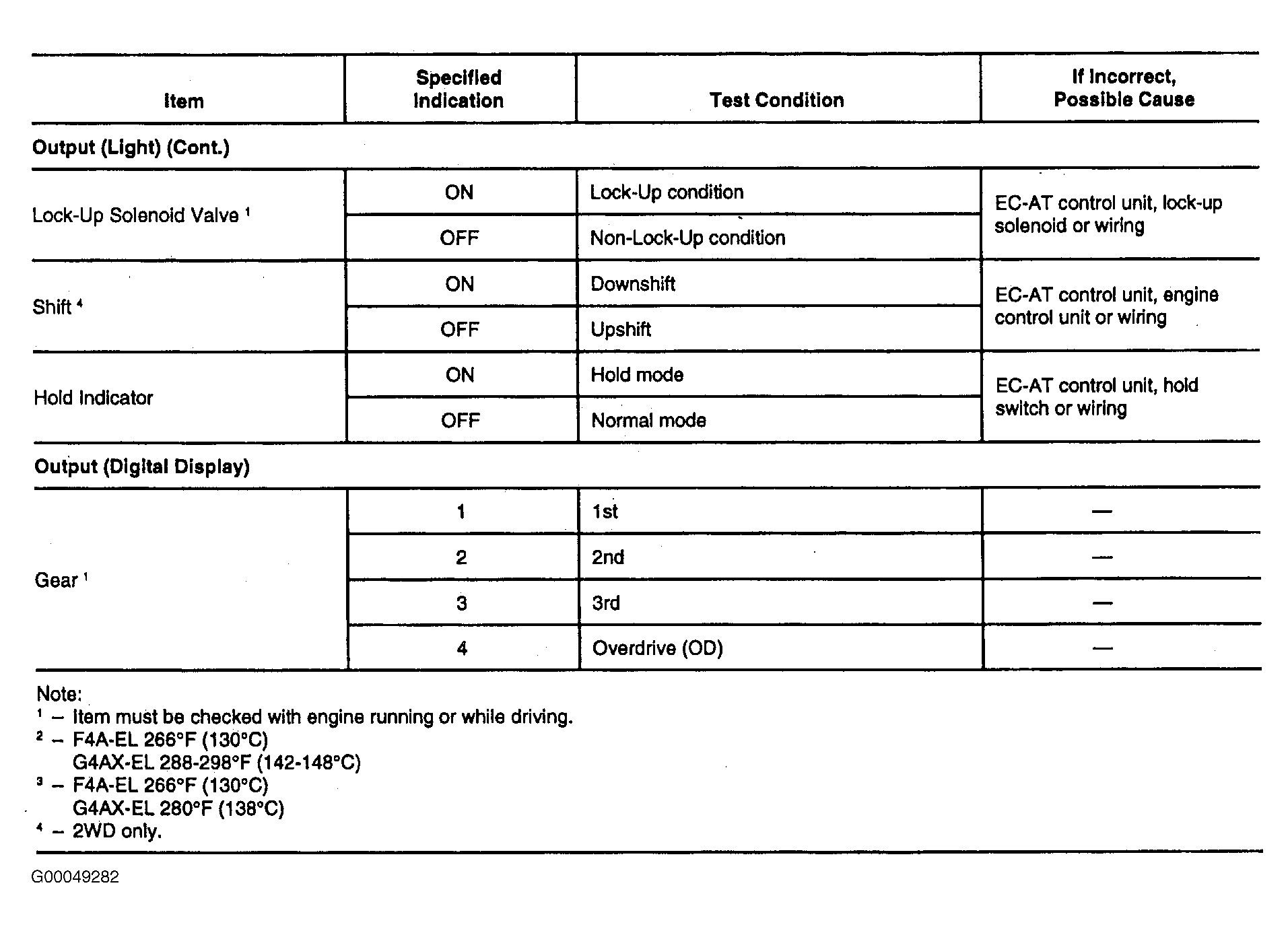

Fig 3: Light & Digital Display Indication (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

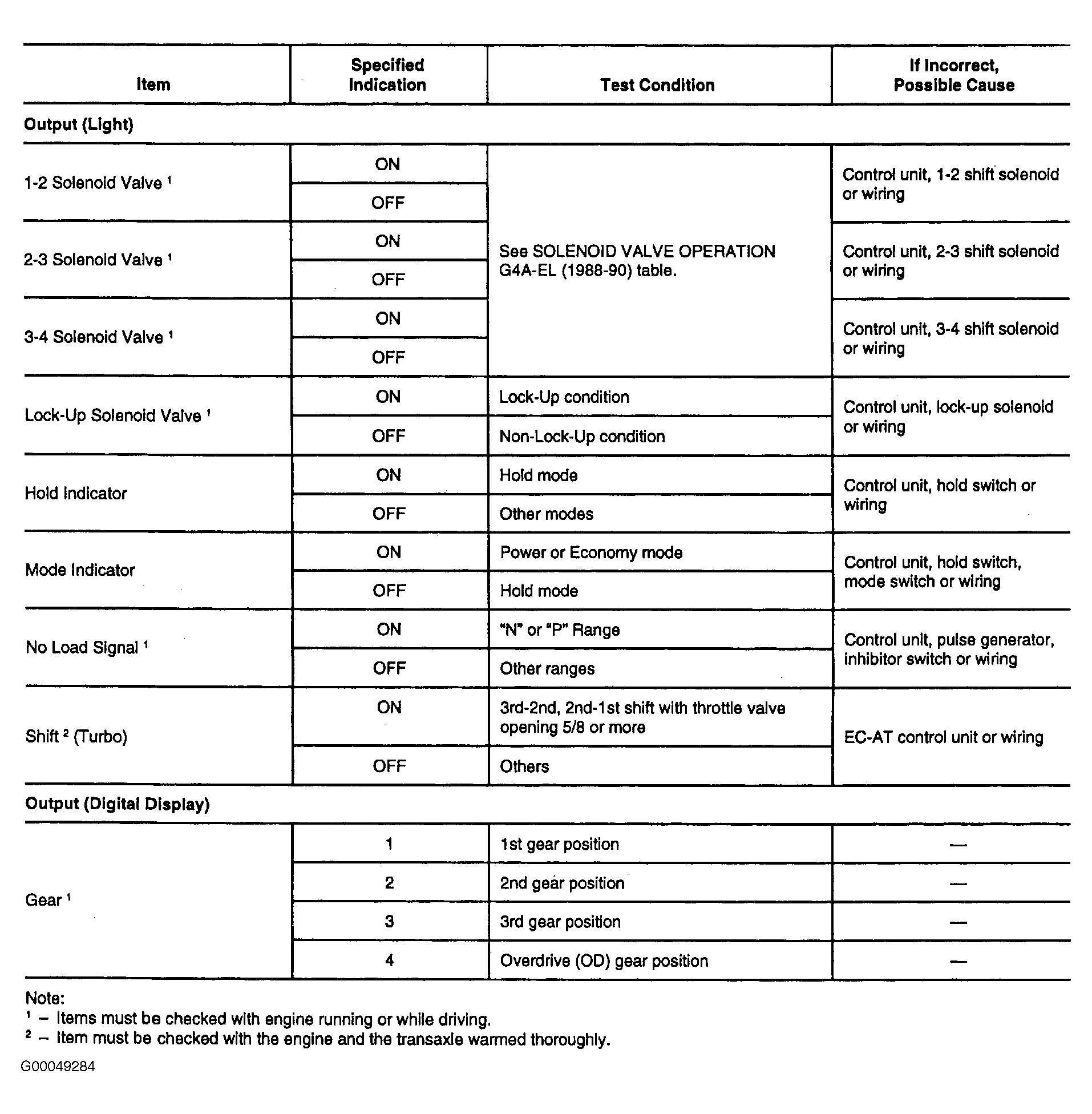

Fig 4: Light & Digital Display Indication (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
