Electrical Circuit

NOTE: For additional electrical circuit information, see WIRING DIAGRAMS at end of this article.

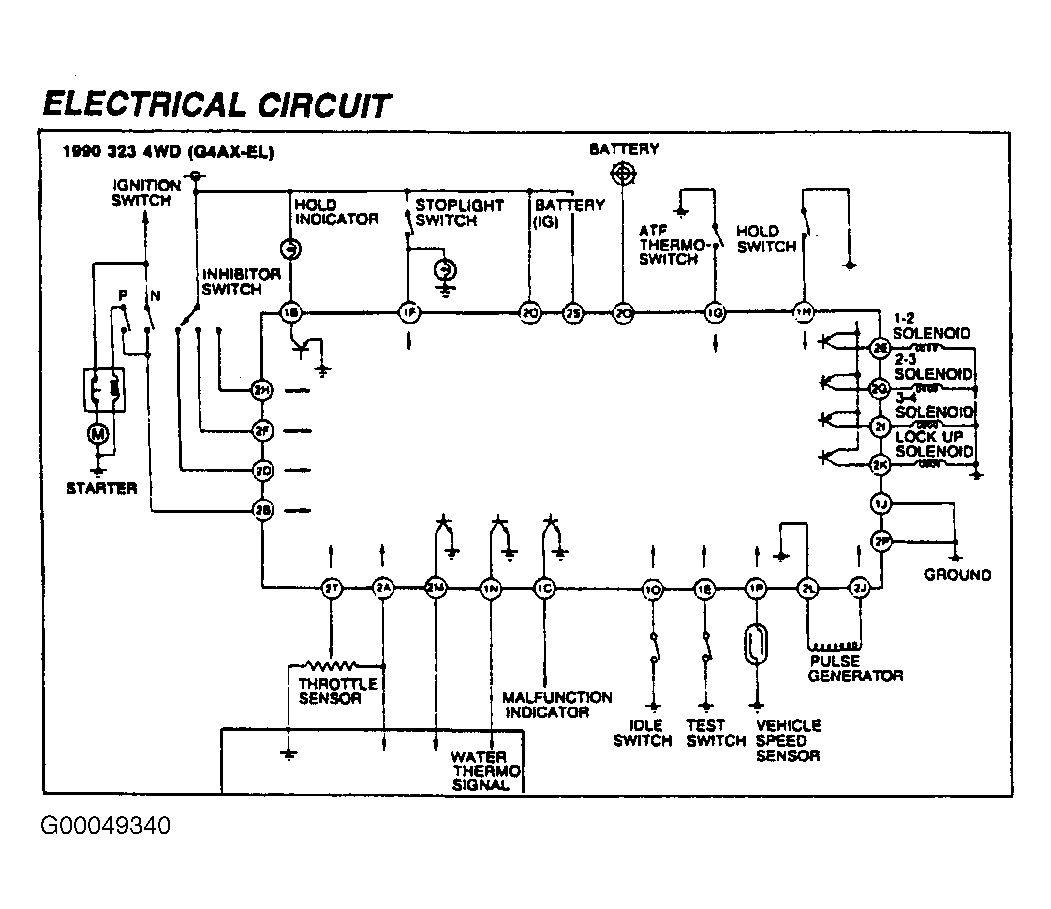

Fig 1: Electrical Circuit (1 Of 2)
G00049340Courtesy of MAZDA MOTORS CORP.

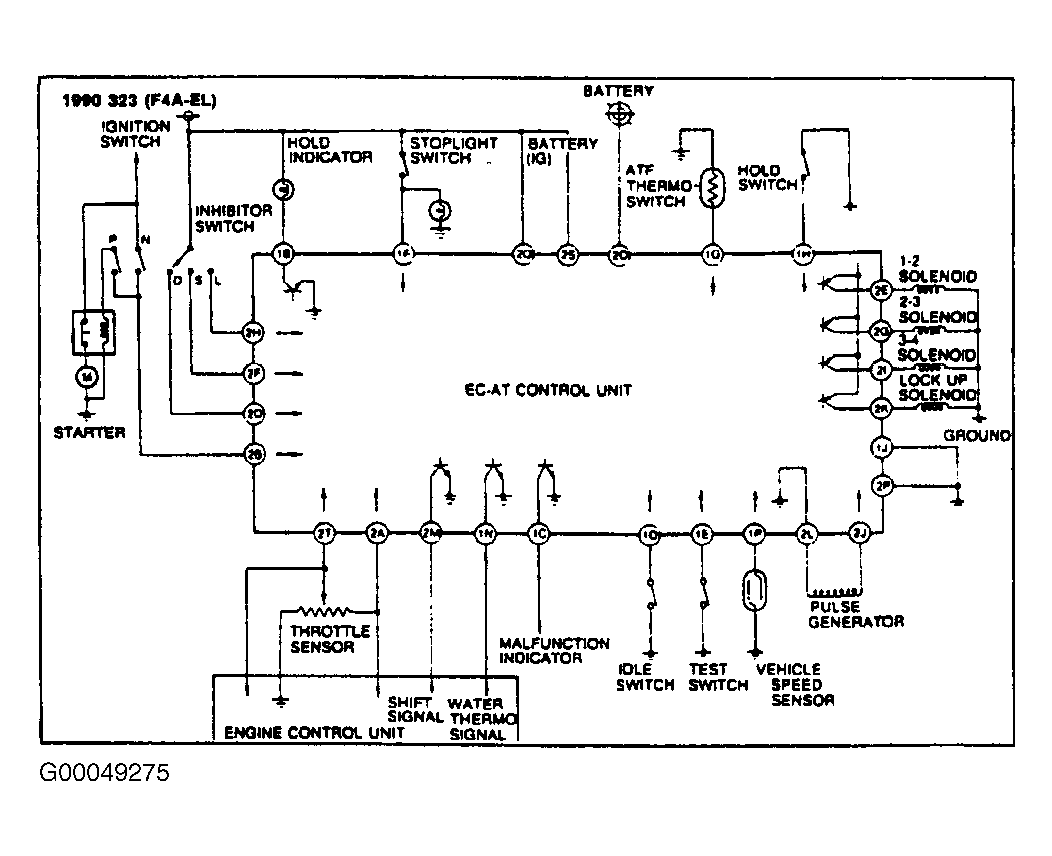

Fig 2: Electrical Circuit (2 Of 2)
G00049275Courtesy of MAZDA MOTORS CORP.
