Code No. 12 Throttle Sensor (F4A-EL & G4AX-EL)
Code No. 12 Throttle Sensor (F4A-EL & G4AX-EL)

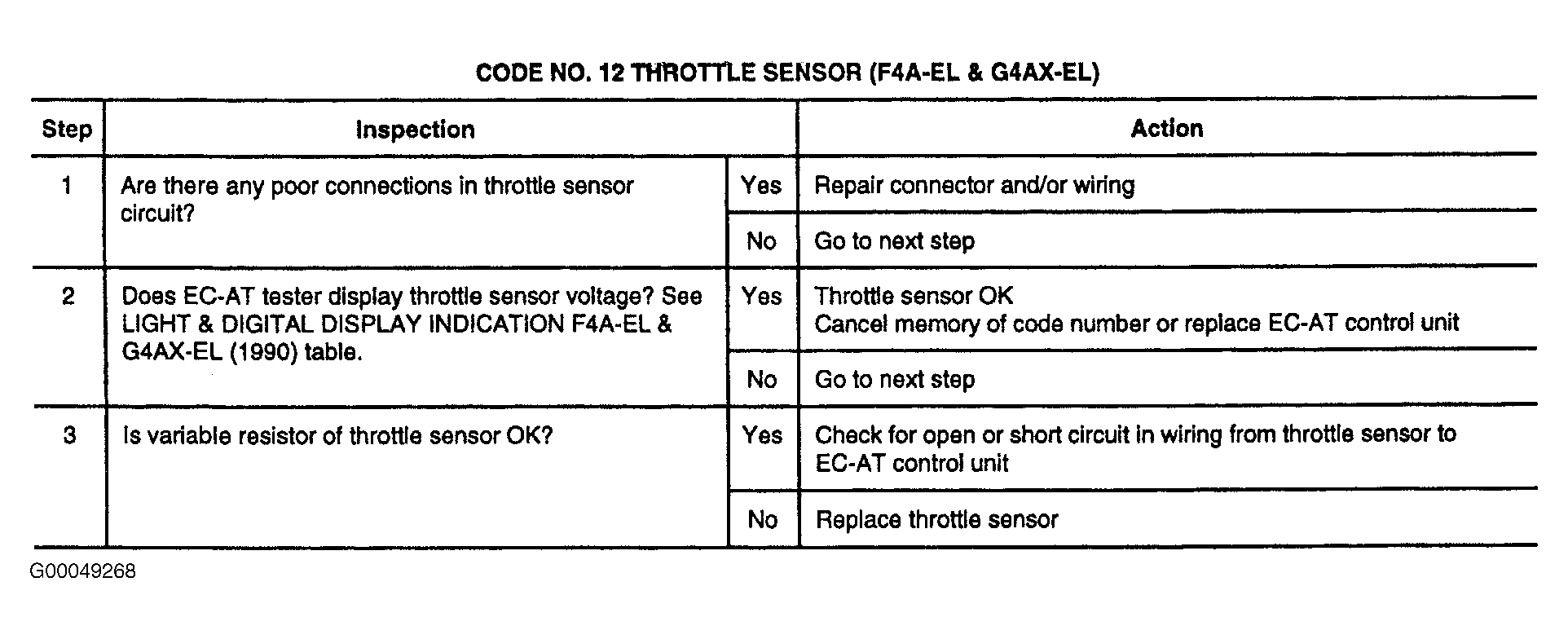

Fig 1: Code No. 12 Throttle Sensor (F4A-EL & G4AX-EL)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
