Solenoid Valve Operation

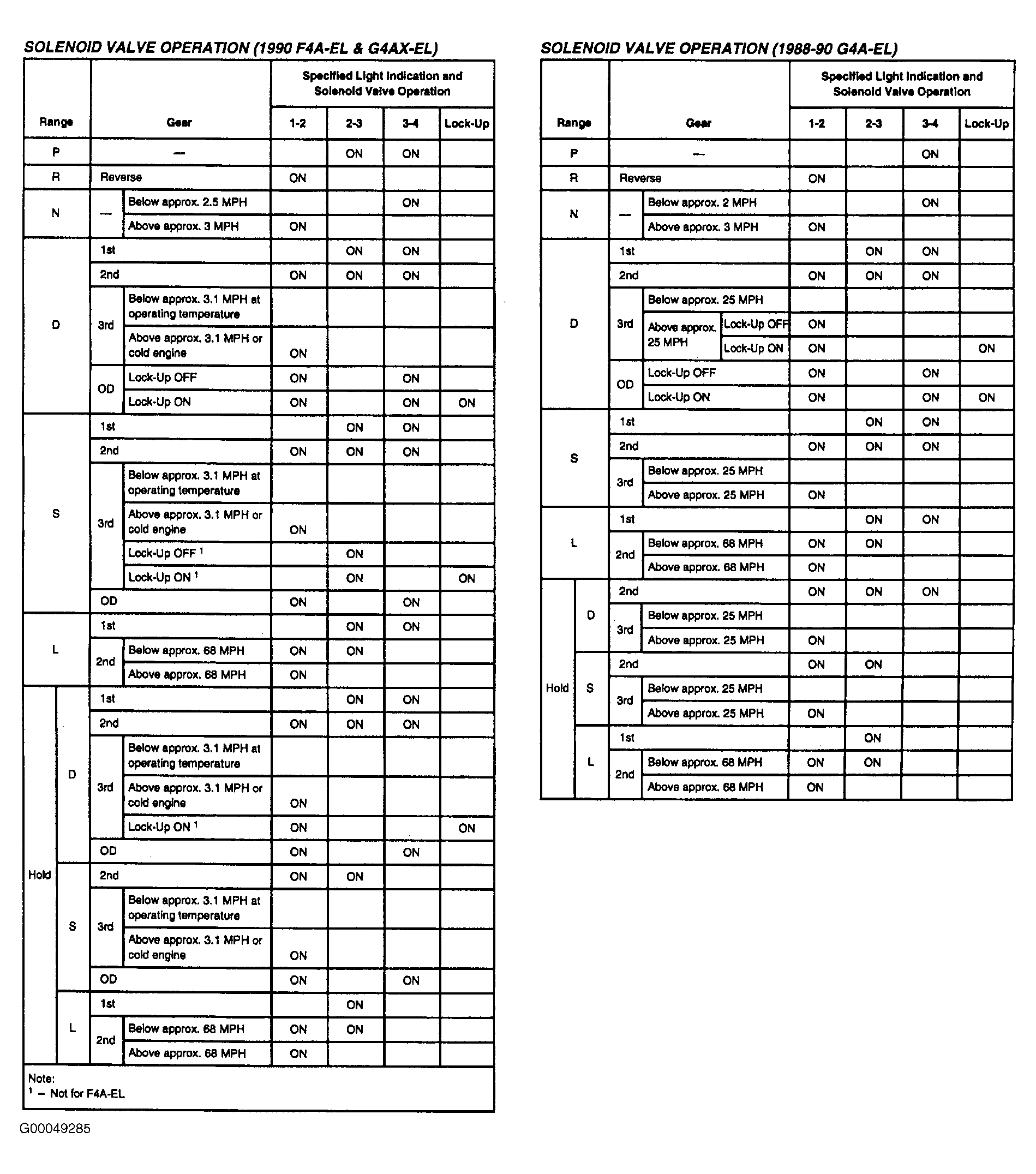

Solenoid valve operations are as indicated in SOLENOID VALVE OPERATION F4A-EL & G4AX-EL (1990) table and SOLENOID VALVE OPERATION G4A-EL (1988-90) table. See Fig 1.

Fig 1: Solenoid Valve Operation
G00049285Courtesy of MAZDA MOTORS CORP.
