Removal & Installation (All Others)

Raise and support front of vehicle. Remove wheels. Remove lower lock pin/guide bolt. See Fig 3 , Fig 4 , Fig 5 , Fig 6 and Fig 7 . Pivot caliper upward and support with rope. Remove brake pads. Replace pad if lining thickness is less than specified. See MINIMUM PAD LINING SPECIFICATIONS (FRONT) table. To install, reverse removal procedure.

Fig 1: Exploded View of Front Disc Brake (Protege & 323)

Courtesy of MAZDA MOTORS CORP.

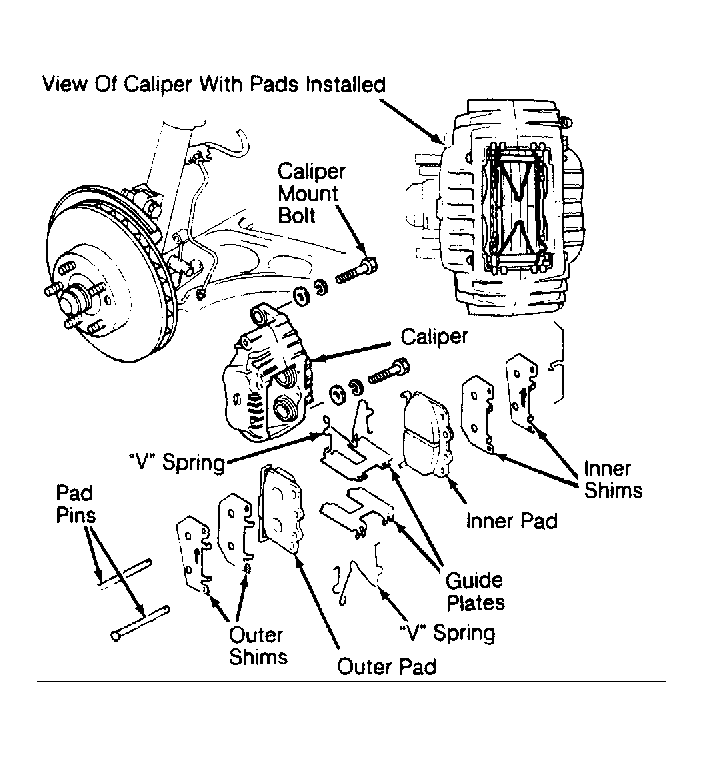

Fig 2: Exploded View of Front Disc Brake (RX7 W/4-Piston)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Exploded View of Front Disc Brake (Pickup)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Exploded View of Front Disc Brake (Miata Shown, MPV Similar)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Exploded View of Front Brake Disc (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Exploded View of Front Disc Brake (RX7 w/Single-Piston

Courtesy of MAZDA MOTORS CORP.

Fig 7: Exploded View of Front Disc Brake (929)

Courtesy of MAZDA MOTORS CORP.
