Disassembly & Reassembly

Disassembly and reassembly are the same as for direct clutch. Number of components and layout will vary. See Fig 1 and Fig 2 . Check operation of clutch after reassembly. See Figure .

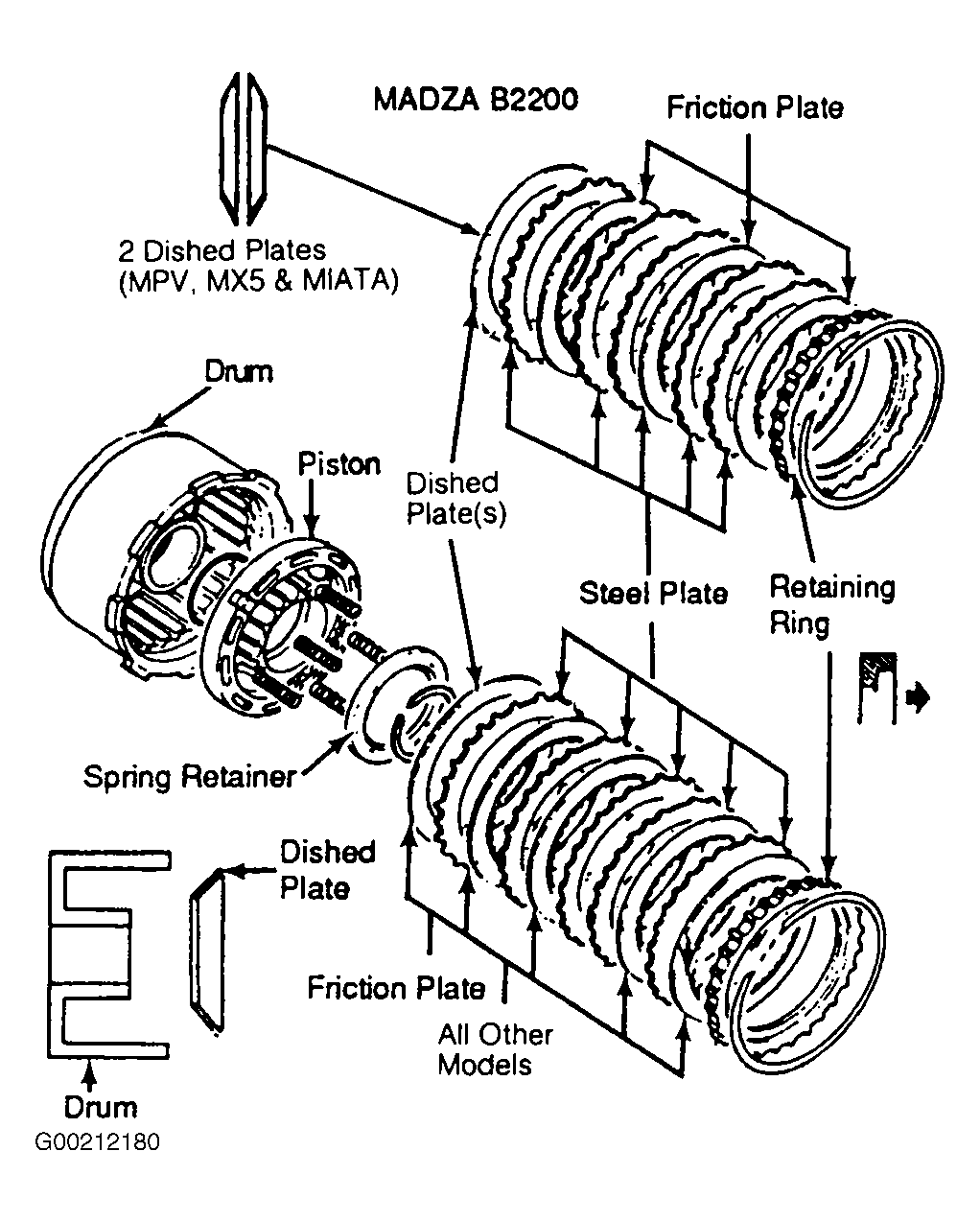

Fig 1: Exploded View Of Front Clutch

Courtesy of MAZDA MOTORS CORP.

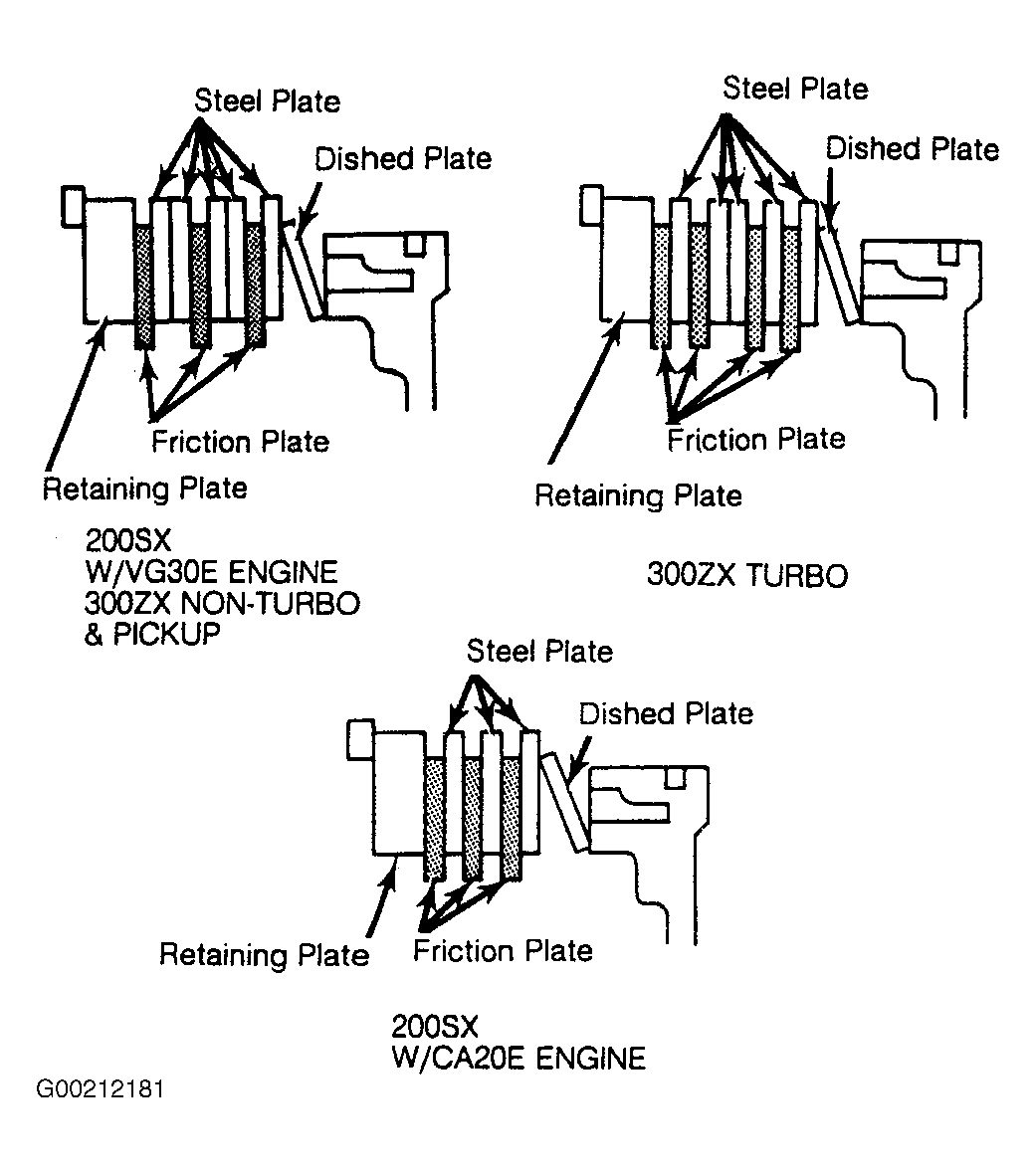

Fig 2: Front Clutch Plate Layout (Nissan)

Courtesy of MAZDA MOTORS CORP.
