Instrument Cluster
NOTE:
When installing instrument cluster, ensure speedometer cable engages properly with speedometer head.

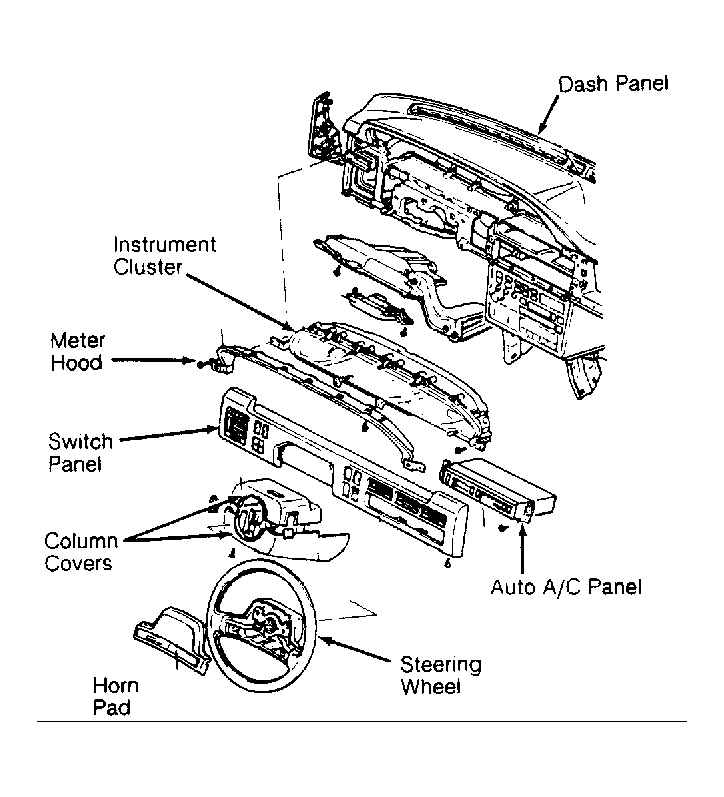

- Pry off horn pad ornament. Remove steering wheel and column covers. Remove 7 switch panel screws and switch panel. See Fig 1 .
- Remove 7 meter hood screws and meter hood. Remove 6 screws and instrument cluster. To install, reverse removal procedure.
