Wiring Diagrams

WARNING: This page is about a different car, the 1991 Mazda RX-7, 1991 Mazda MX-5 Miata, 1990 Mazda RX-7, and 1990 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

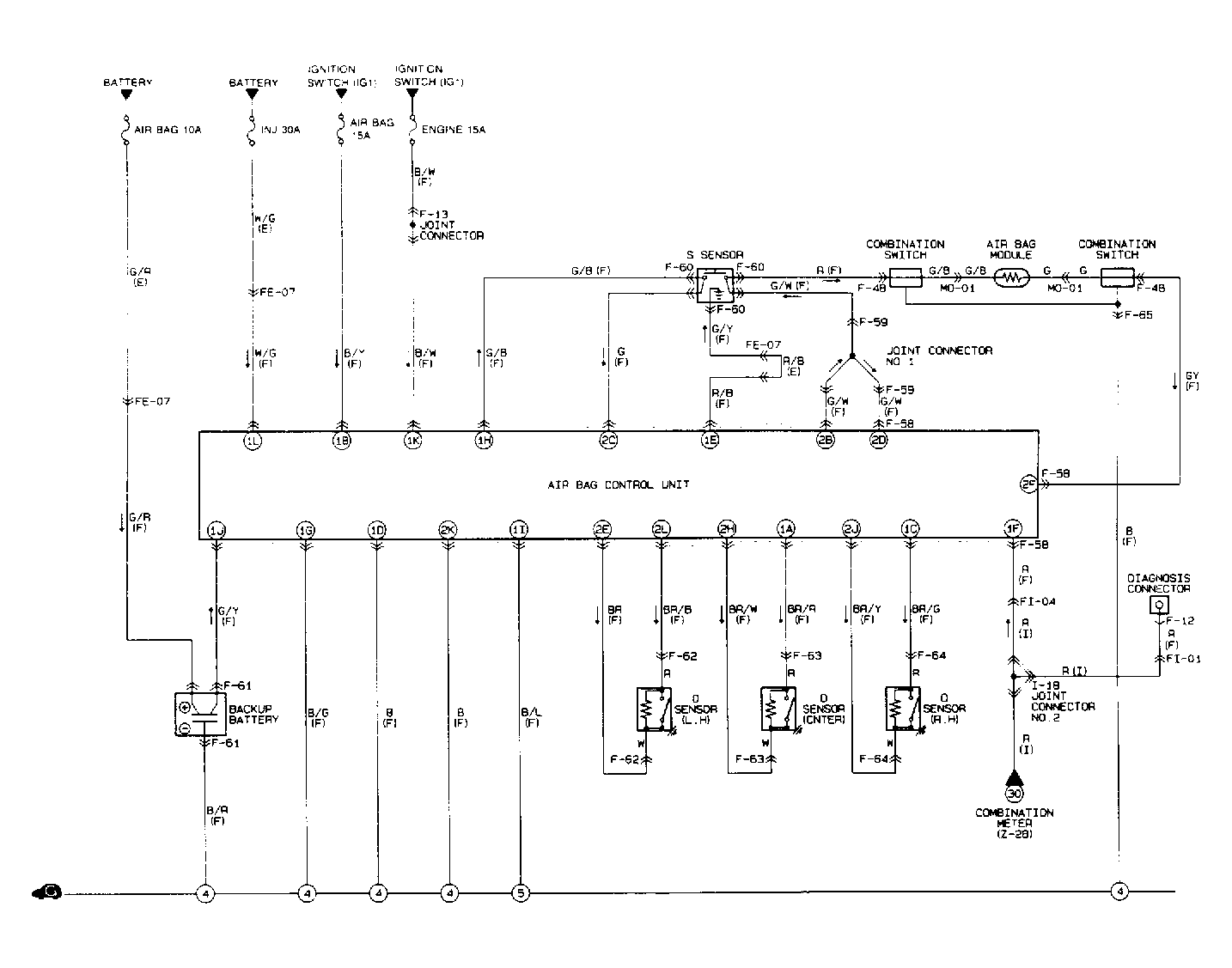

Fig 1: Air Bag System Wiring Diagram (1990 Miata)

Courtesy of MAZDA MOTORS CORP.

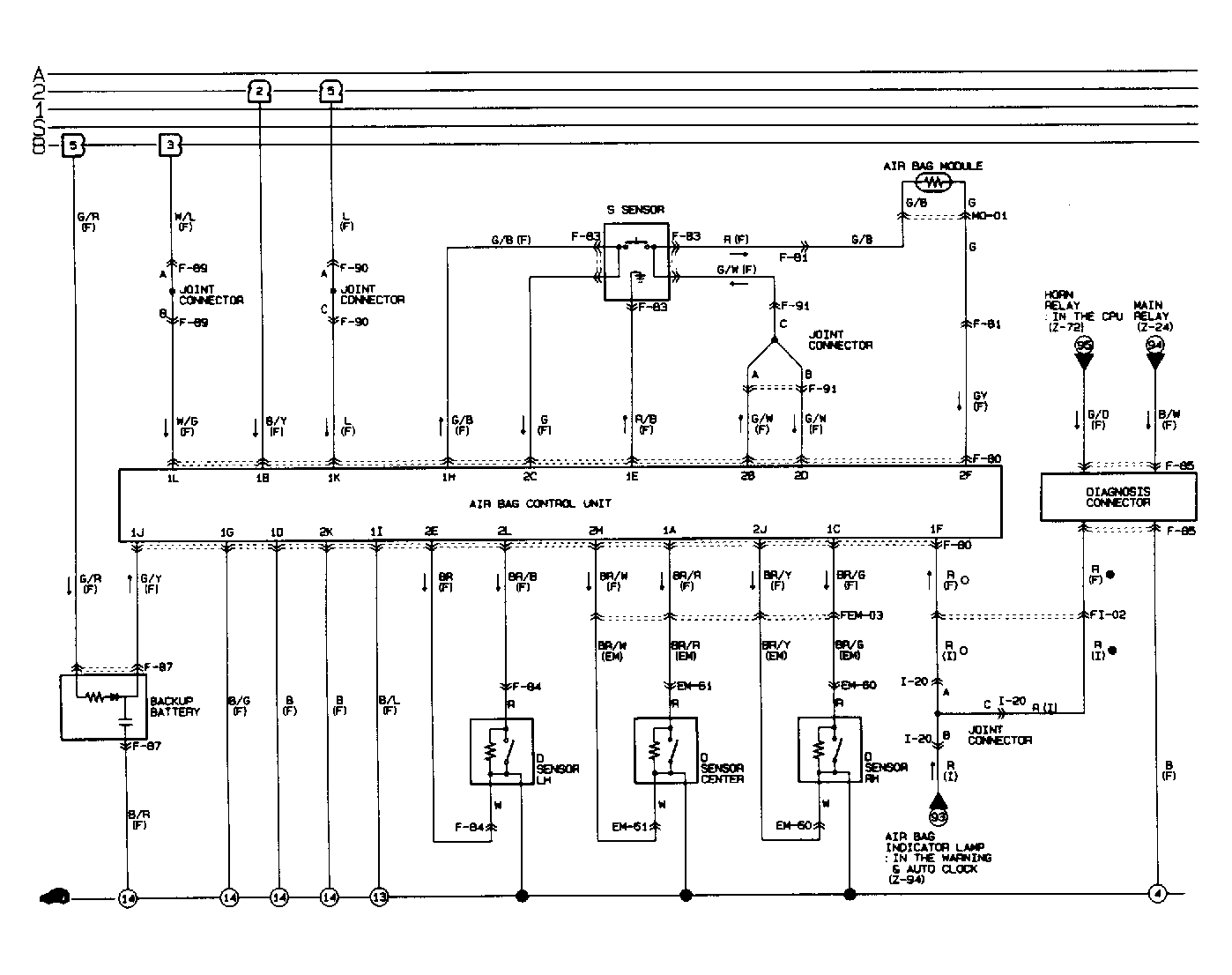

Fig 2: Air Bag System Wiring Diagram (1990 RX7)

Courtesy of MAZDA MOTORS CORP.

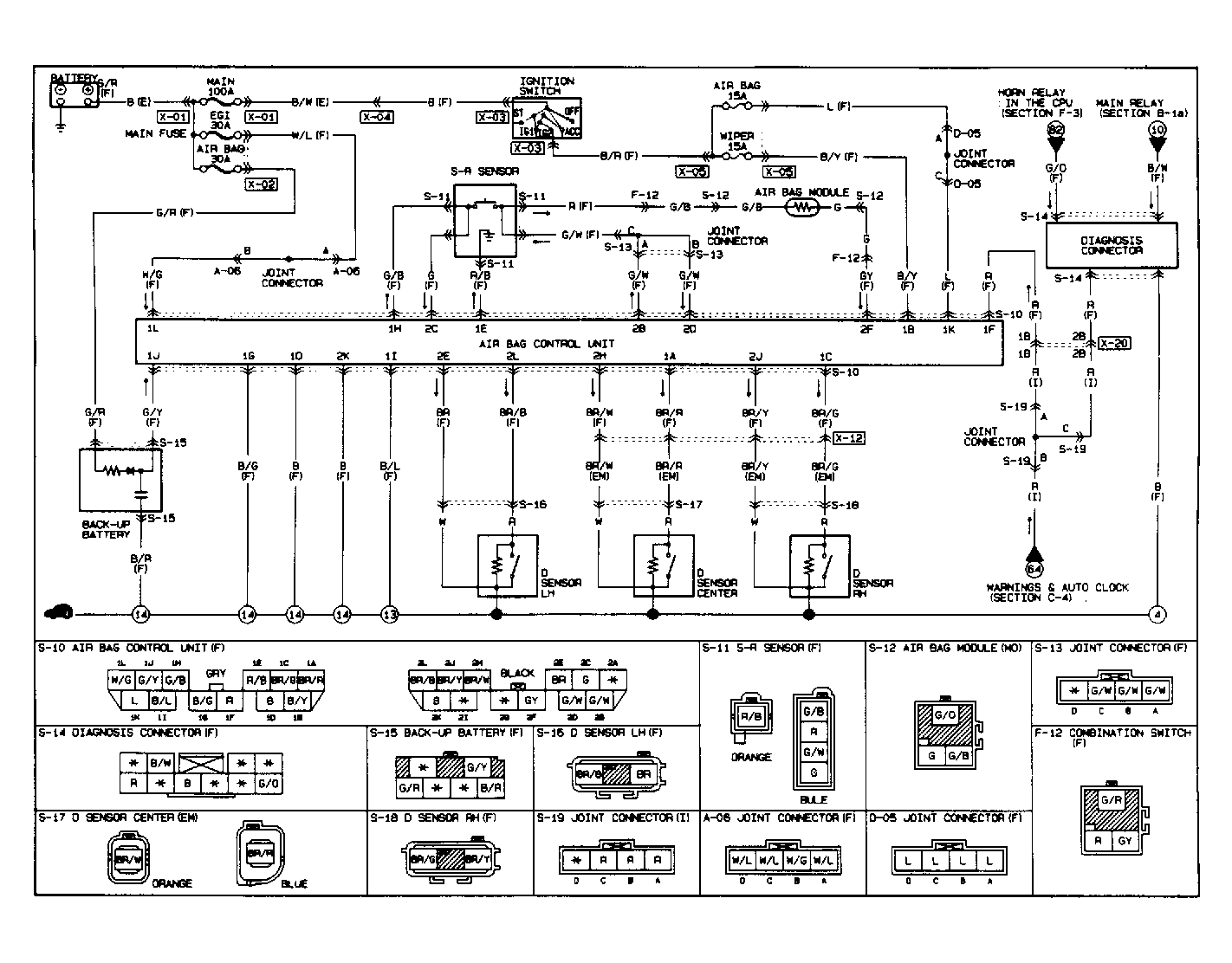

Fig 3: Air Bag System Wiring Diagram (1991 Miata)

Courtesy of MAZDA MOTORS CORP.

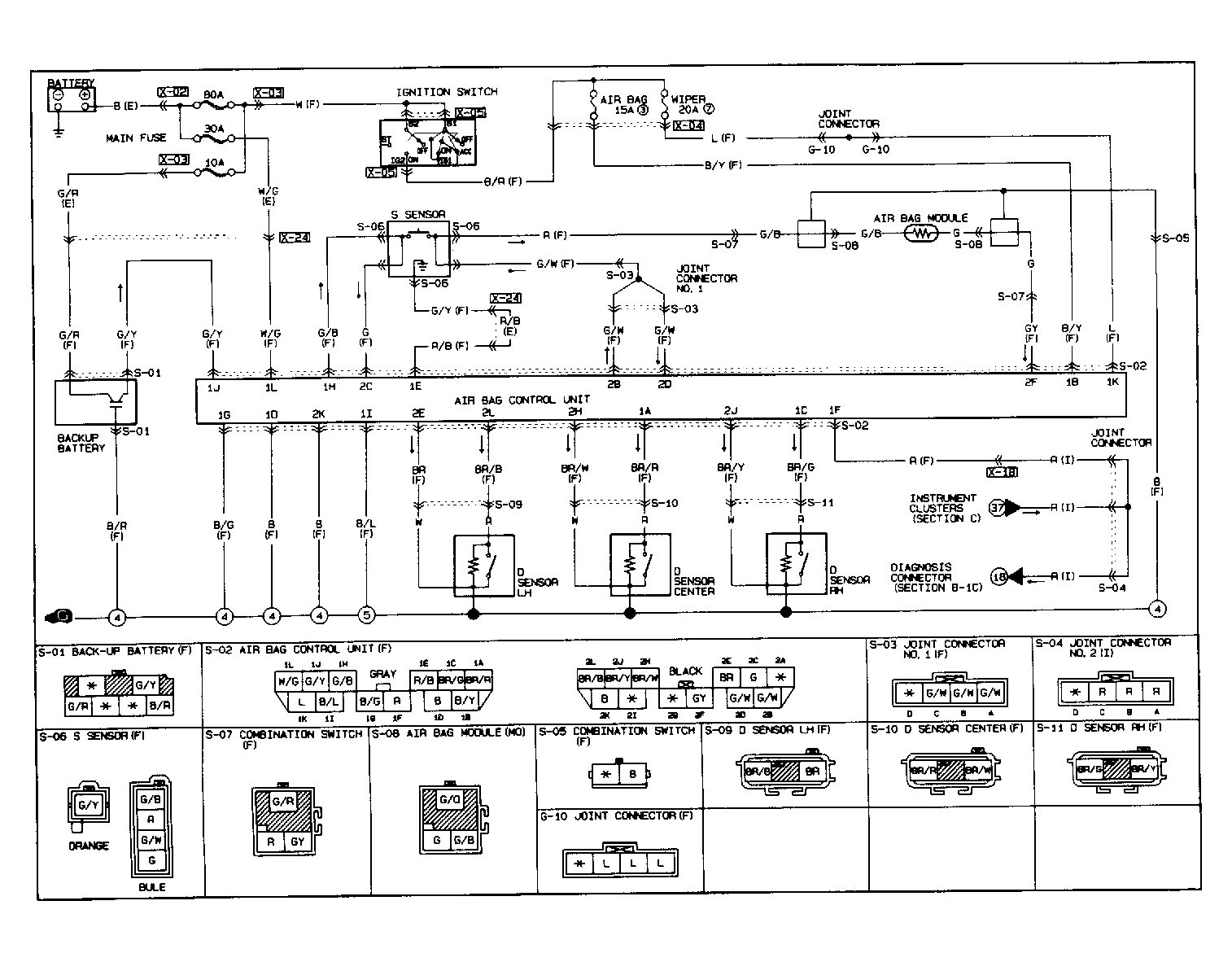

Fig 4: Air Bag System Wiring Diagram (1991 RX7)

Courtesy of MAZDA MOTORS CORP.
