Solenoid Valve 1-2, 2-3, 3-4 Shift & Lock-Up

Disconnect solenoid valve connector and check for 13-27 ohms resistance between the following terminals and ground: 1-2 solenoid = A, 2-3 solenoid = B, 3-4 solenoid = C and lock-up solenoid = D on 323. On 626 1-2 solenoid = F, 2-3 solenoid = C & E, 3-4 solenoid = B, lock-up solenoid valve = D. See Fig 1and Fig 2 . If not as specified, replace solenoid.

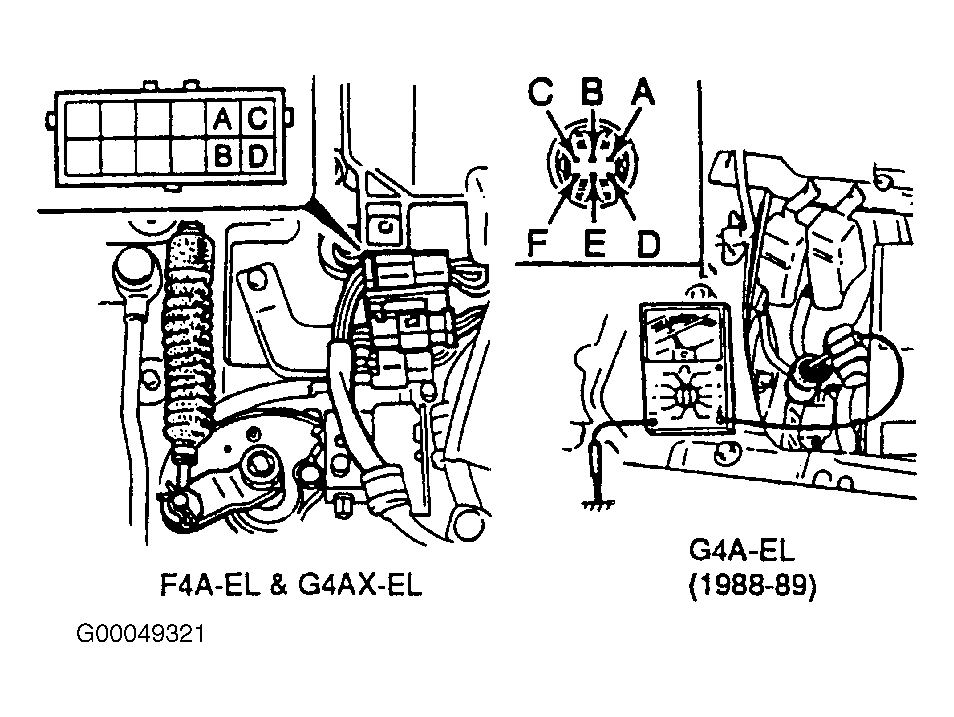

Fig 1: Checking Solenoid Valves

Courtesy of MAZDA MOTORS CORP.

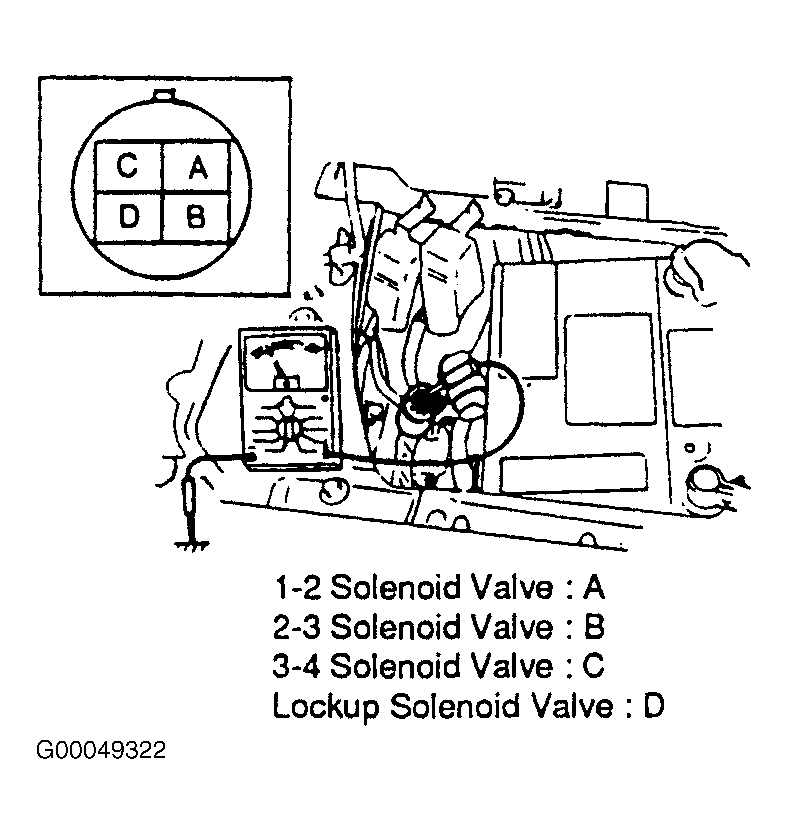

Fig 2: Checking Solenoid (1990 626)

Courtesy of MAZDA MOTORS CORP.
