Home >> Mazda >> 1989 >> MX-6 DX, Automatic >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Suspension - Electronic >> Wiring Diagram

Suspension - Electronic: Wiring Diagram

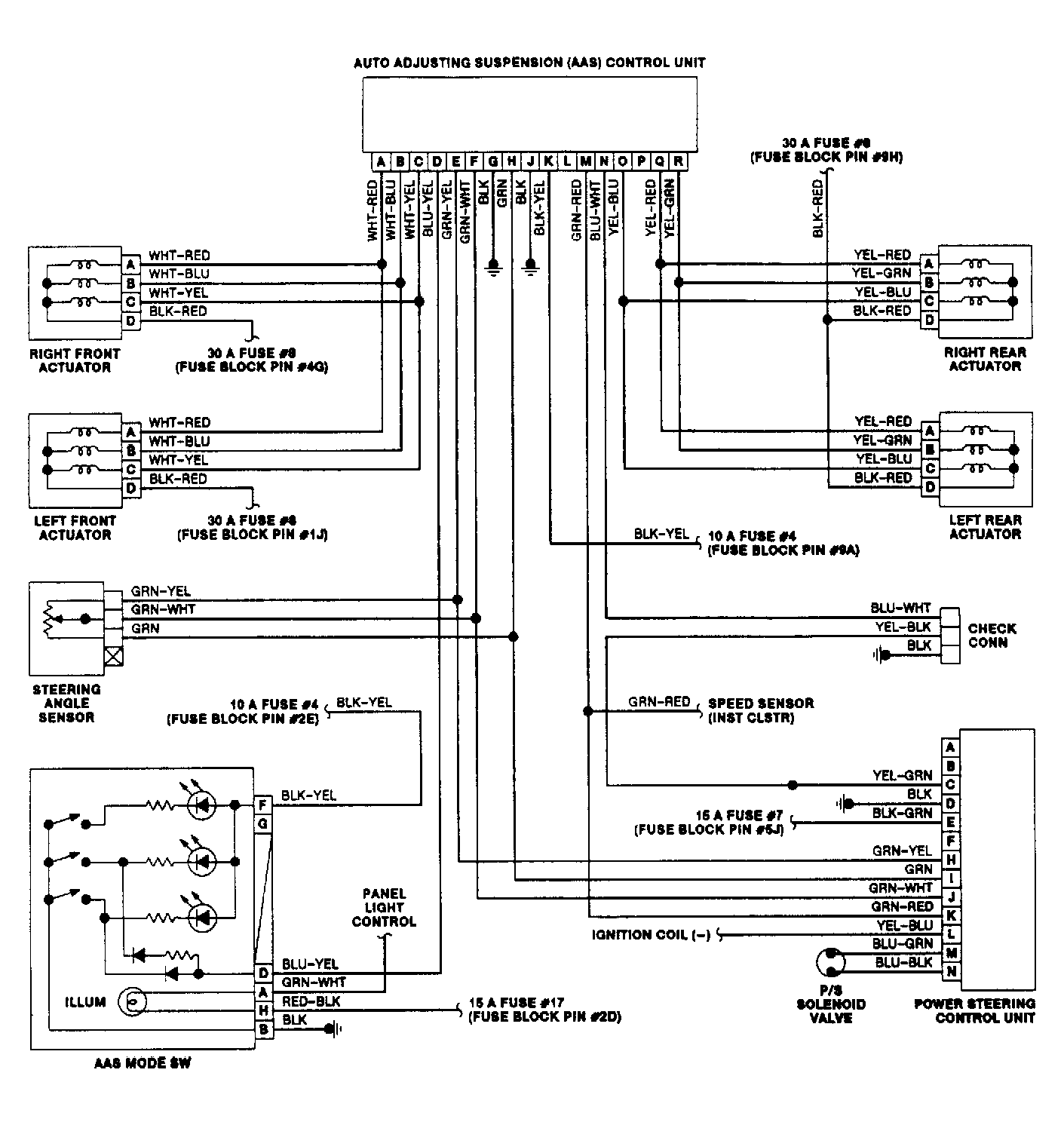

Fig 1: Wiring Diagram

G90B09925
