Using Trouble Shooting Chart

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1994 Mazda MX-5 Miata, 1992 Mazda MX-5 Miata, 1992 Mazda MPV, 1992 Mazda B2200, and 1991 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Use trouble shooting chart to diagnose a problem by symptom. See TROUBLE SHOOTING CHART DIRECTORY .

TROUBLE SHOOTING CHART DIRECTORY

Application		Refer to:
"B" Series Trucks (1991-93)		Figs. Fig 1 -7
Miata
1990-93		Fig. Fig 4
1994		Fig. Fig 10
MPV (1989-94)		Fig. Fig 7

Fig 1: NA4A-HL 1991-93 "B" Series Trucks Trouble Shooting (1 of 3)

G95C20554

Courtesy of MAZDA MOTORS CORP.

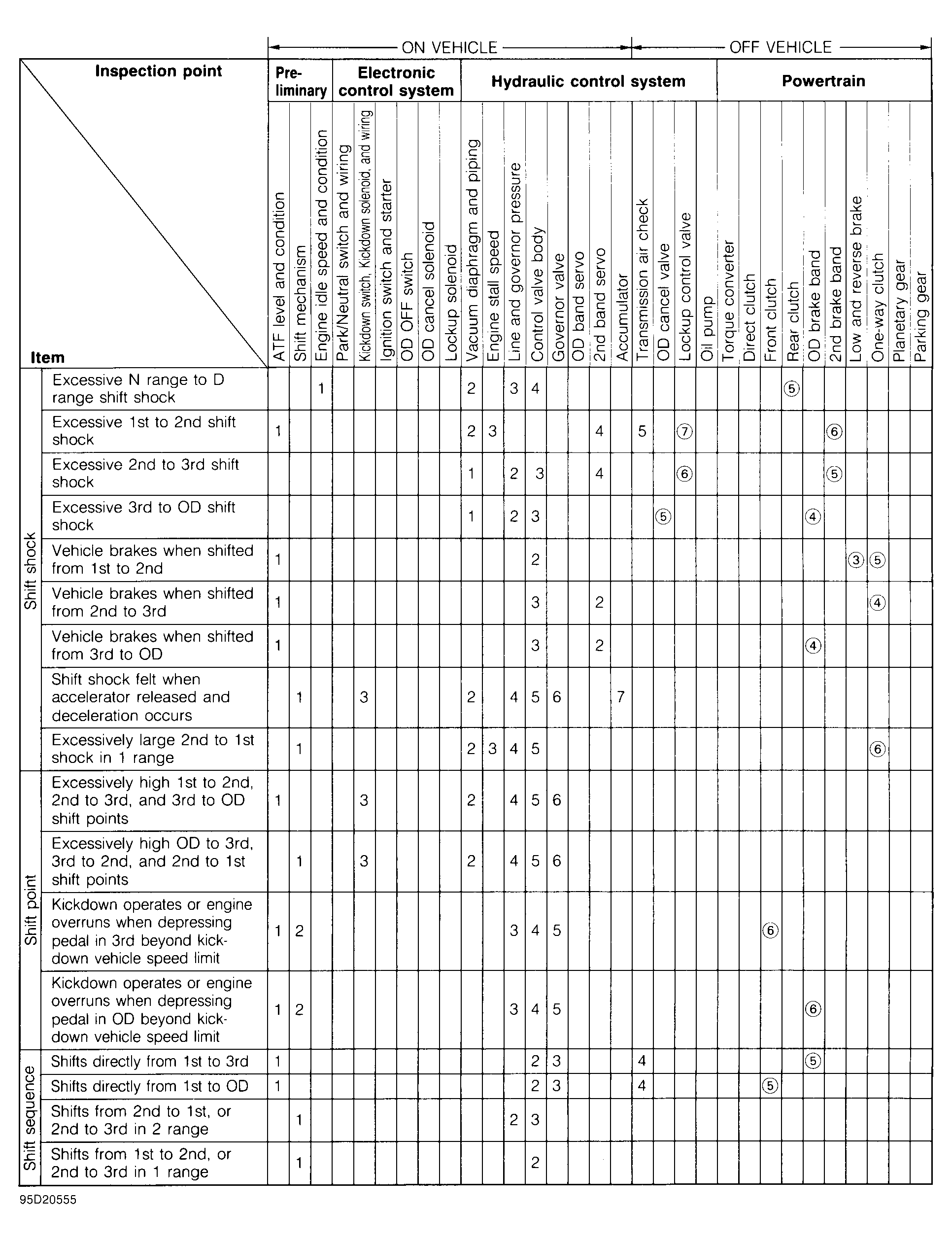

Fig 2: NA4A-HL 1991-93 "B" Series Trucks Trouble Shooting (2 of 3)

G95D20555

Courtesy of MAZDA MOTORS CORP.

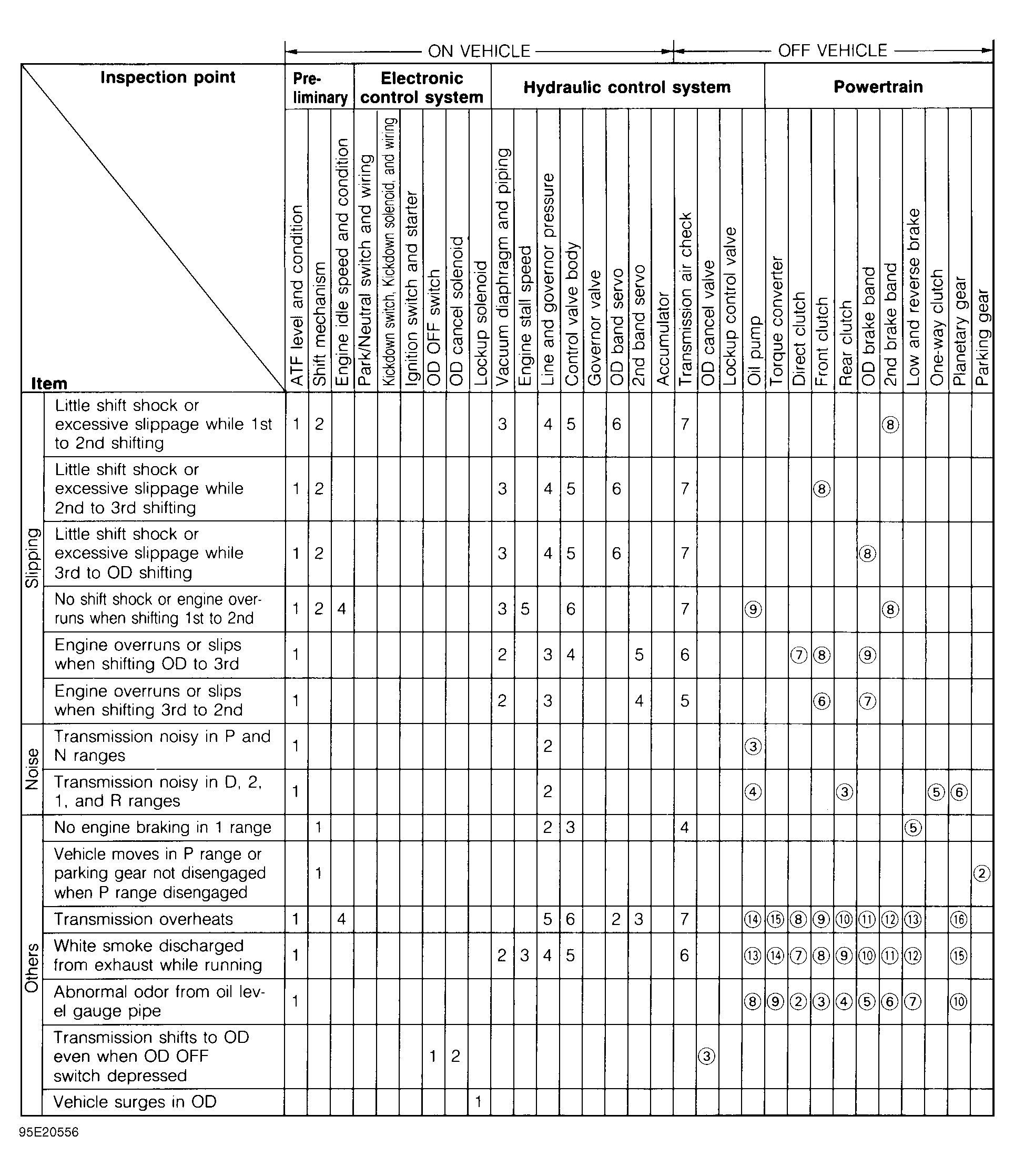

Fig 3: NA4A-HL 1991-93 "B" Series Trucks Trouble Shooting (3 of 3)

G95E20556

Courtesy of MAZDA MOTORS CORP.

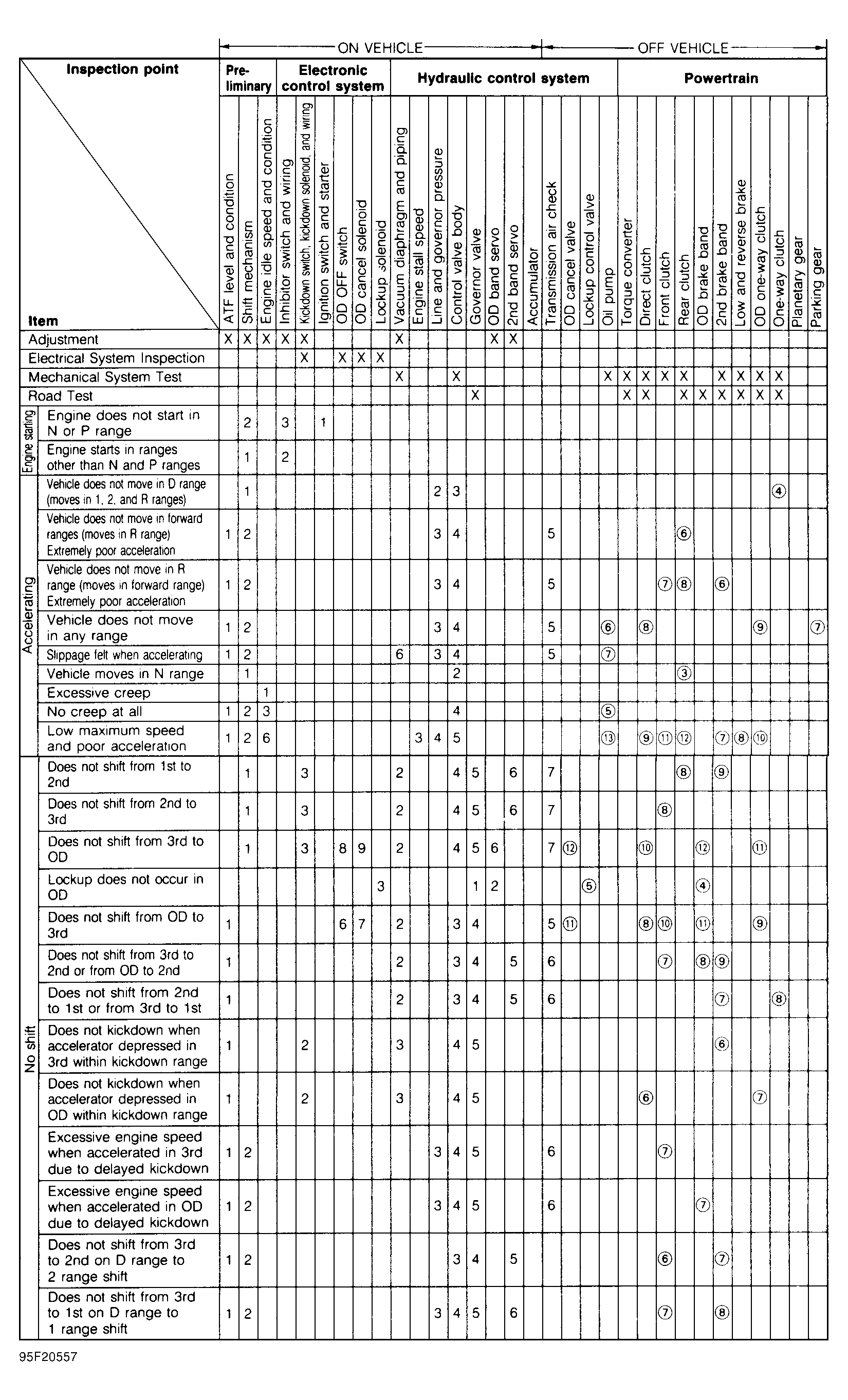

Fig 4: NA4A-HL 1990-93 Miata Trouble Shooting (1 of 3)

G95F20557

Courtesy of MAZDA MOTORS CORP.

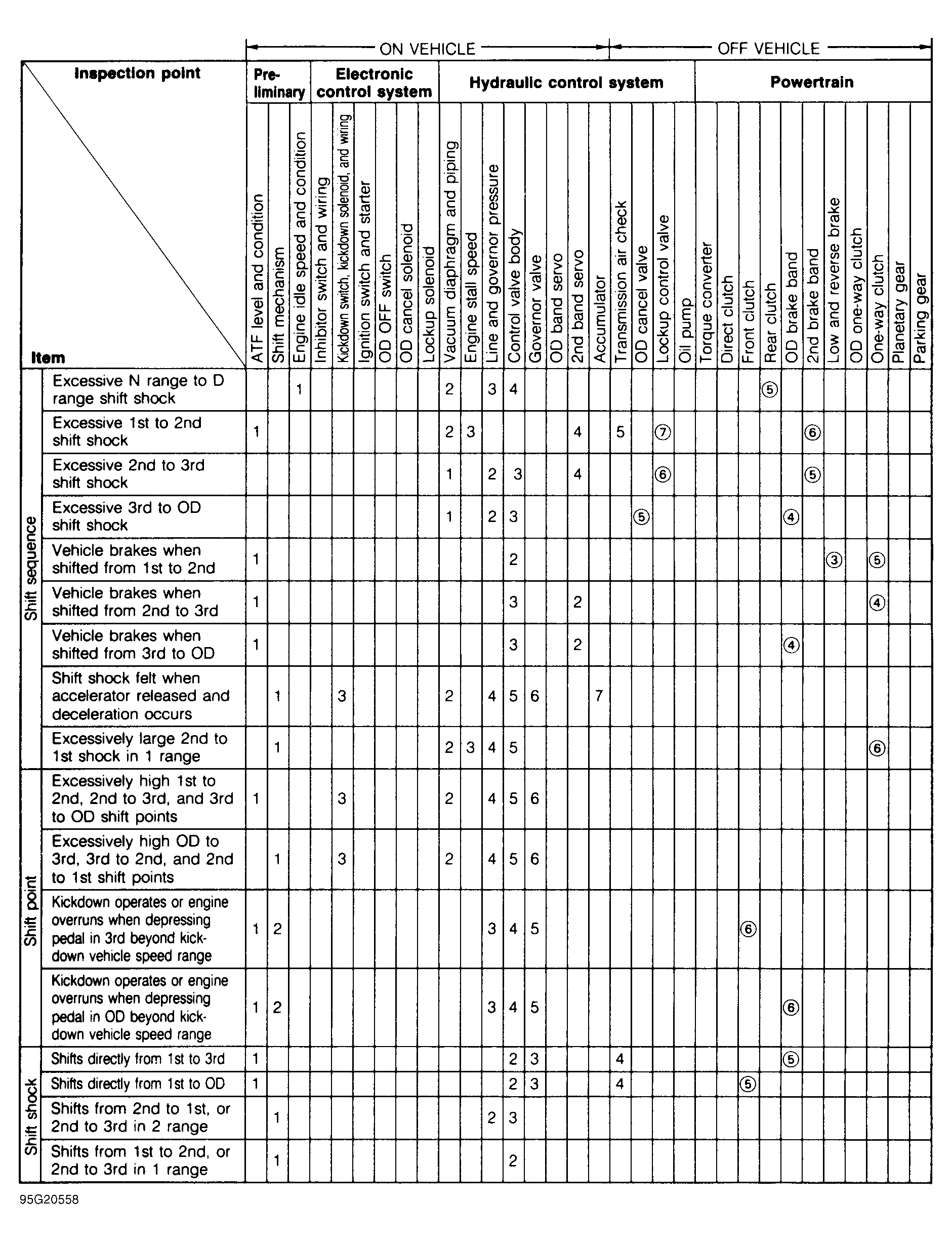

Fig 5: NA4A-HL 1990-93 Miata Trouble Shooting (2 of 3)

G95G20558

Courtesy of MAZDA MOTORS CORP.

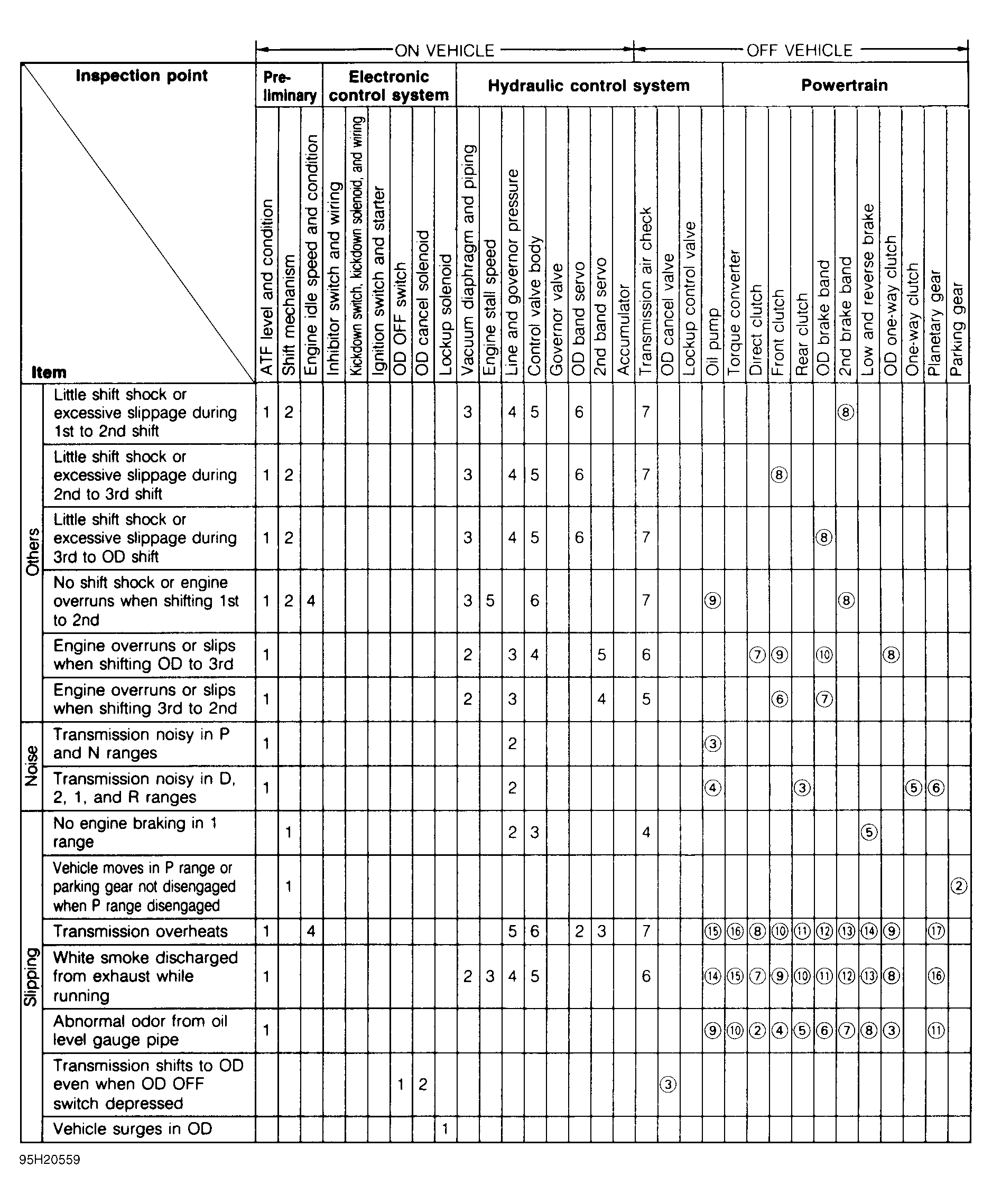

Fig 6: NA4A-HL 1990-93 Miata Trouble Shooting (3 of 3)

G95H20559

Courtesy of MAZDA MOTORS CORP.

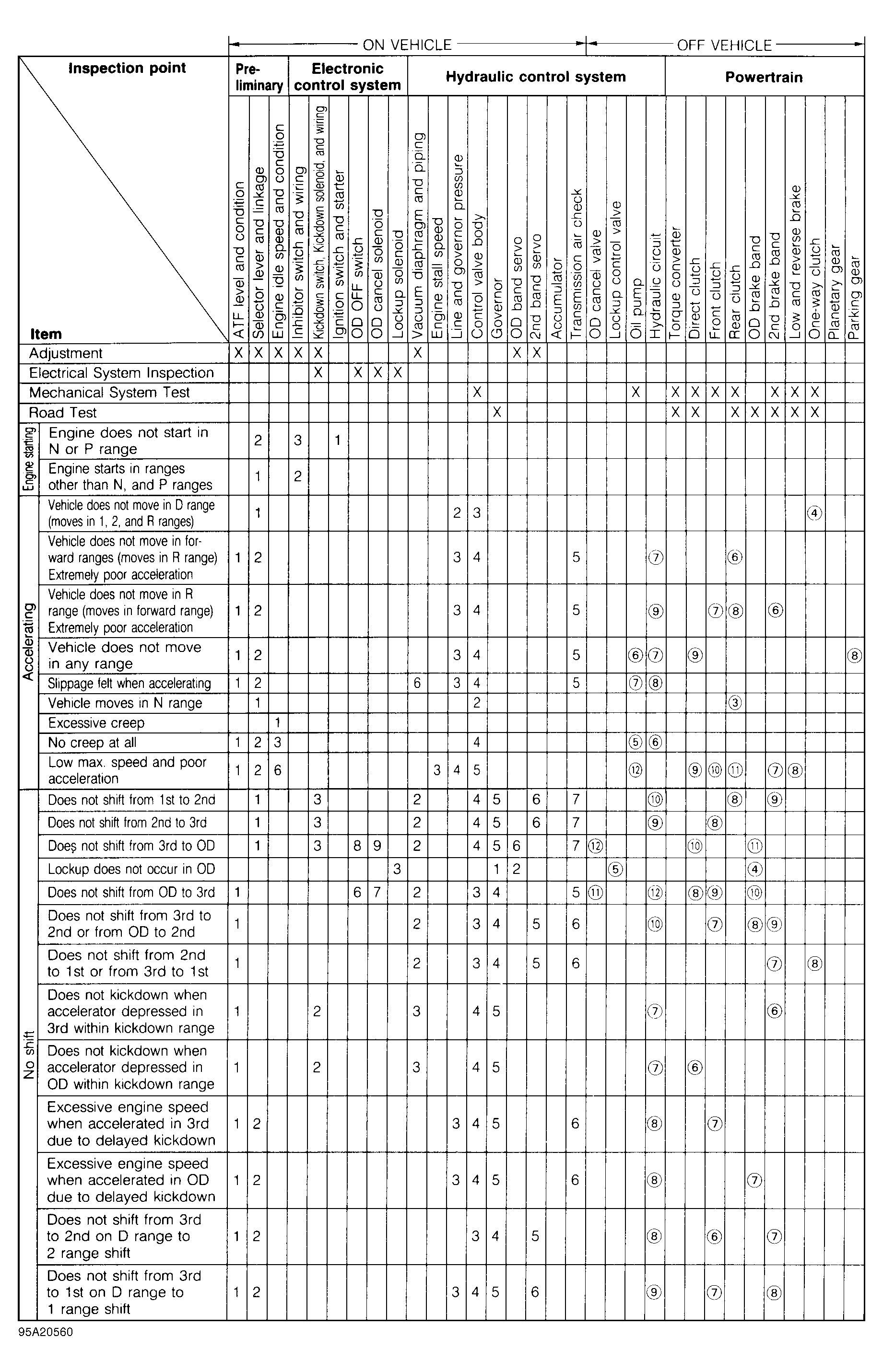

Fig 7: NA4A-HL 1989-94 MPV Trouble Shooting (1 of 3)

G95A20560

Courtesy of MAZDA MOTORS CORP.

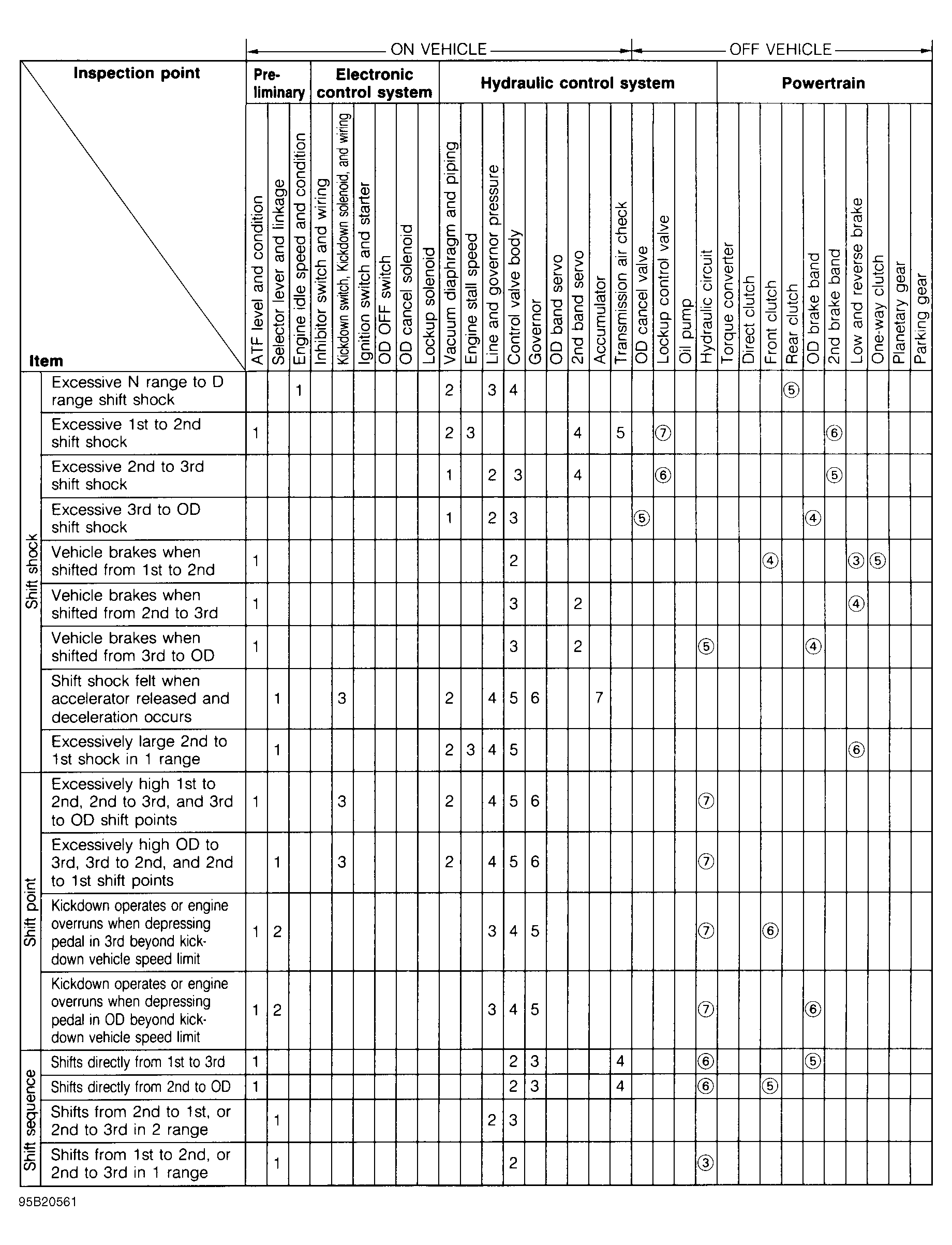

Fig 8: NA4A-HL 1989-94 MPV Trouble Shooting (2 of 3)

G95B20561

Courtesy of MAZDA MOTORS CORP.

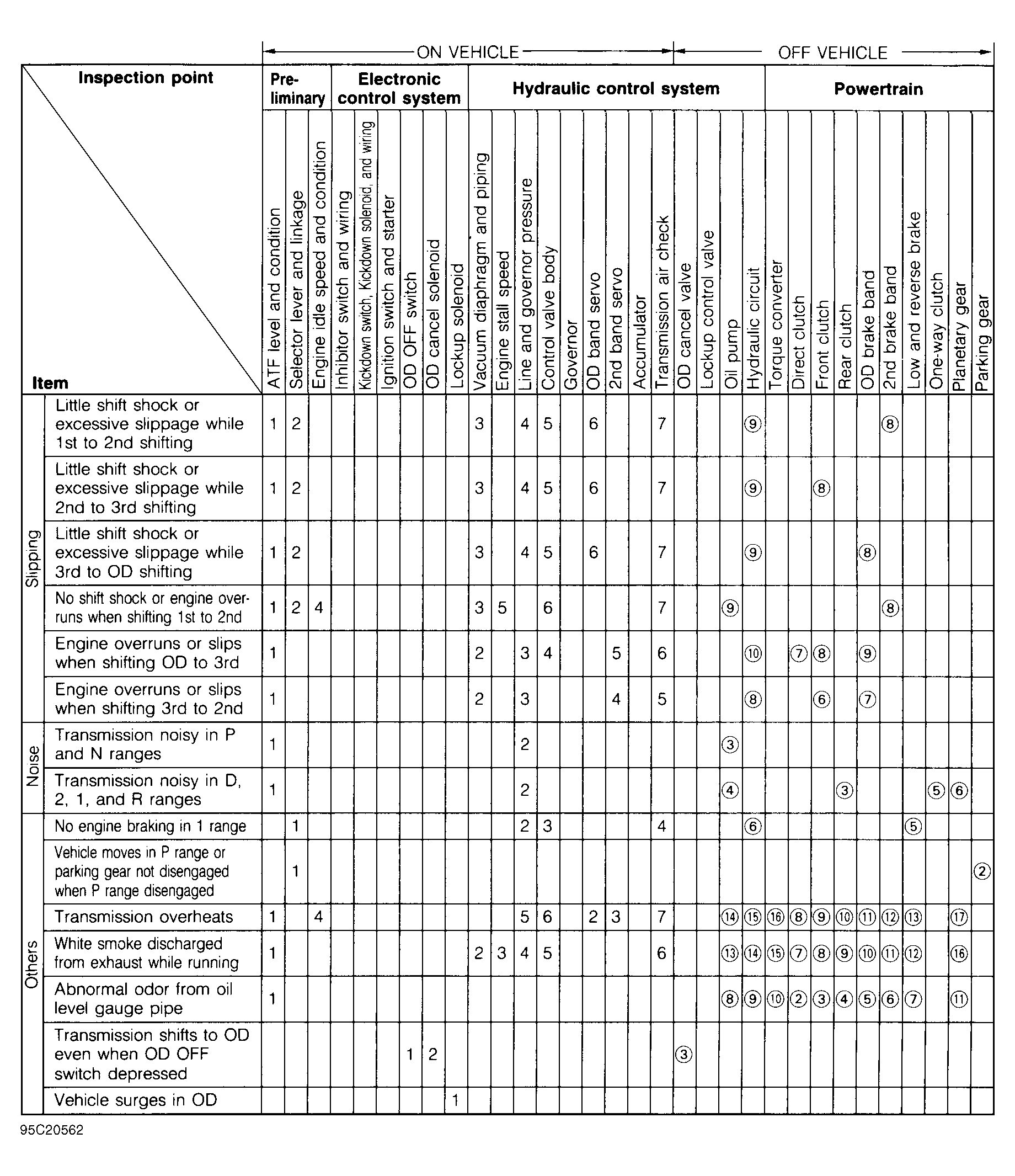

Fig 9: NA4A-HL 1989-94 MPV Trouble Shooting (3 of 3)

G95C20562

Courtesy of MAZDA MOTORS CORP.

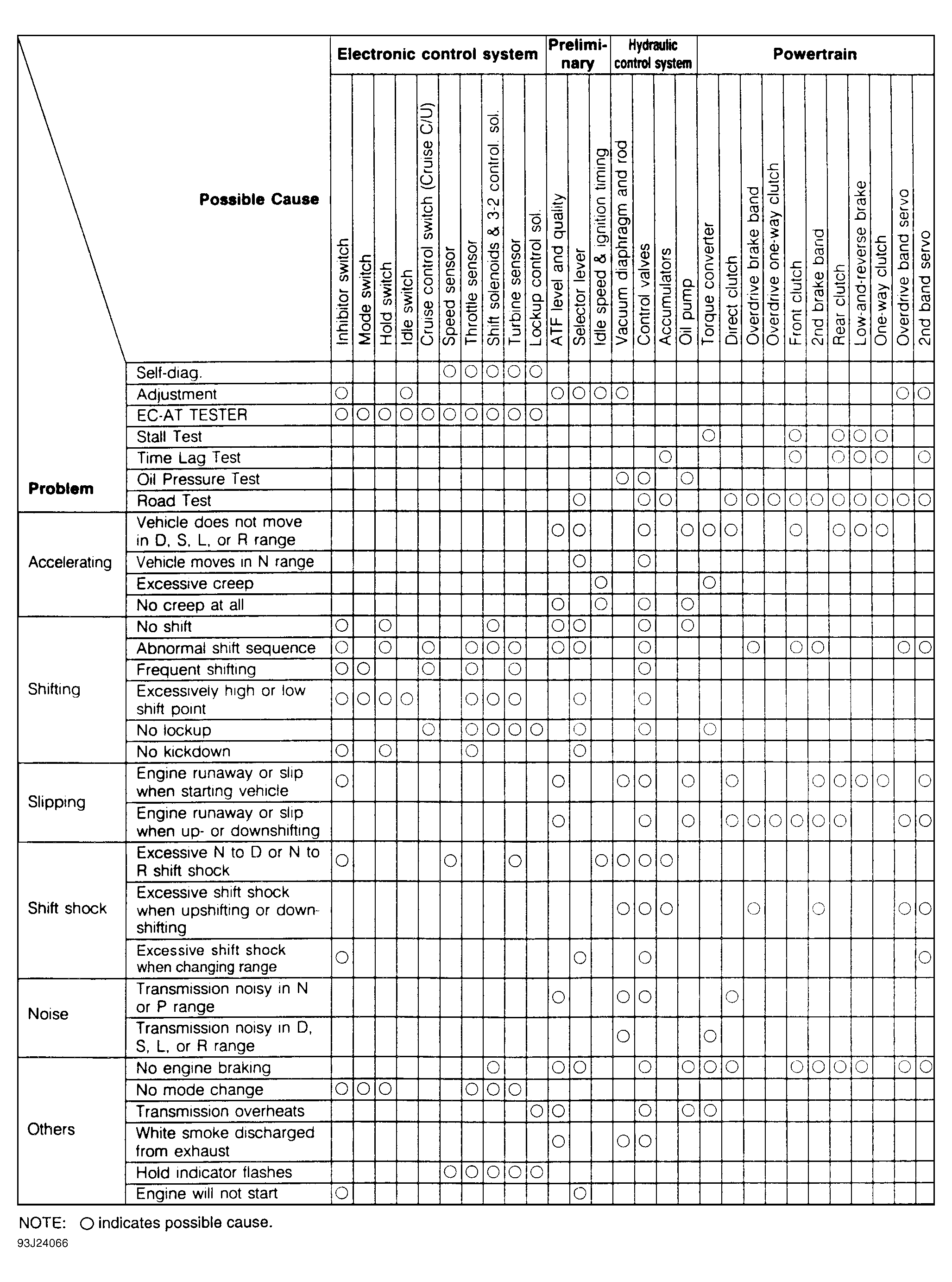

Fig 10: NC4A-EL 1994 Miata Trouble Shooting

G93J24066

Courtesy of MAZDA MOTORS CORP.
