Shift Speed Charts

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1994 Mazda MX-5 Miata, 1992 Mazda MX-5 Miata, 1992 Mazda MPV, 1992 Mazda B2200, and 1991 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

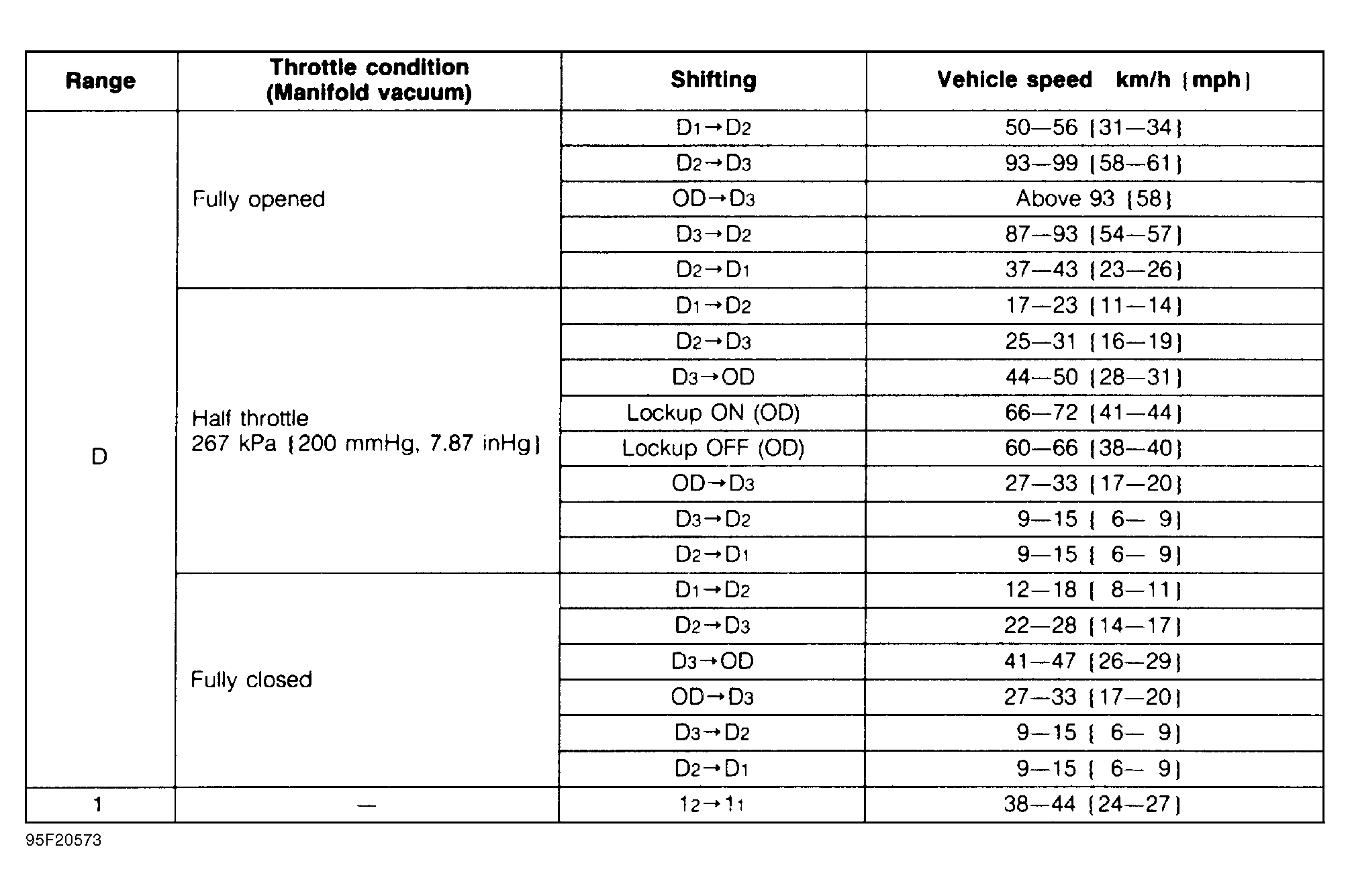

Fig 1: "B" Series Truck Shift Speed Chart

Courtesy of MAZDA MOTORS CORP.

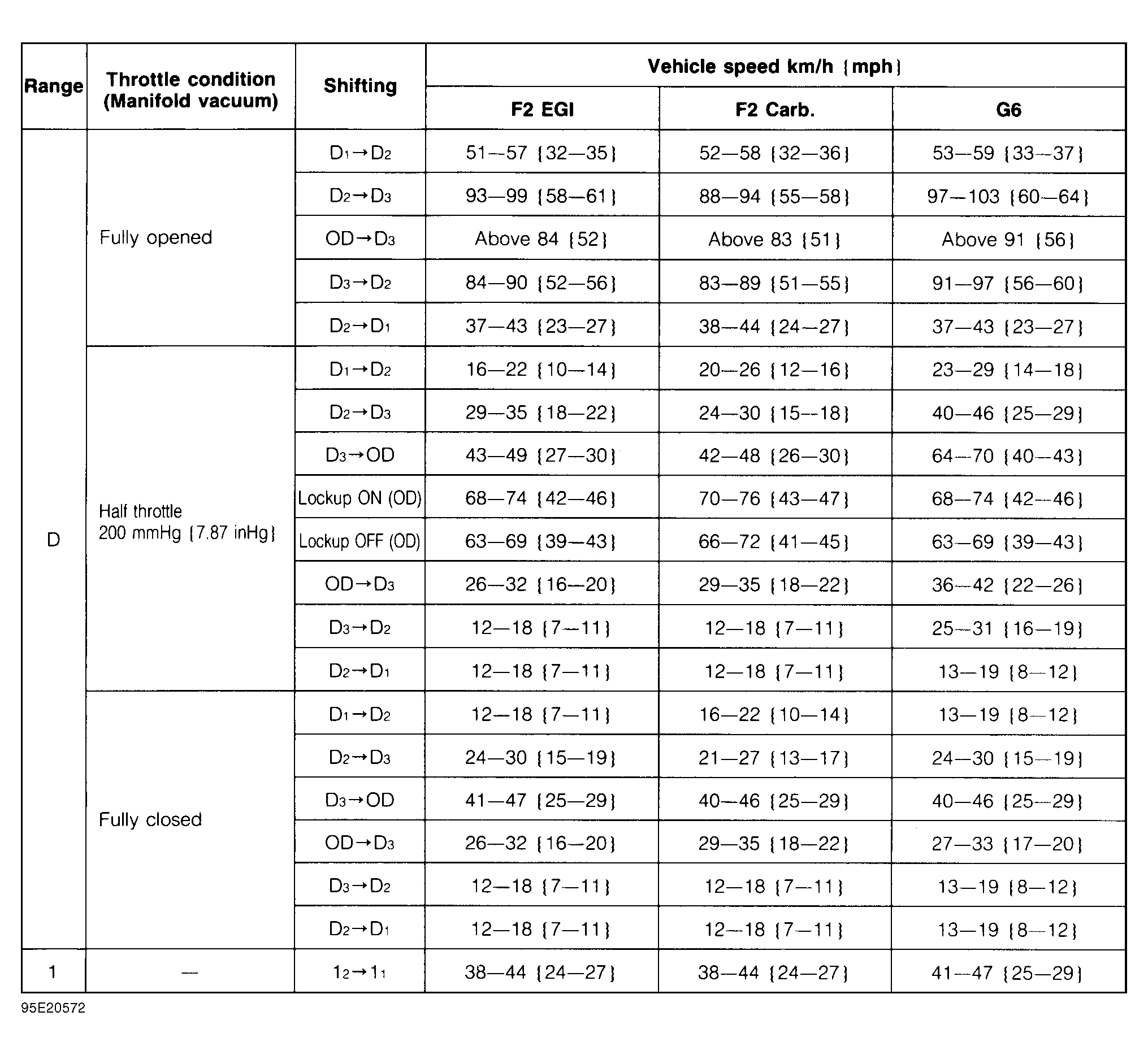

Fig 2: MPV Shift Speed Chart

Courtesy of MAZDA MOTORS CORP.

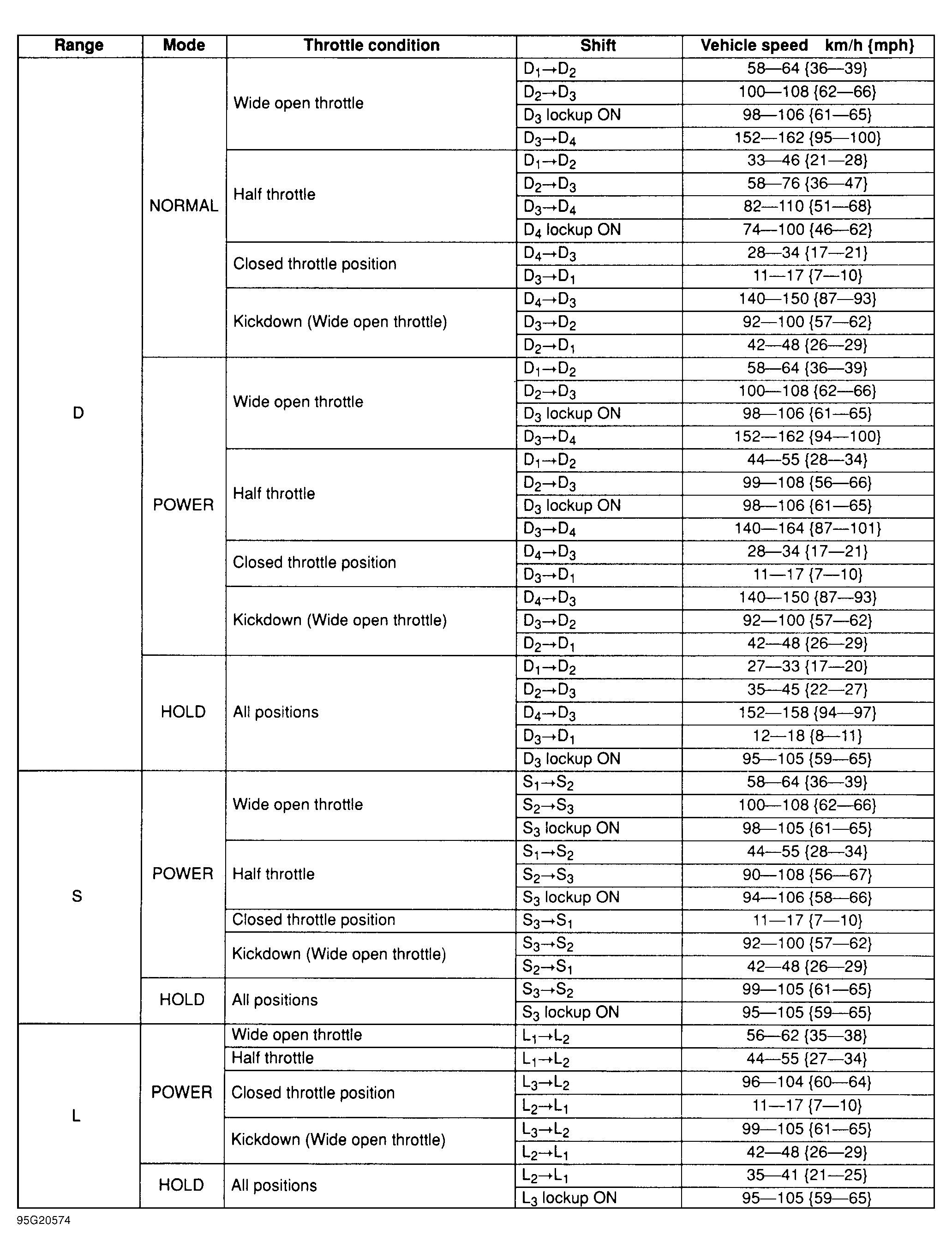

Fig 3: 1993 Miata Shift Speed Chart

Courtesy of MAZDA MOTORS CORP.

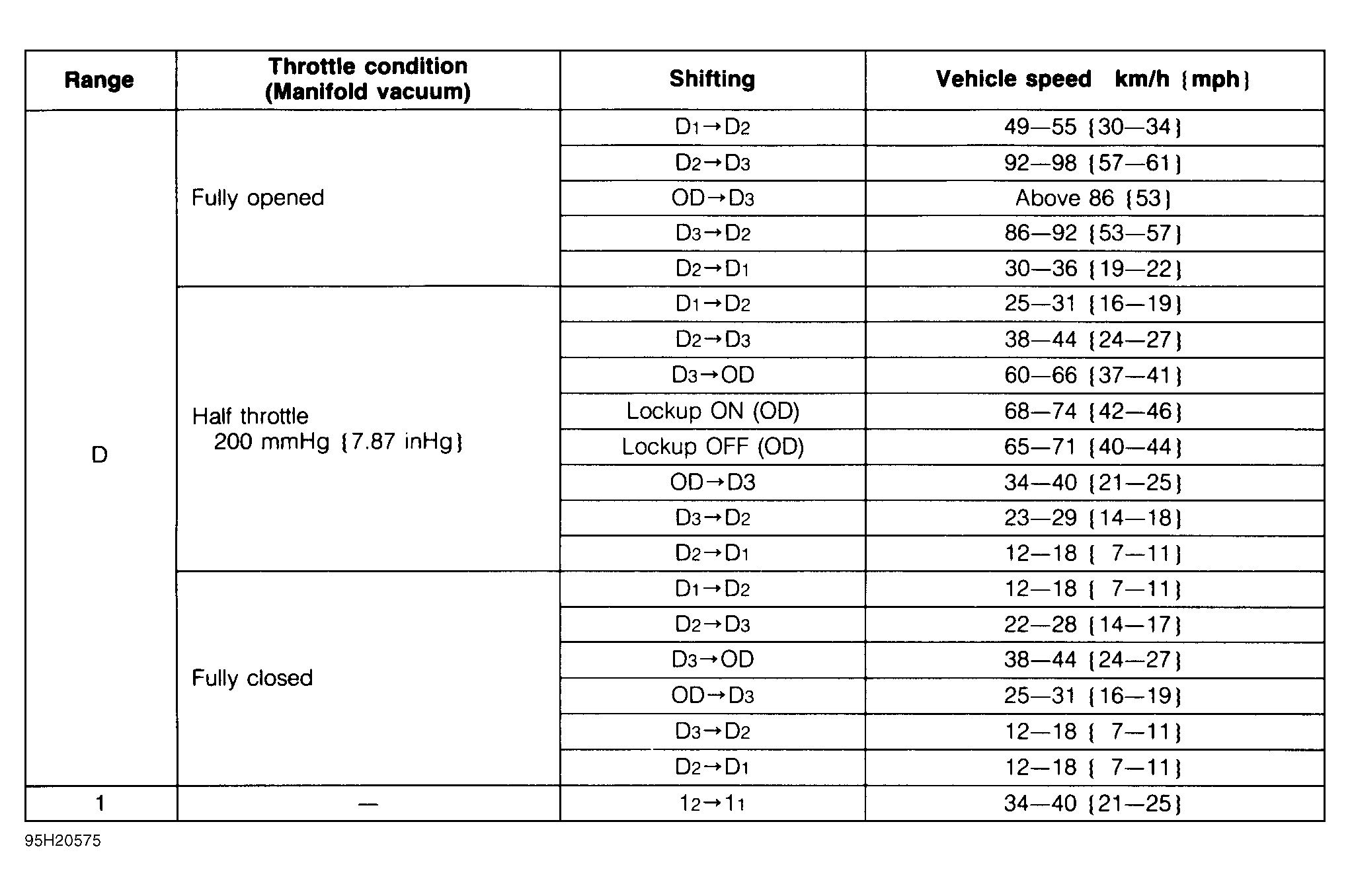

Fig 4: 1994 Miata Shift Speed Chart

Courtesy of MAZDA MOTORS CORP.
