B2200, B2600 & 1993 Miata

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1994 Mazda MX-5 Miata, 1992 Mazda MX-5 Miata, 1992 Mazda MPV, 1992 Mazda B2200, and 1991 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery cable. Remove gear selector console cover. Disconnect Park switch connector "A". See Fig 1 .
  2. Place gear selector in Park. Continuity should be present between both Black wires. Depress gear selector release button and ensure no continuity is present. If Park switch works as described, go to next step. If Park switch does not work as described, replace Park switch.
  3. Disconnect shift-lock actuator connector. Turn ignition on. Check terminal voltages and continuity. See Fig 1 . If not as specified, replace shift-lock actuator.

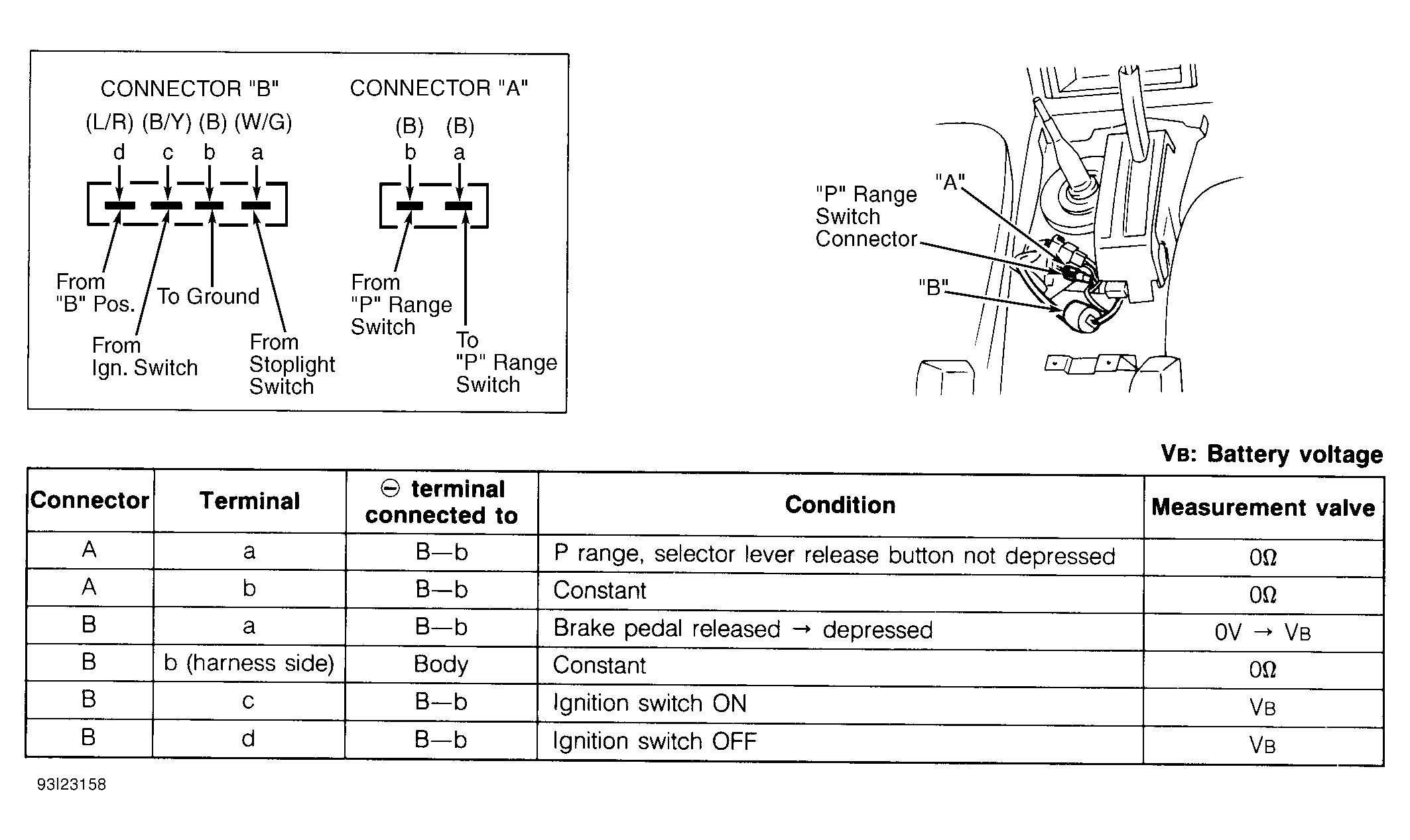

Fig 1: Testing Shift Lock Actuator, Park Switch & Connectors
G93I23158Courtesy of MAZDA MOTORS CORP.
