Continuity Test

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1994 Mazda MX-5 Miata, 1992 Mazda MX-5 Miata, 1992 Mazda MPV, 1992 Mazda B2200, and 1991 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition off. Connect ohmmeter to switch terminals. Operate switch and check for continuity. See Fig 4 . If continuity is not as described, replace switch.

Fig 1: Checking OD Switch Voltage
G95A20610Courtesy of MAZDA MOTORS CORP.

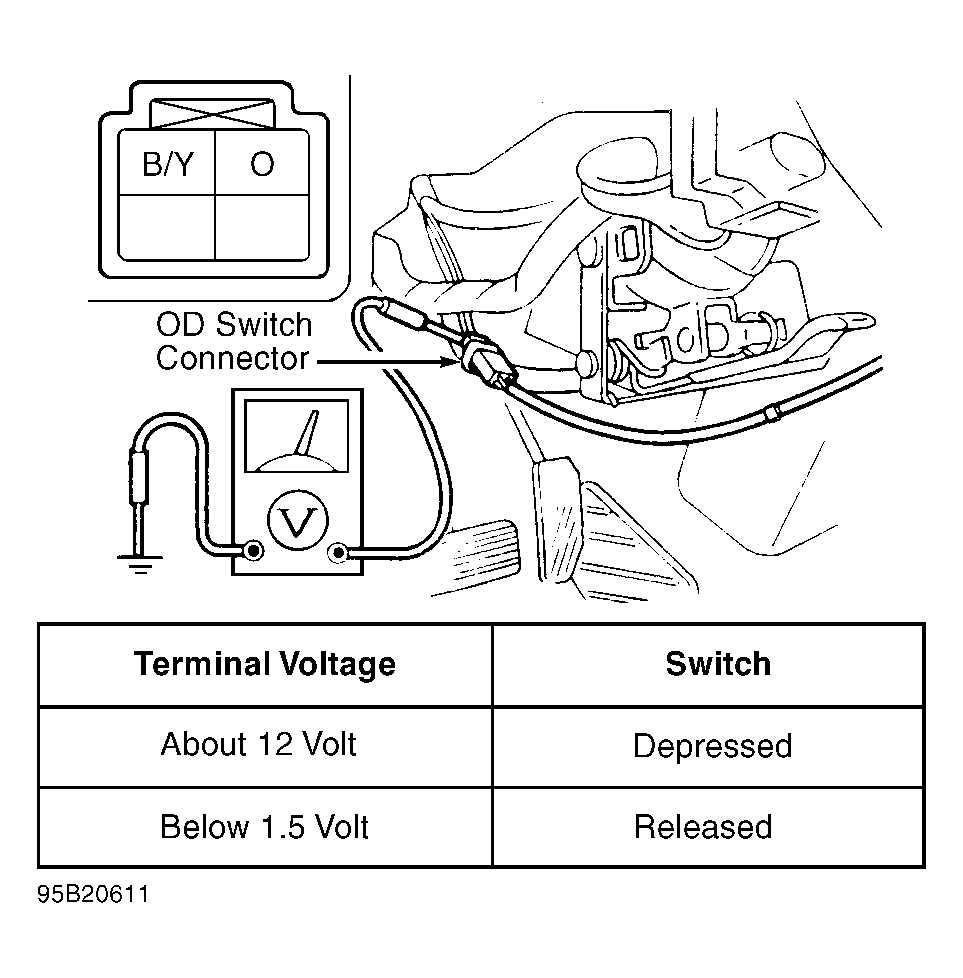

Fig 2: Checking OD Switch Voltage
G95B20611Courtesy of MAZDA MOTORS CORP.

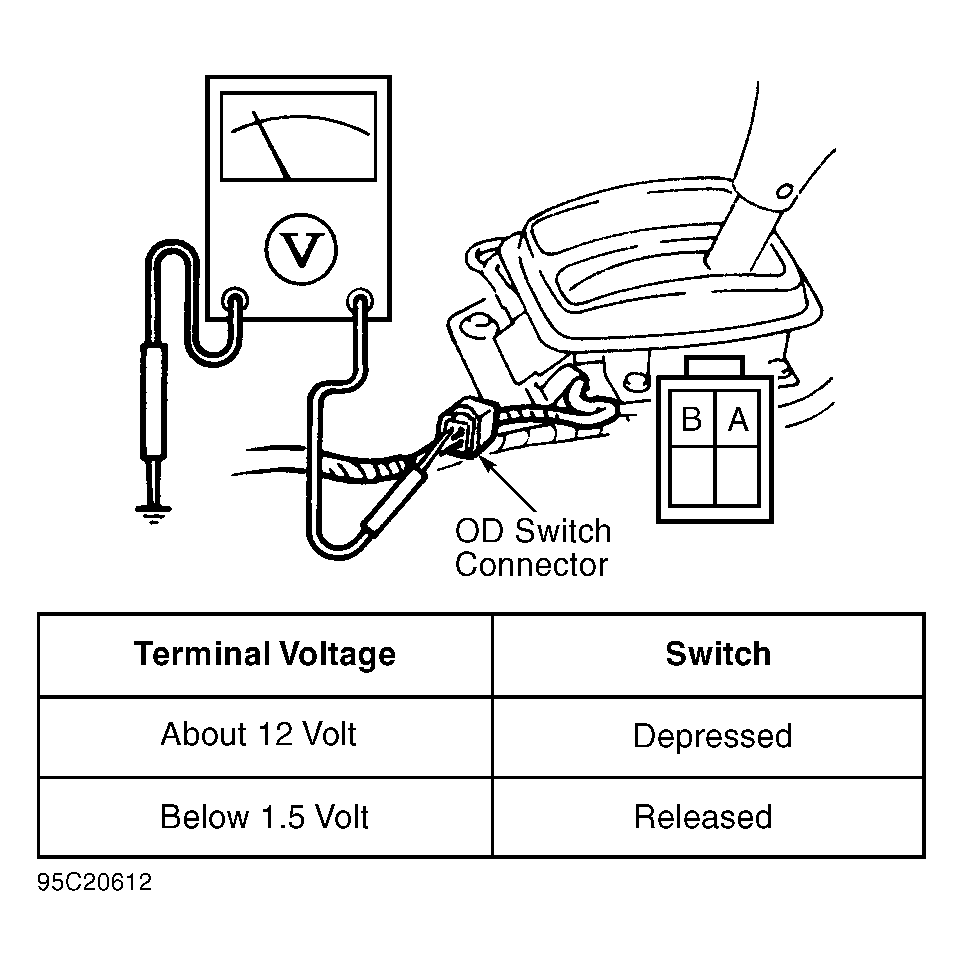

Fig 3: Checking OD Switch Voltage
G95C20612Courtesy of MAZDA MOTORS CORP.

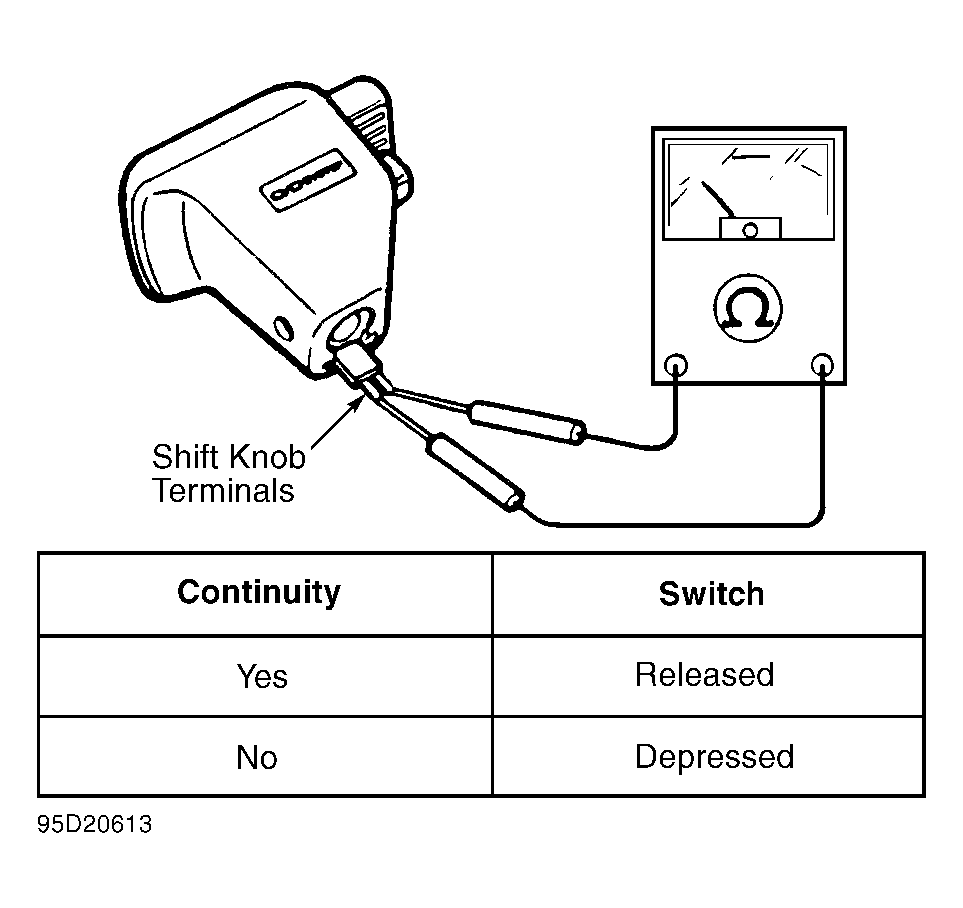

Fig 4: Checking OD Switch Continuity
G95D20613Courtesy of MAZDA MOTORS CORP.

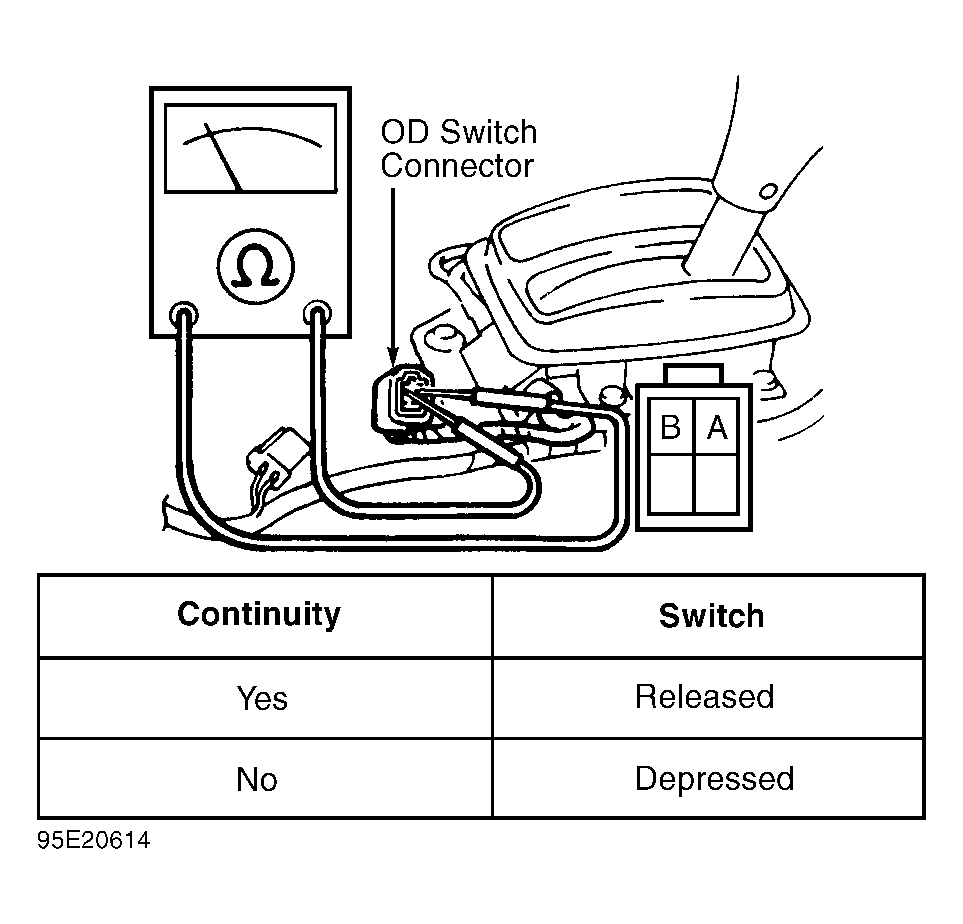

Fig 5: Checking OD Switch Continuity
G95E20614Courtesy of MAZDA MOTORS CORP.

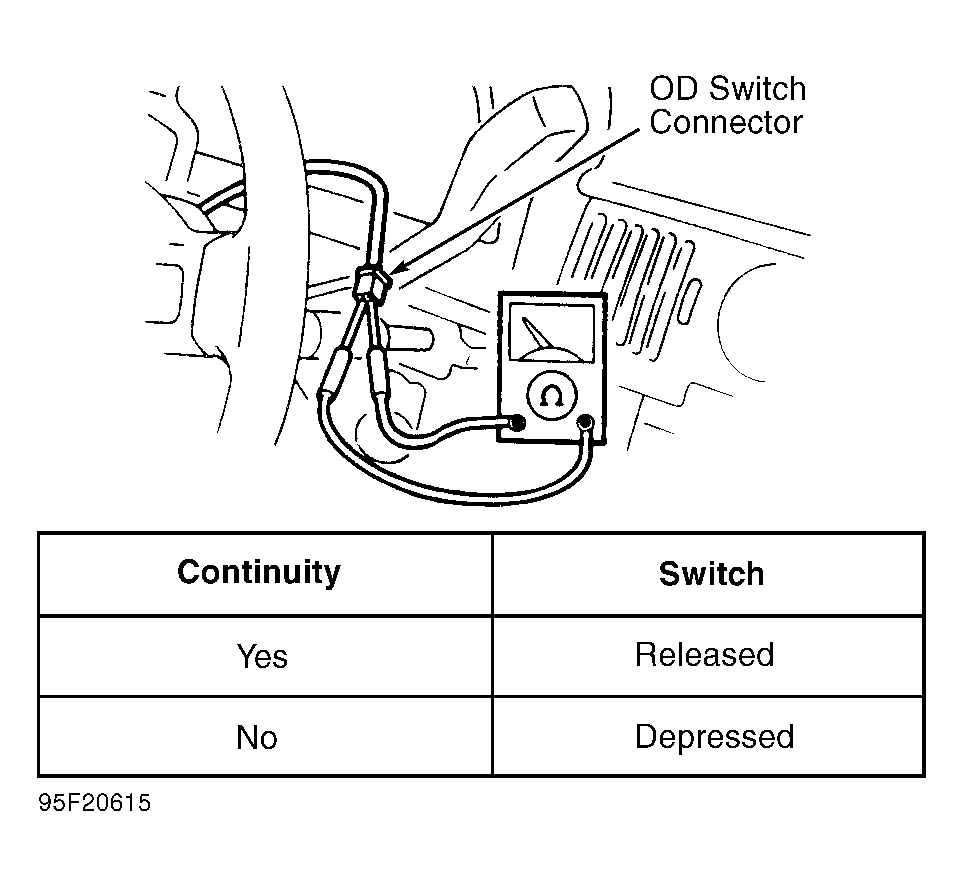

Fig 6: Checking OD Switch Continuity
G95F20615Courtesy of MAZDA MOTORS CORP.
