Code Charts

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1994 Mazda MX-5 Miata, 1992 Mazda MX-5 Miata, 1992 Mazda MPV, 1992 Mazda B2200, and 1991 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

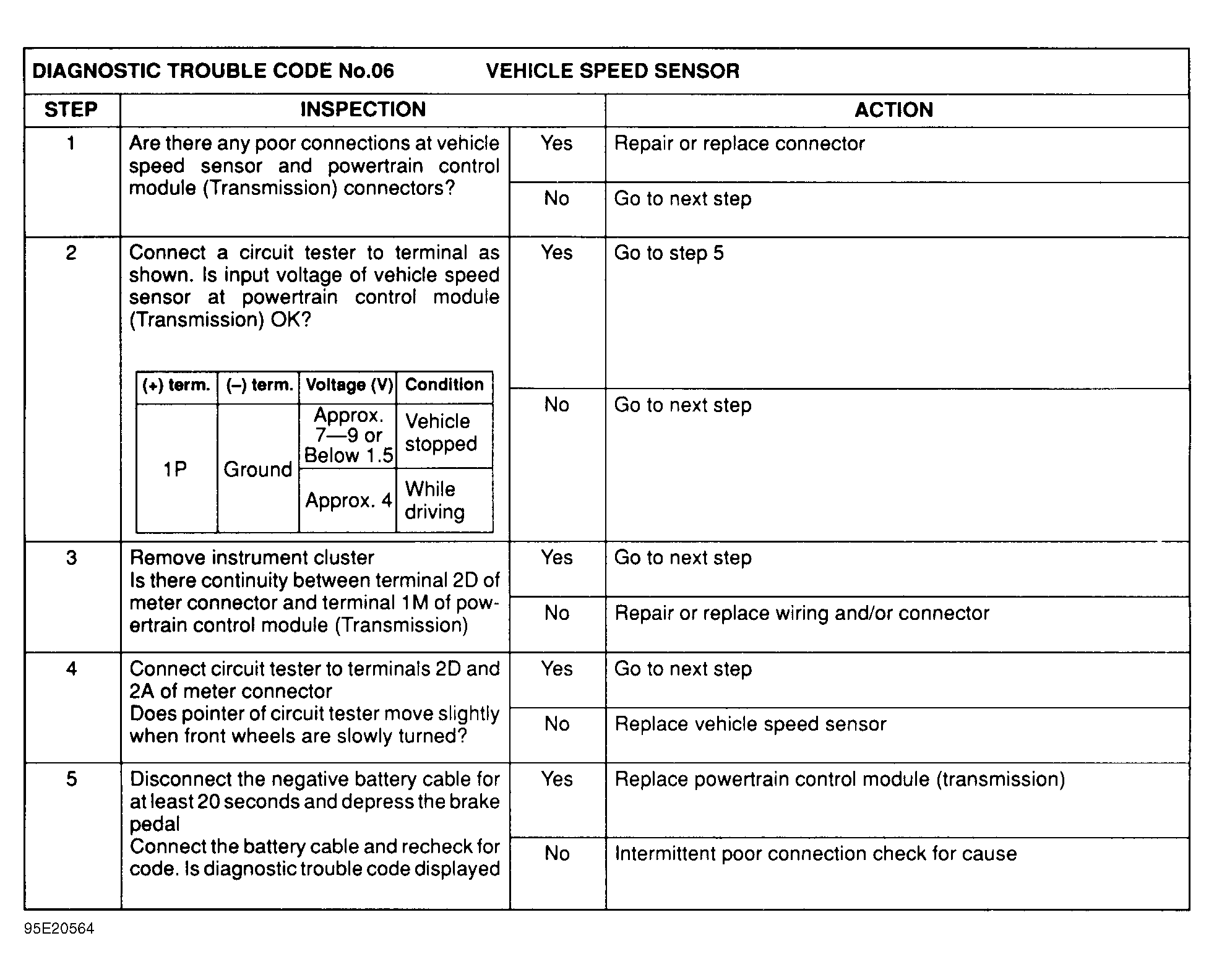

Fig 1: Diagnostic Trouble Code No. 6

G95E20564

Courtesy of MAZDA MOTORS CORP.

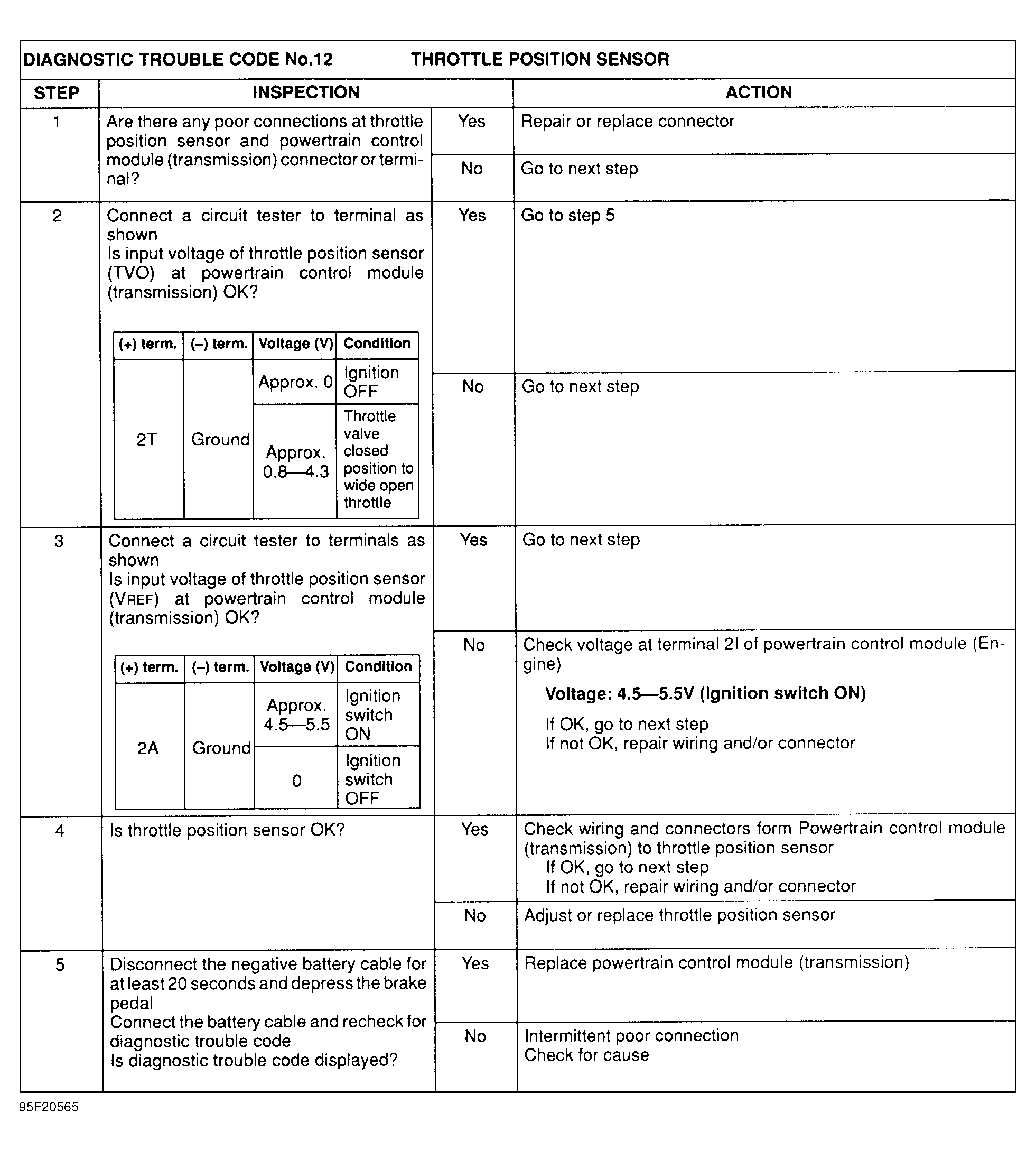

Fig 2: Diagnostic Trouble Code No. 12

G95F20565

Courtesy of MAZDA MOTORS CORP.

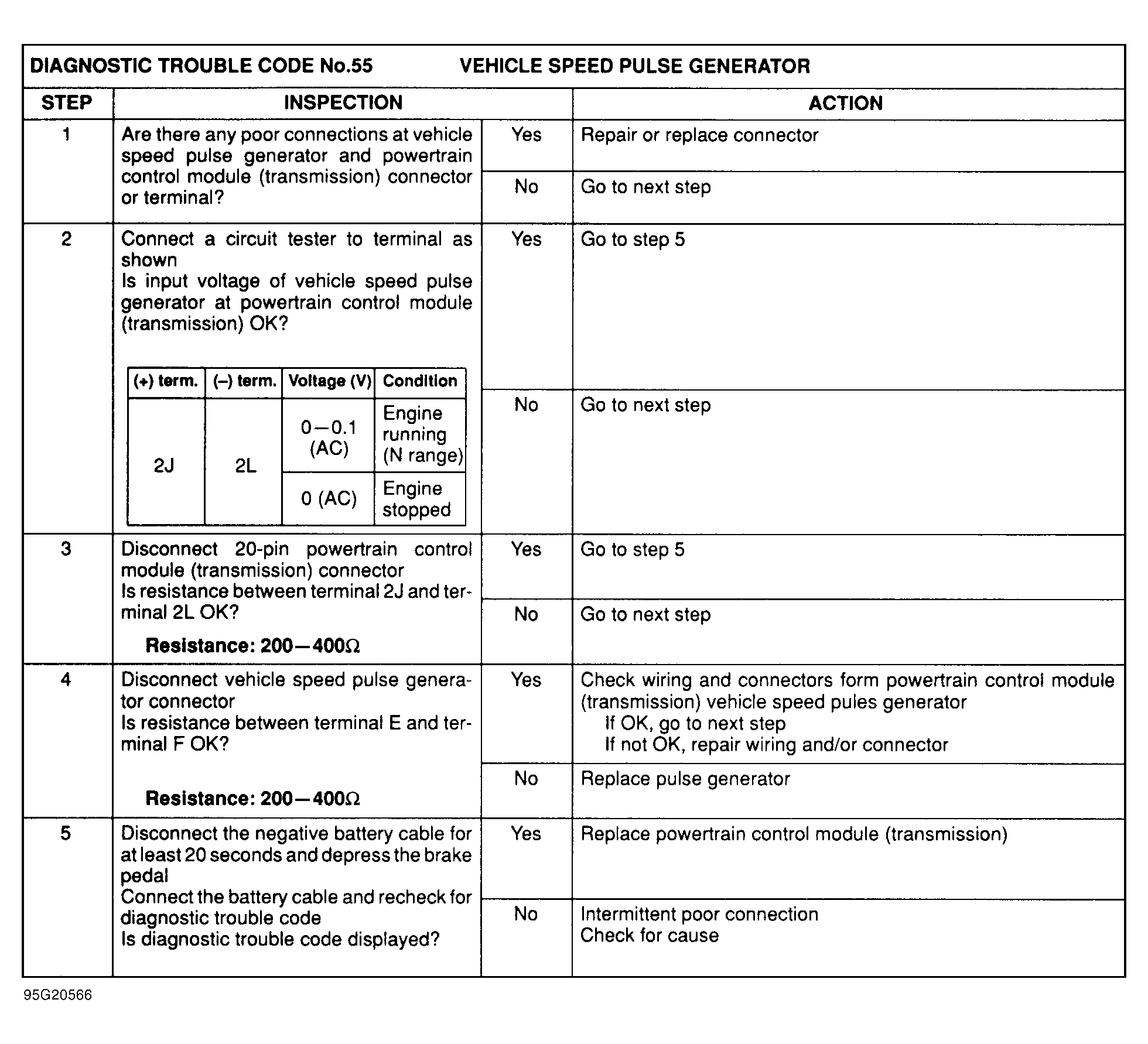

Fig 3: Diagnostic Trouble Code No. 55

G95G20566

Courtesy of MAZDA MOTORS CORP.

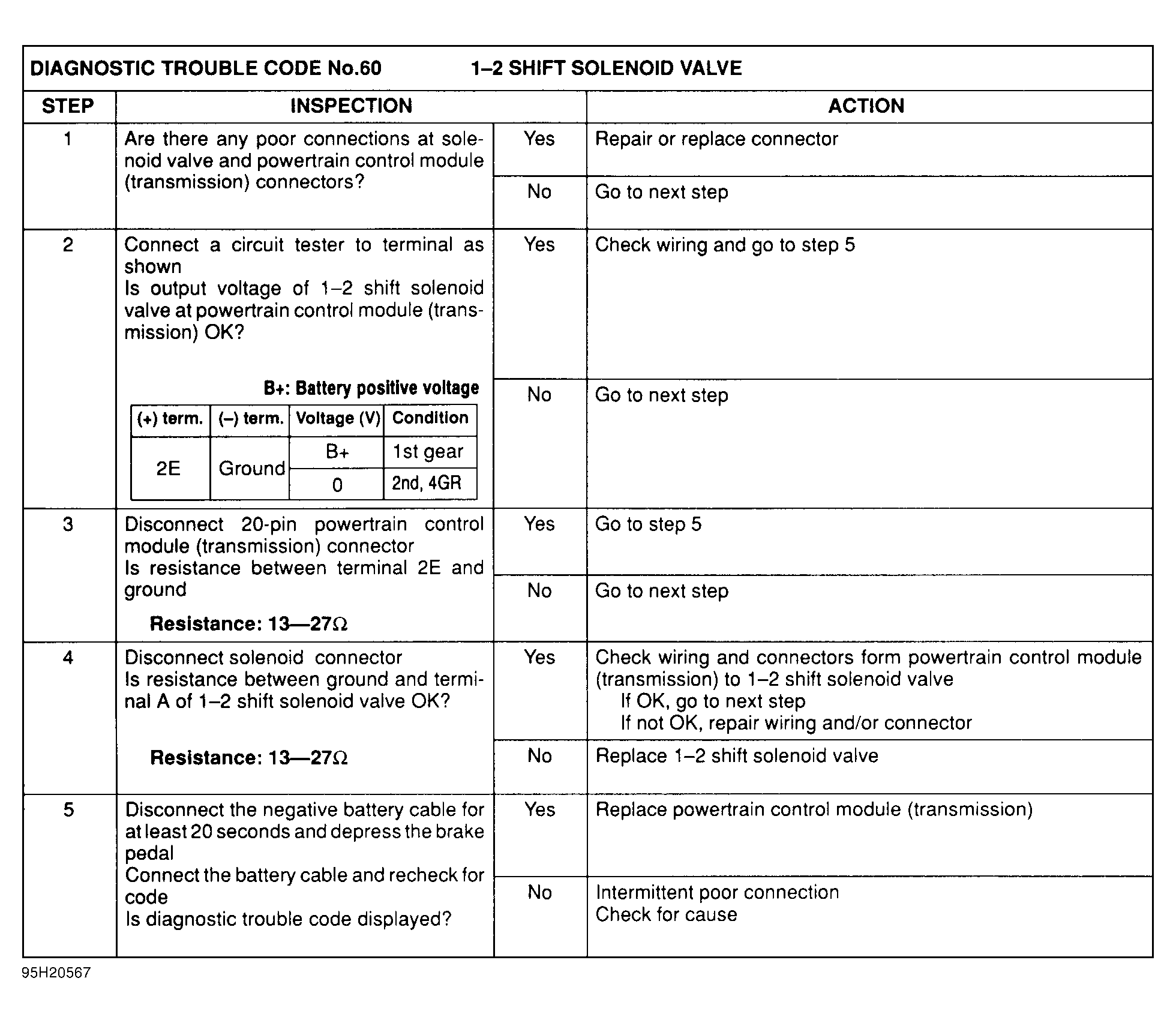

Fig 4: Diagnostic Trouble Code No. 60

G95H20567

Courtesy of MAZDA MOTORS CORP.

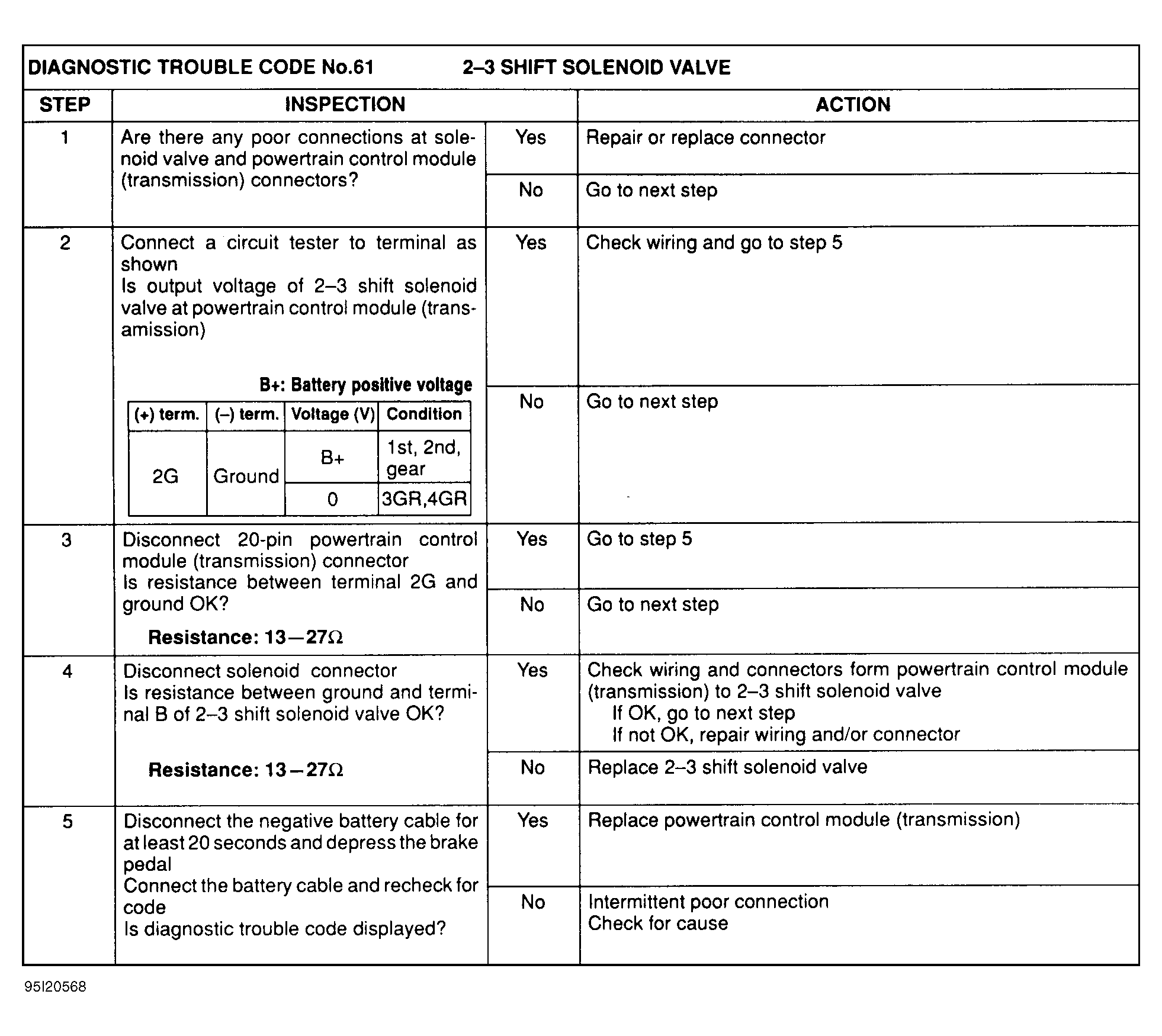

Fig 5: Diagnostic Trouble Code No. 61

G95I20568

Courtesy of MAZDA MOTORS CORP.

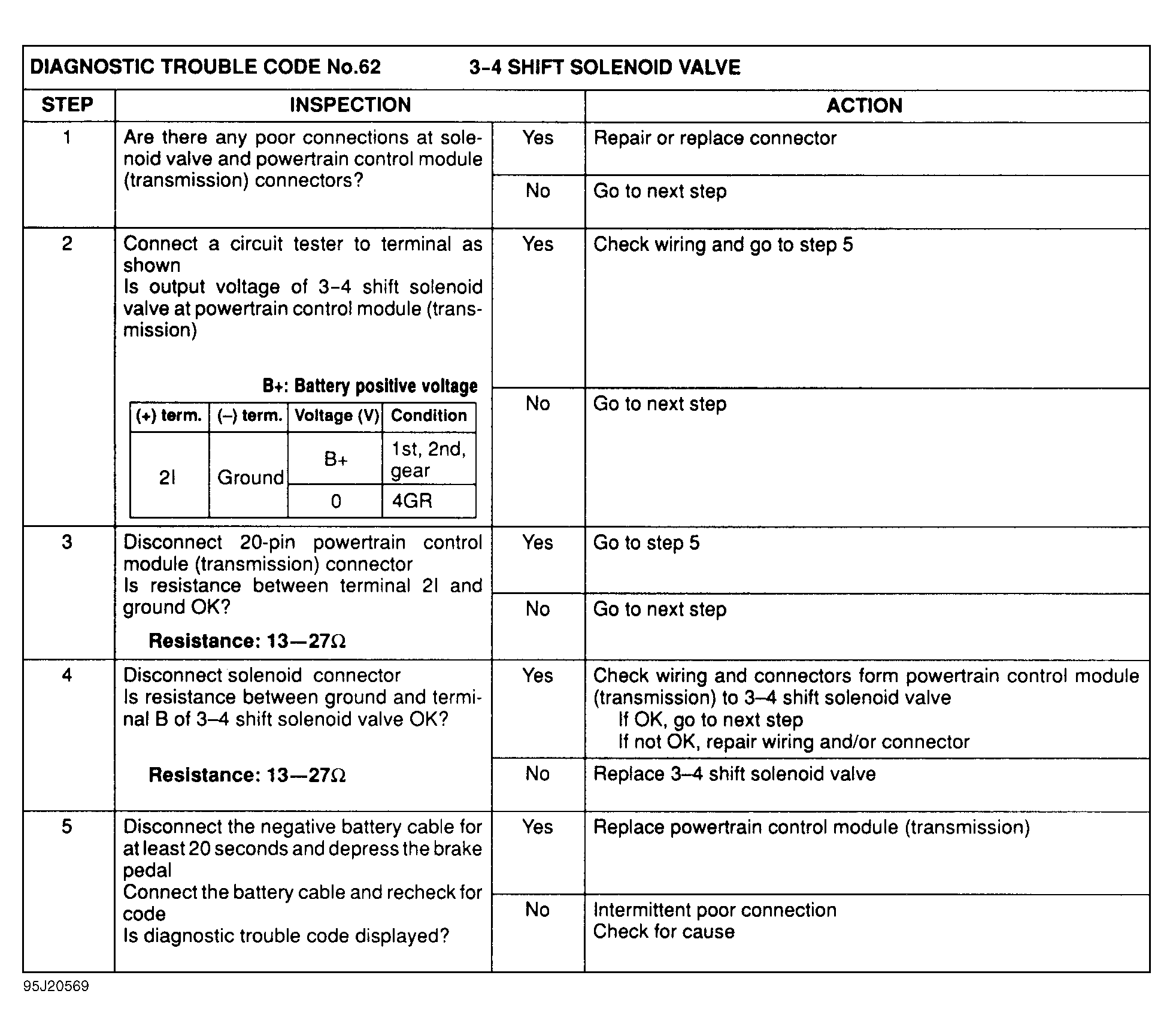

Fig 6: Diagnostic Trouble Code No. 62

G95J20569

Courtesy of MAZDA MOTORS CORP.

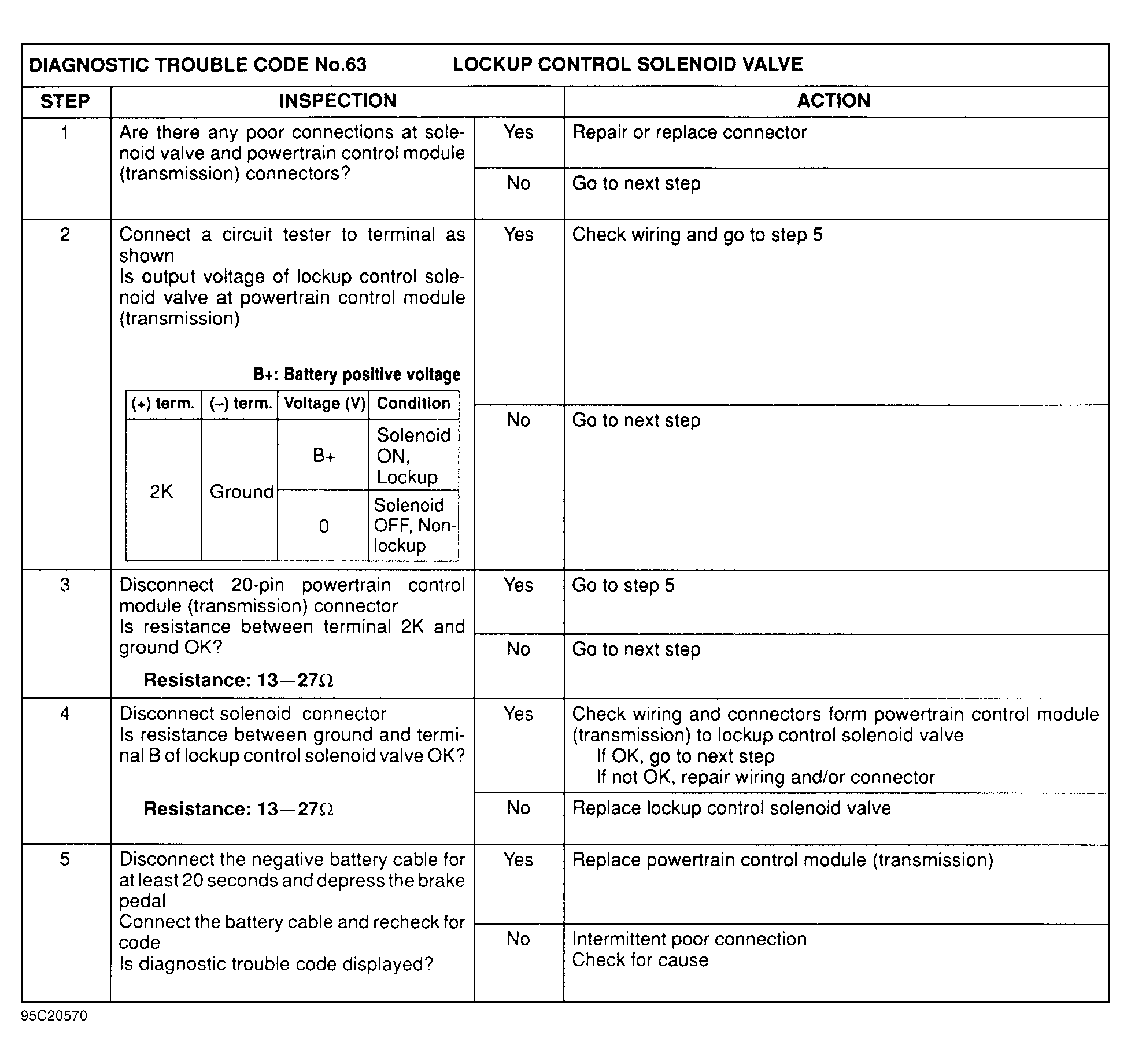

Fig 7: Diagnostic Trouble Code No. 63

G95C20570

Courtesy of MAZDA MOTORS CORP.

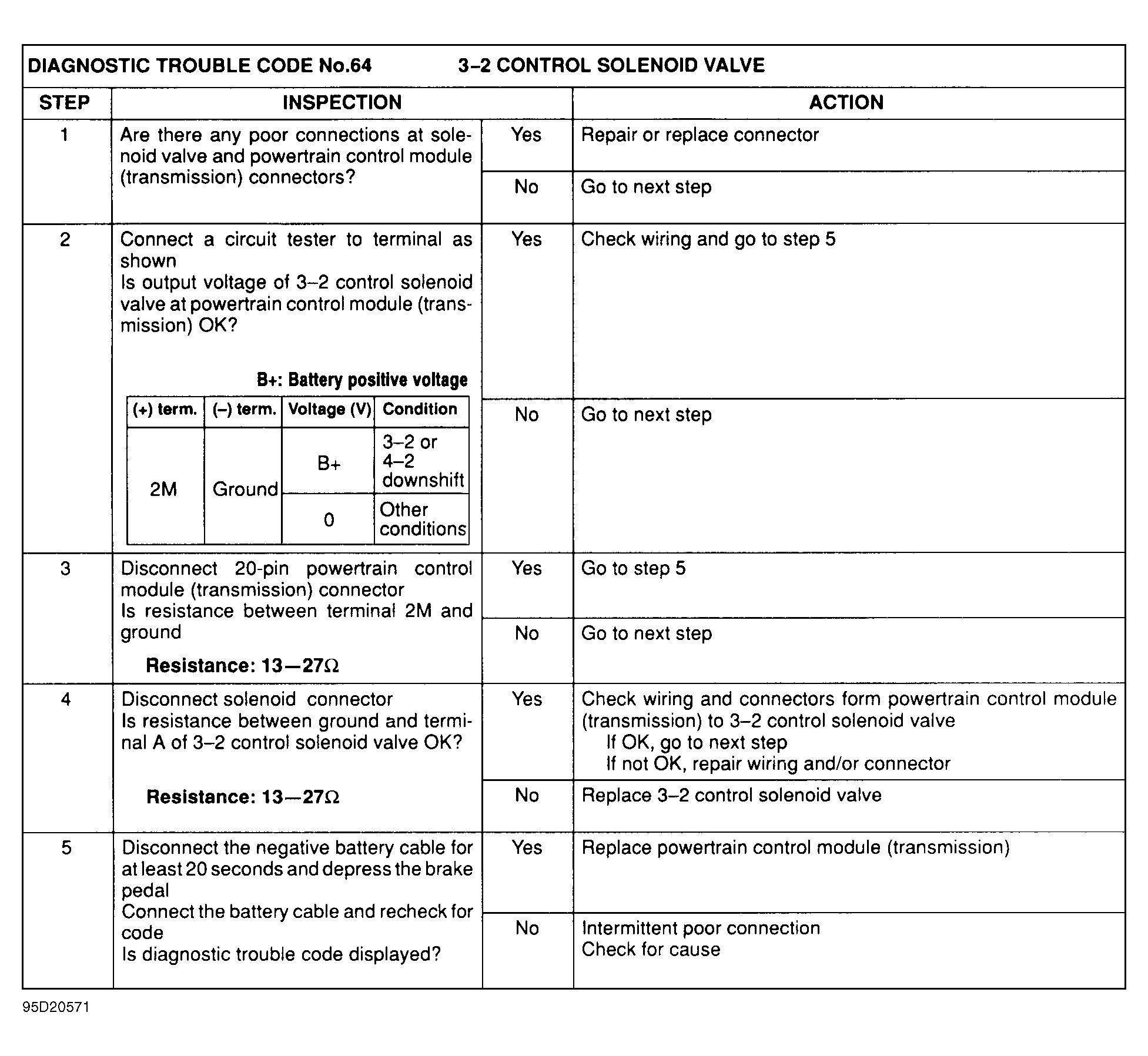

Fig 8: Diagnostic Trouble Code No. 64

G95D20571

Courtesy of MAZDA MOTORS CORP.
