Combination Switch
Disconnect battery ground. Remove steering wheel. Remove column covers and snap ring at top of column (if equipped). Unplug wiring connectors. Loosen combination switch screw. Remove switch. To install, reverse removal procedure.

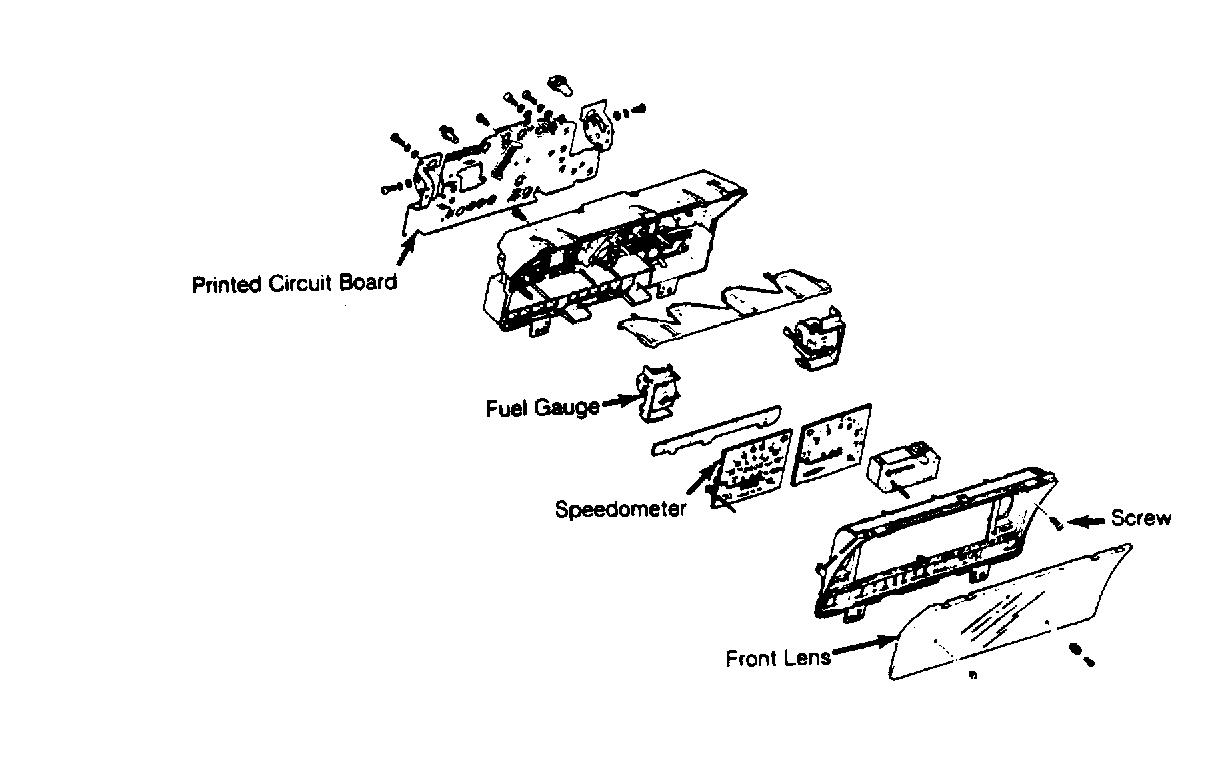

B2200 & B2600 DASH CONNECTOR PIN CALLOUT
| Pin Number | Destination | |||
|---|---|---|---|---|
| Connector "A" | ||||
| 1 | Fuel Tank Unit | |||
| 2 | Service Light (Ground) | |||
| 3 | 4x4 Switch | |||
| 4 | Alternator | |||
| 5 | F/B Control Unit | |||
| 6 (1) | Washer Fluid Level Sensor | |||
| 7 | Blank | |||
| 8 (1) | Cruise Control & A/T Control Unit | |||
| 9 | Ground | |||
| 10 | Blank | |||
| 11 | Blank | |||
| 12 | Blank | |||
| Connector "B" | ||||
| 13 | Ignition Switch | |||
| 14 | Stop Light Failure Switch | |||
| 15 | Oil Pressure Switch | |||
| 16 | Ignition Switch | |||
| 17 | Warning Buzzer | |||
| 18 | Blank | |||
| 19 (1) | O/D or 4x4 Switch | |||
| 20 | Ground | |||
| 21 | Turn Signal (RH) & Hazard | |||
| 22 | Turn Signal (LH) & Hazard | |||
| Connector "C" | ||||
| 23 | Panel Light Controller | |||
| 24 | Ground | |||
| 25 (1) | Rear Window Defrost Switch | |||
| 26 | Light Switch (High Beam) | |||
| 27 (1) | Light Switch (Clock) | |||
| 28 (1) | Battery | |||
| 29 | Ignition Coil (-) | |||
| 30 | Water Temp Gauge Unit | |||
|
||||
