Home >> Mazda >> 1987 >> 626 GT, 4D Sedan >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Suspension - Electronic >> Wiring Diagram

Suspension - Electronic: Wiring Diagram

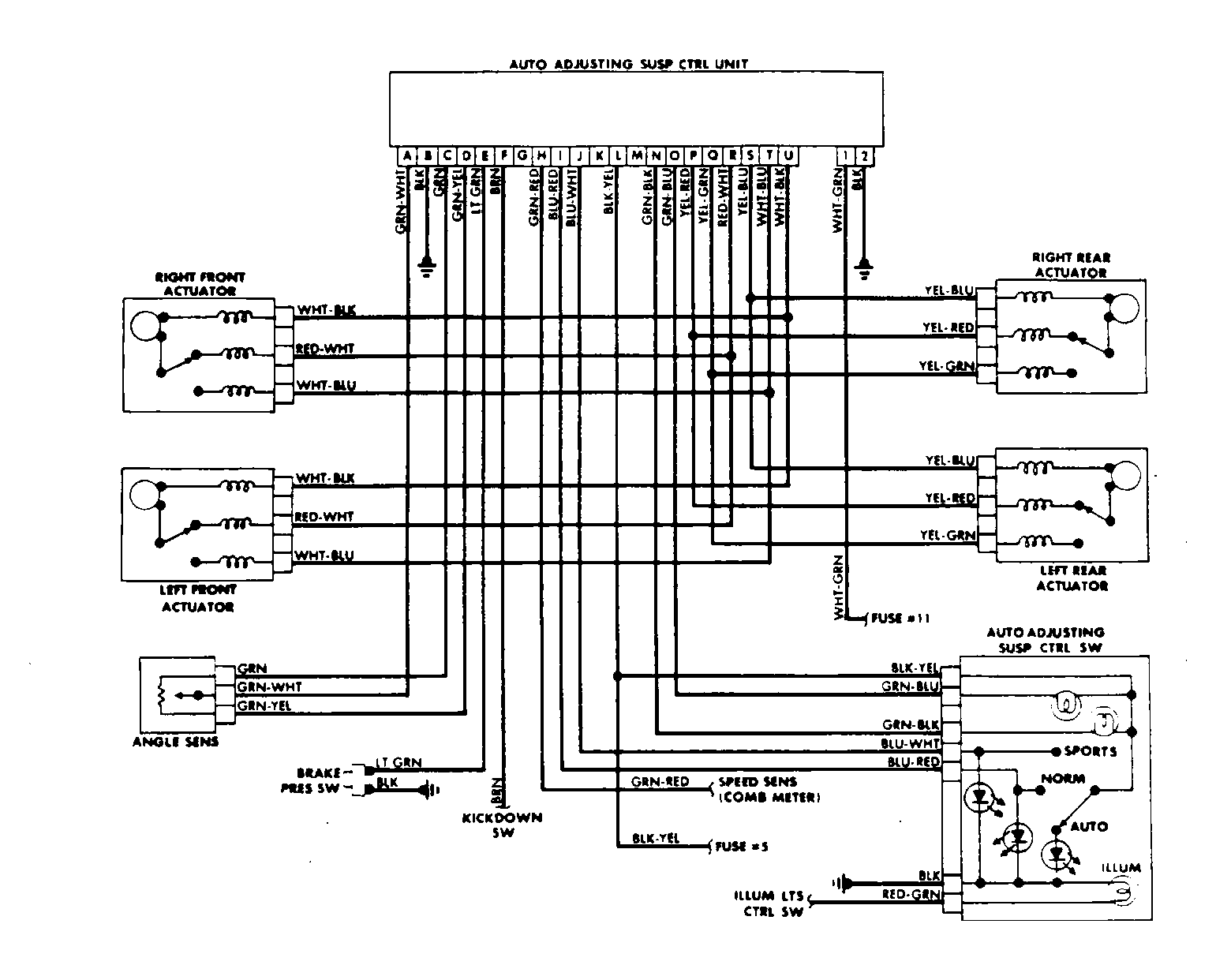

Fig 1: Auto Adjust Suspension (AAS) Wiring Diagram

G52529
