Combination Switch
Disconnect battery ground. Remove steering wheel. Remove column covers and snap ring at top of column (if equipped). Unplug wiring connectors. Loosen combination switch screw. Remove switch. To install, reverse removal procedure.

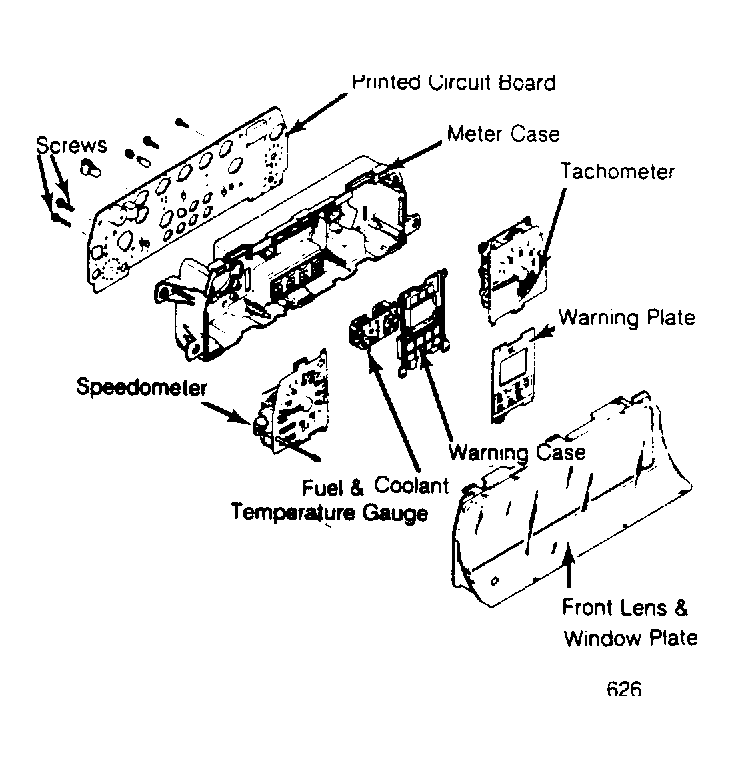

626 DASH CONNECTOR PIN CALLOUT
| Pin Number | Destination | |
|---|---|---|
| Connector "A" | ||
| a-1 | Ground | |
| a-2 | Water Temp. Gauge | |
| a-3 | Light Switch (High Beam) | |
| a-4 | Fuel Tank Unit | |
| a-5 | Ignition Switch (IG#1) | |
| a-6 | Ignition Coil (-) | |
| a-7 | Cruise Control / AAS | |
| a-8 | Seat Belt Warning Timer | |
| a-9 | Panel Light Control | |
| a-10 | Ground | |
| a-11 | Turn Signal (RH) | |
| a-12 | Turn Signal (LH) | |
| Connector "B" | ||
| b-1 | Blank | |
| b-2 | Washer Fluid Level Sensor | |
| b-3 | Blank | |
| b-4 | Alternator | |
| b-5 | Blank | |
| b-6 | Ground | |
| b-7 | Blank | |
| b-8 | Blank | |
| b-9 | EGI Control Unit (Except EC-AT) | |
| b-10 | Blank | |
| b-11 | Ignition Switch (IG#1) | |
| b-12 | Taillight Check Circuit | |
| Connector "C" | ||
| c-1 | Battery (+) | |
| c-2 | Oil Pressure Switch | |
| c-3 | Blank | |
| c-4 | Blank | |
| c-5 | Blank | |
| c-6 | Brake Warning Systems | |
| c-7 | Parking Brake Switch | |
| c-8 | Light Switch | |
| c-9 | EC-AT Control Unit | |
| c-10 | Blank | |
| c-11 | Stop Light Failure Indicator | |
| c-12 | Blank | |
