Continuity Test

  1. Actuator continuity can be tested by probing the sub-harness with an ohmmeter while turning actuator rod. See Fig 1 . In the "NORMAL" mode, verify continuity between terminals "A" and "C". There should be no continuity between terminals "B" and "C".
  2. In the "SPORT" mode, with actuator rod perpendicular to bracket, continuity should exist between sub-harness terminals "B" and "C". Verify that no continuity exists between terminals "A" and "C".

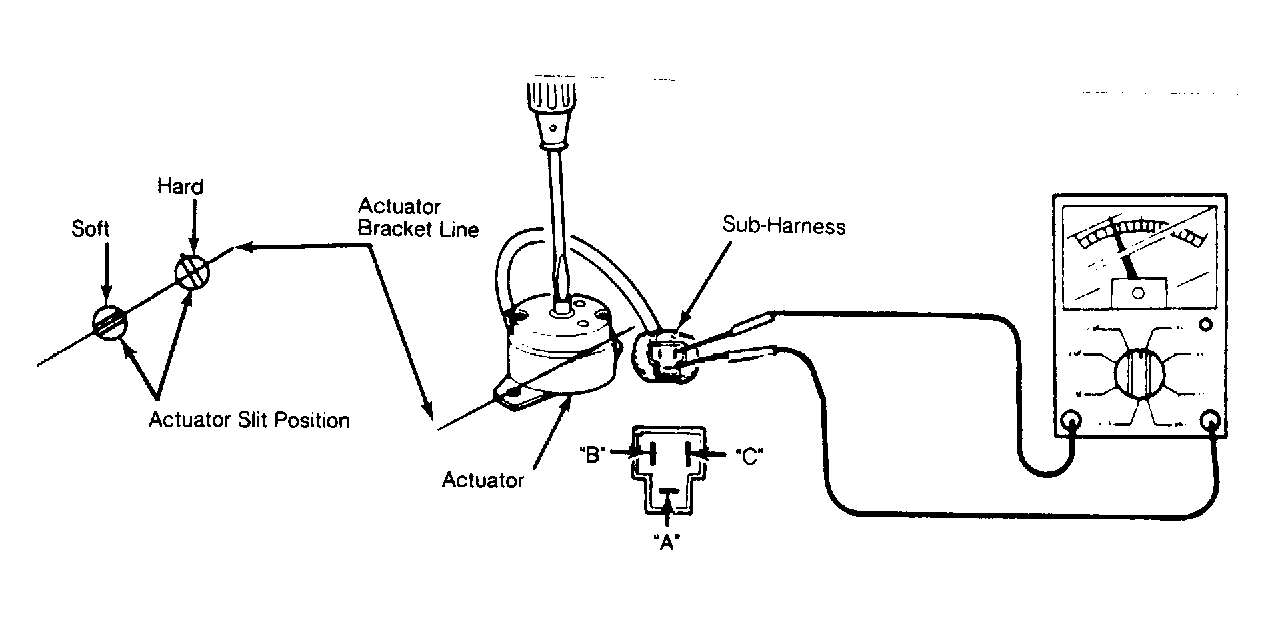

Fig 1: Actuator Testing & Terminal Identification
G58736
