Wiring Diagrams

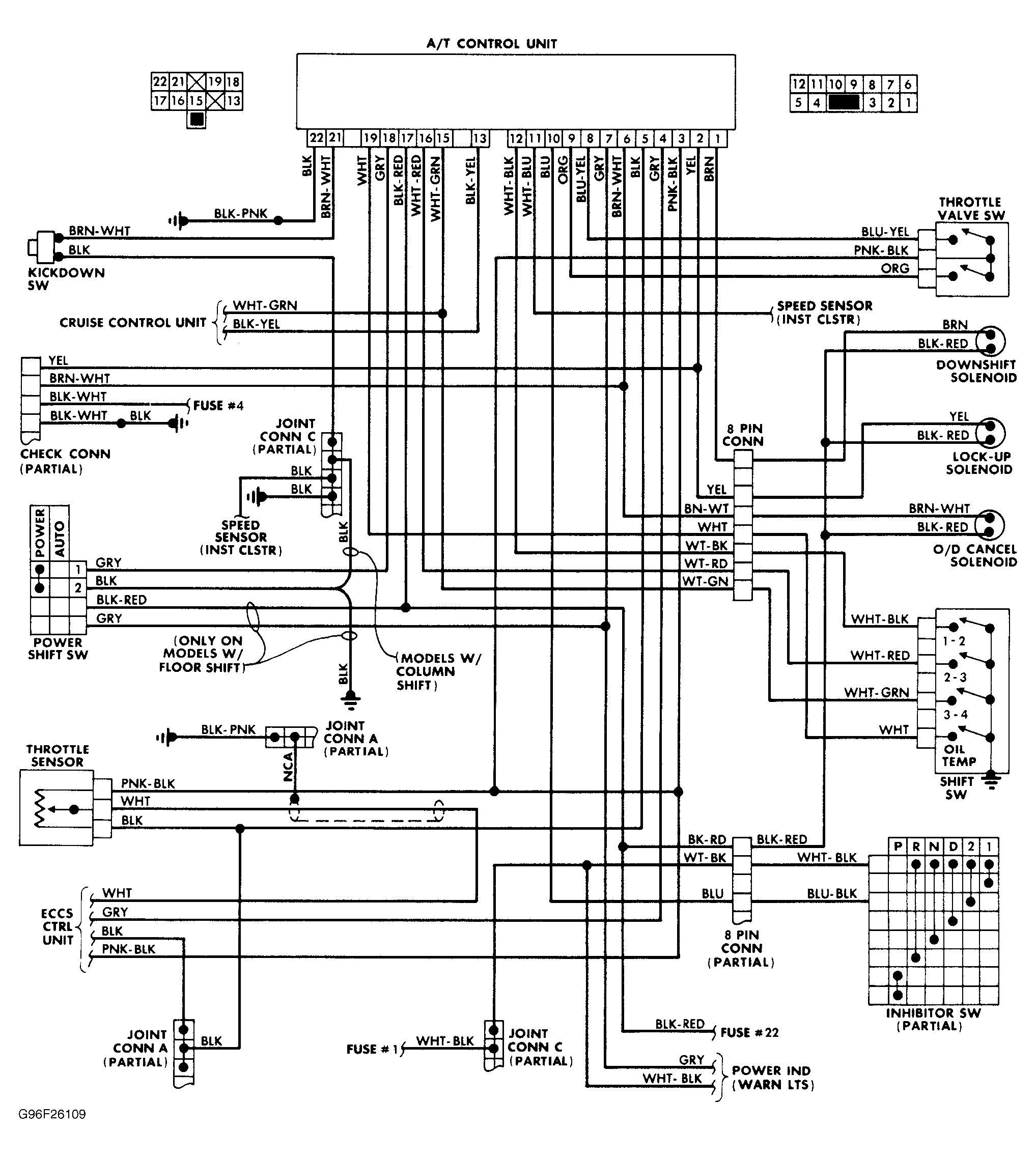

Fig 1: Transmission Electronic Control System Wiring Diagram (1986 1/2 Pickup - With Z24i Engine)

Courtesy of NISSAN MOTOR CO., U.S.A.

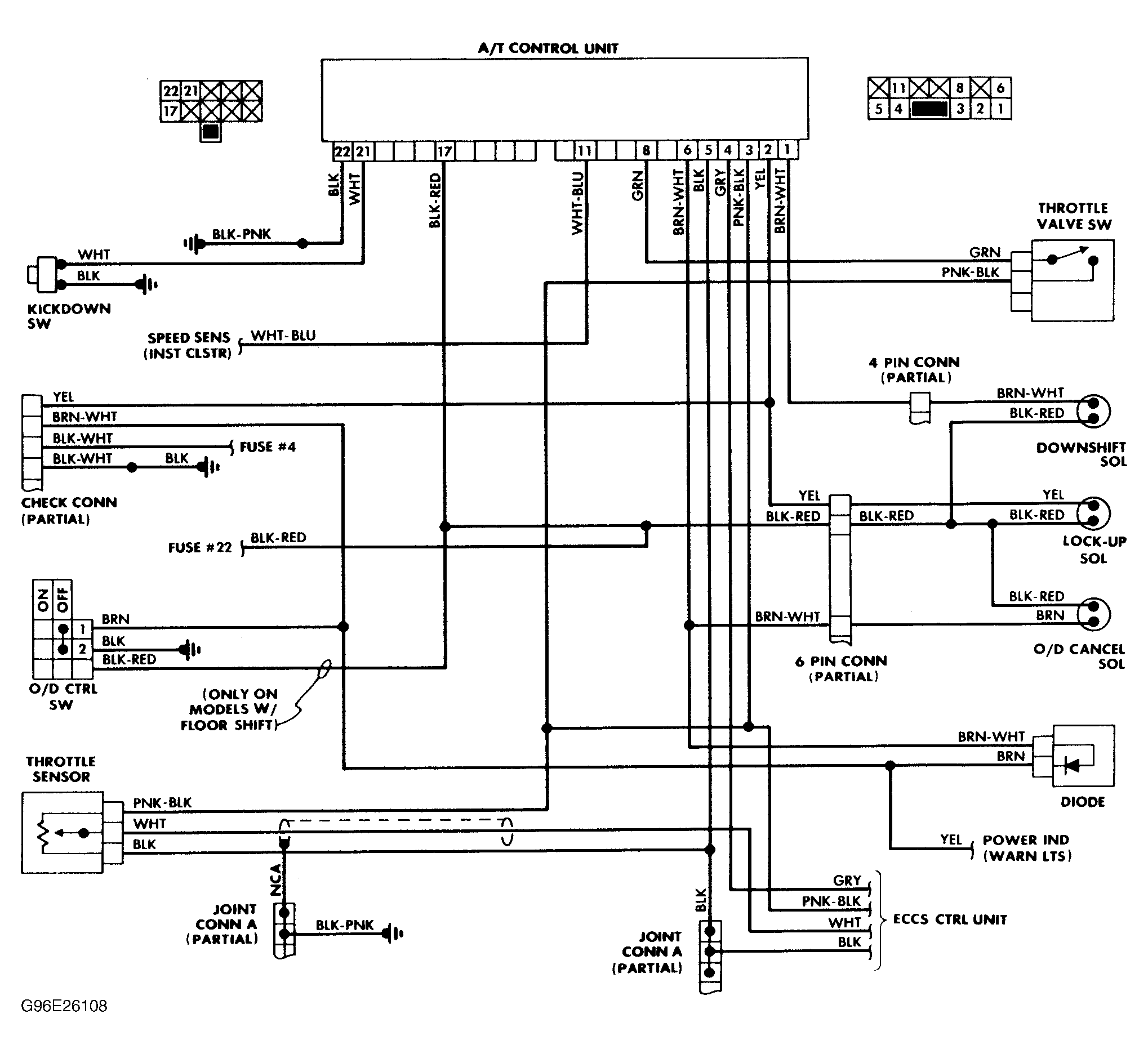

Fig 2: Transmission Electronic Control System Wiring Diagram (1986 1/2 Pickup - With VG30i Engine)

Courtesy of NISSAN MOTOR CO., U.S.A.

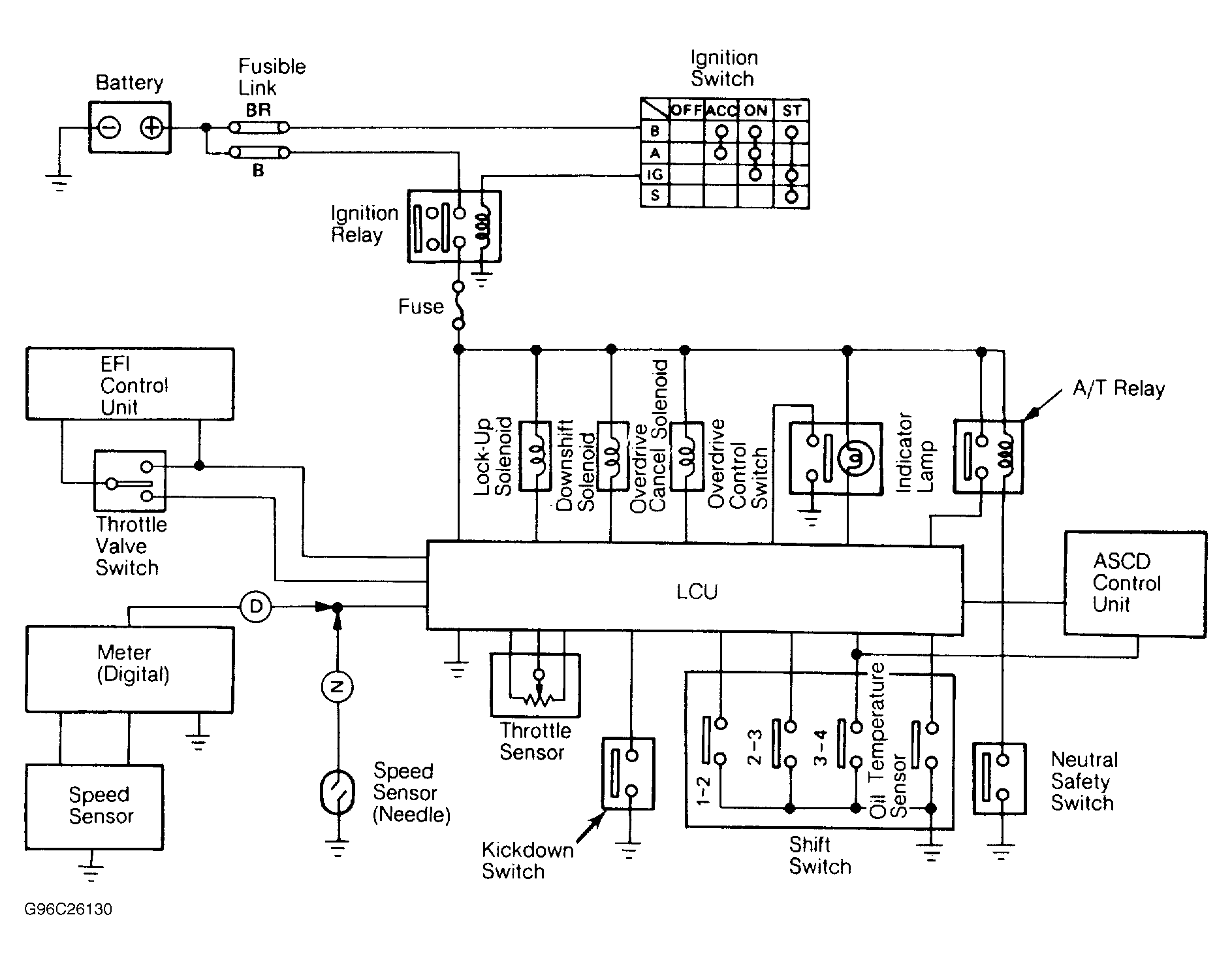

Fig 3: Transmission Electronic Control System Wiring Diagram (1986 200SX - LCU System)

Courtesy of NISSAN MOTOR CO., U.S.A.

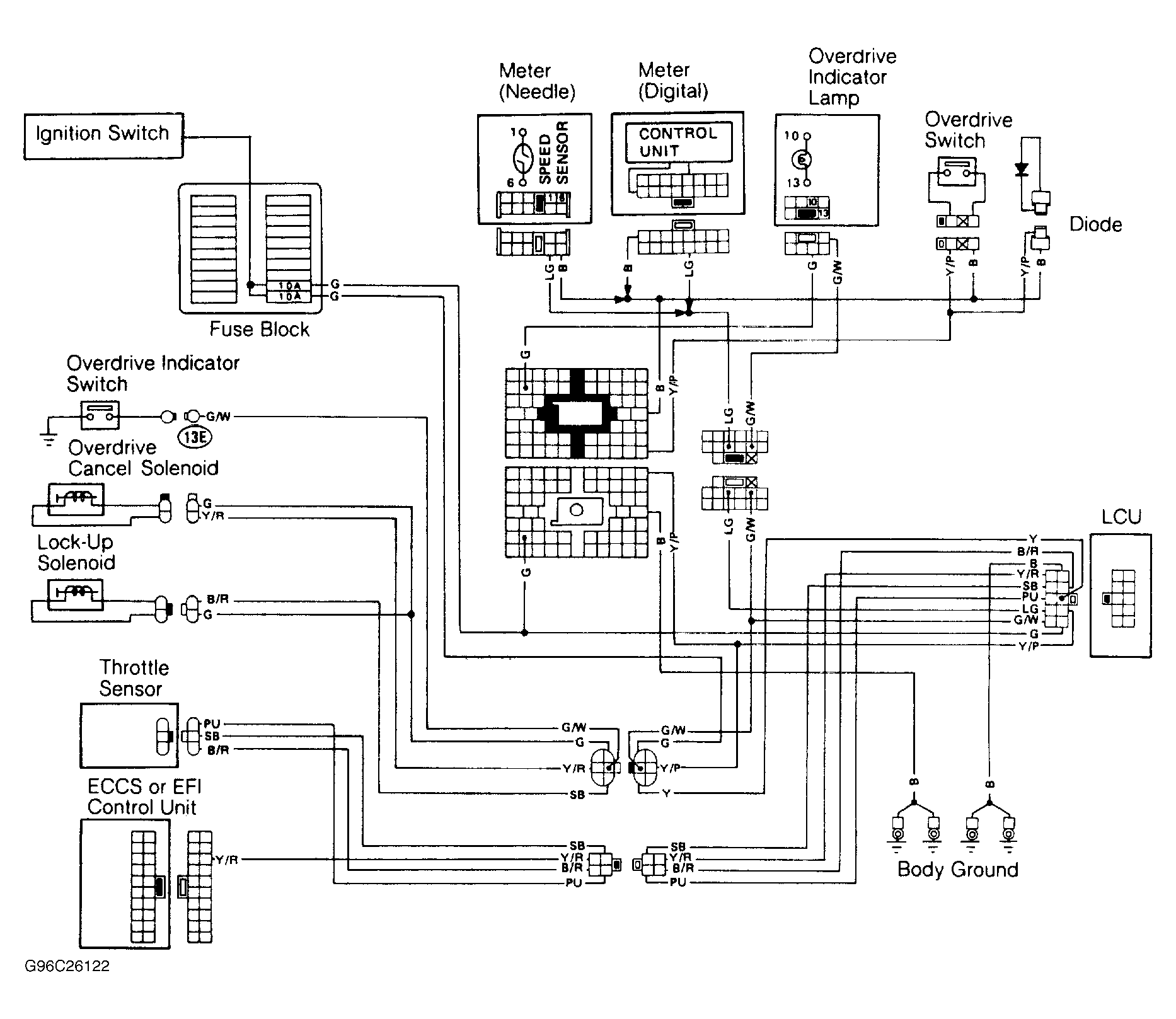

Fig 4: Transmission Electronic Control System Wiring Diagram (1986 300ZX - LCU System)

Courtesy of NISSAN MOTOR CO., U.S.A.
