Shift Speed Specifications

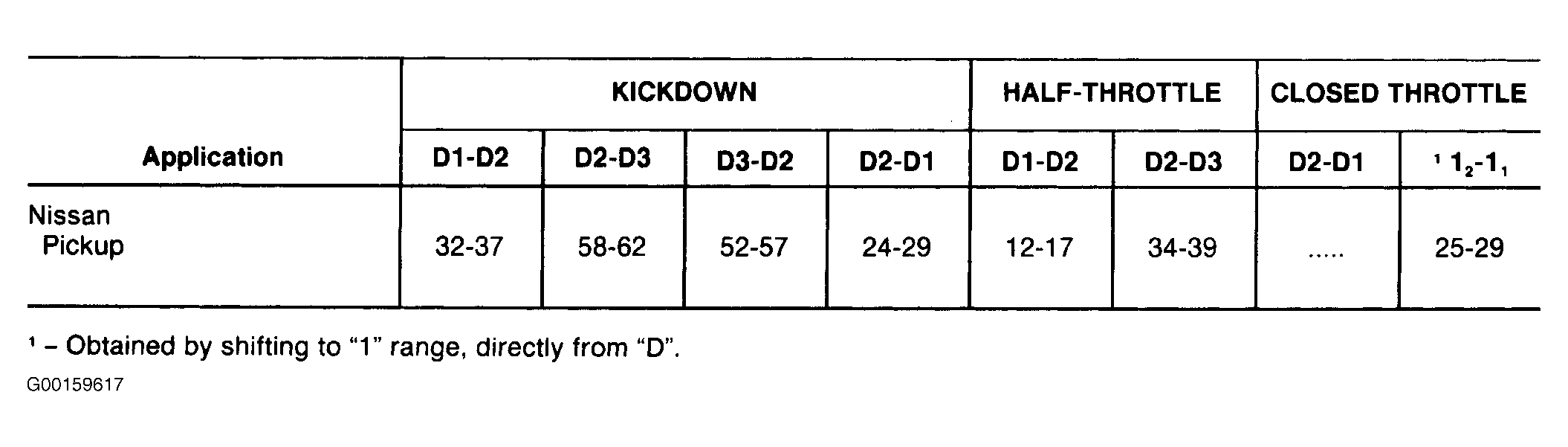

Fig 1: Shift Speed Specifications (L3N71B Transmission)

G00159617

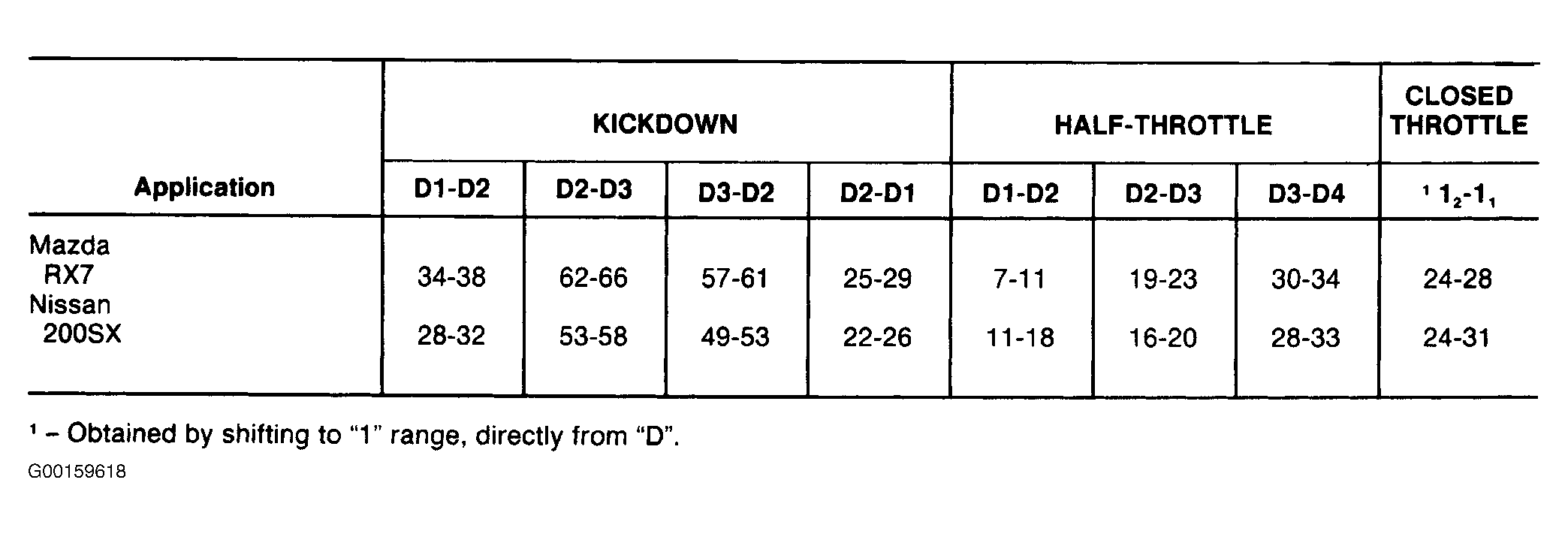

Fig 2: Shift Speed Specifications (L4N71B Transmission)

G00159618

FULL THROTTLE SHIFT SPEEDS (PICKUP - 1986 1/2 4-CYL.)

Gearshift	Vehicle Speed (MPH)
D1-D2	33-35
D2-D3	60-65
D3-D2	48-53
D2-D1	25-29

FULL THROTTLE SHIFT SPEEDS (PICKUP - 1986 1/2 V6)

Gearshift		Vehicle Speed (MPH)
Floor Shift
D1-D2		41-46
D2-D3		71-76
D3-D2		64-70
D2-D1		29-34
Column Shift
D1-D2		34-38
D2-D3		58-62
D3-D2		53-57
D2-D1		24-28

FULL THROTTLE SHIFT SPEEDS (RX7)

Gearshift	Vehicle Speed (MPH)
D1-D2	34-38
D2-D3	62-66
D3-D2	57-61
D2-D1	25-29

FULL THROTTLE SHIFT SPEEDS (200SX)

Gearshift	Vehicle Speed (MPH)
D1-D2	28-32
D2-D3	53-58
D3-D2	49-53
D2-D1	22-26

FULL THROTTLE SHIFT SPEEDS (300ZX - NON-TURBO)

Gearshift	Vehicle Speed (MPH)
D1-D2	37-42
D2-D3	63-68
D3-D2	55-60
D2-D1	26-31

FULL THROTTLE SHIFT SPEEDS (300ZX - TURBO)

Gearshift	Vehicle Speed (MPH)
D1-D2	35-40
D2-D3	58-63
D3-D2	52-57
D2-D1	27-32

Fig 3: Shift Speed Graph (Pickup - 1986 1/2 With Z24i Engine)

G96F26133

Courtesy of NISSAN MOTOR CO., U.S.A.

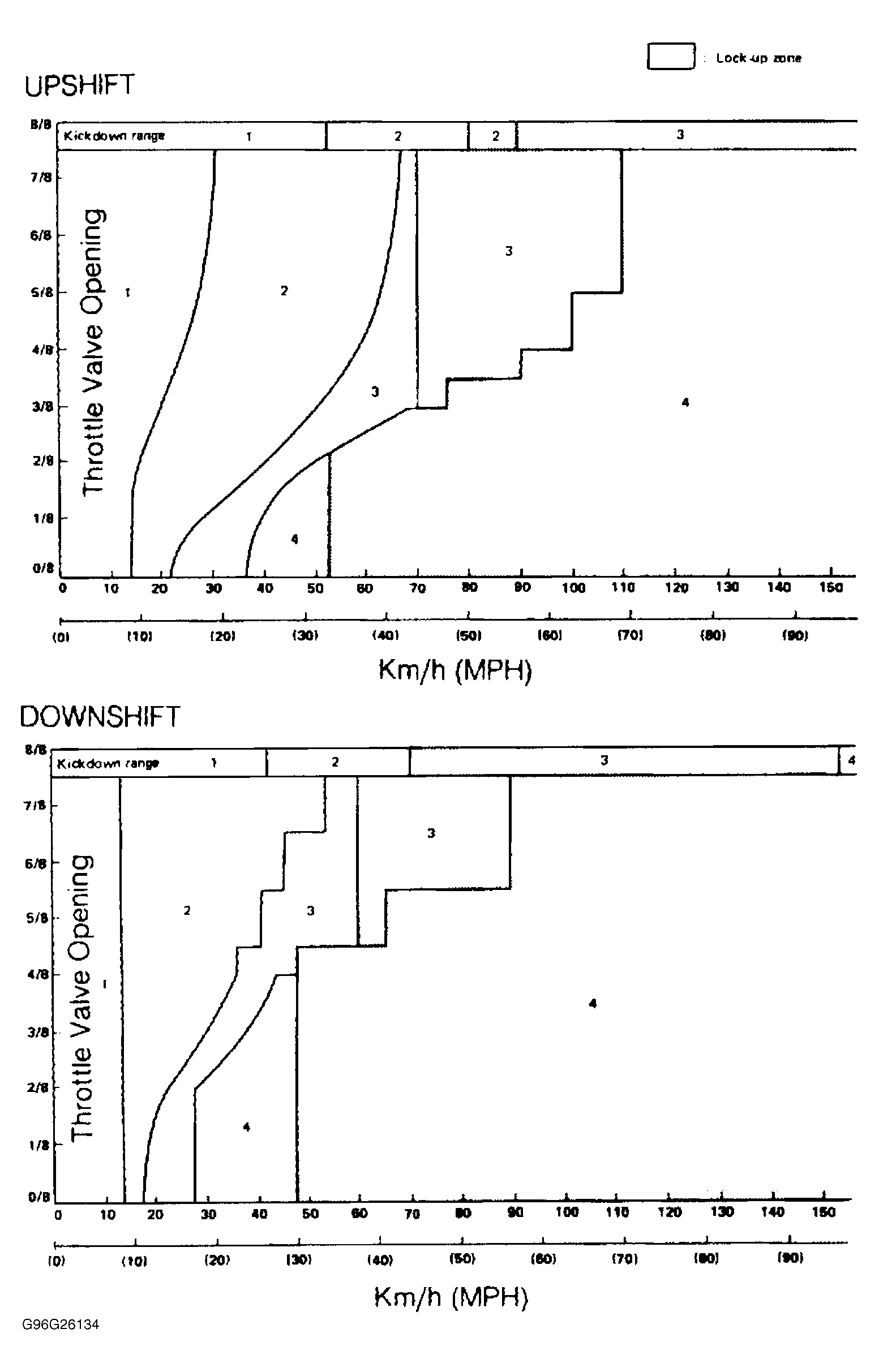

Fig 4: Shift Speed Graph (Pickup - 1986 1/2 With VG30i Engine; Column Shift, Standard Pattern)

G96G26134

Courtesy of NISSAN MOTOR CO., U.S.A.

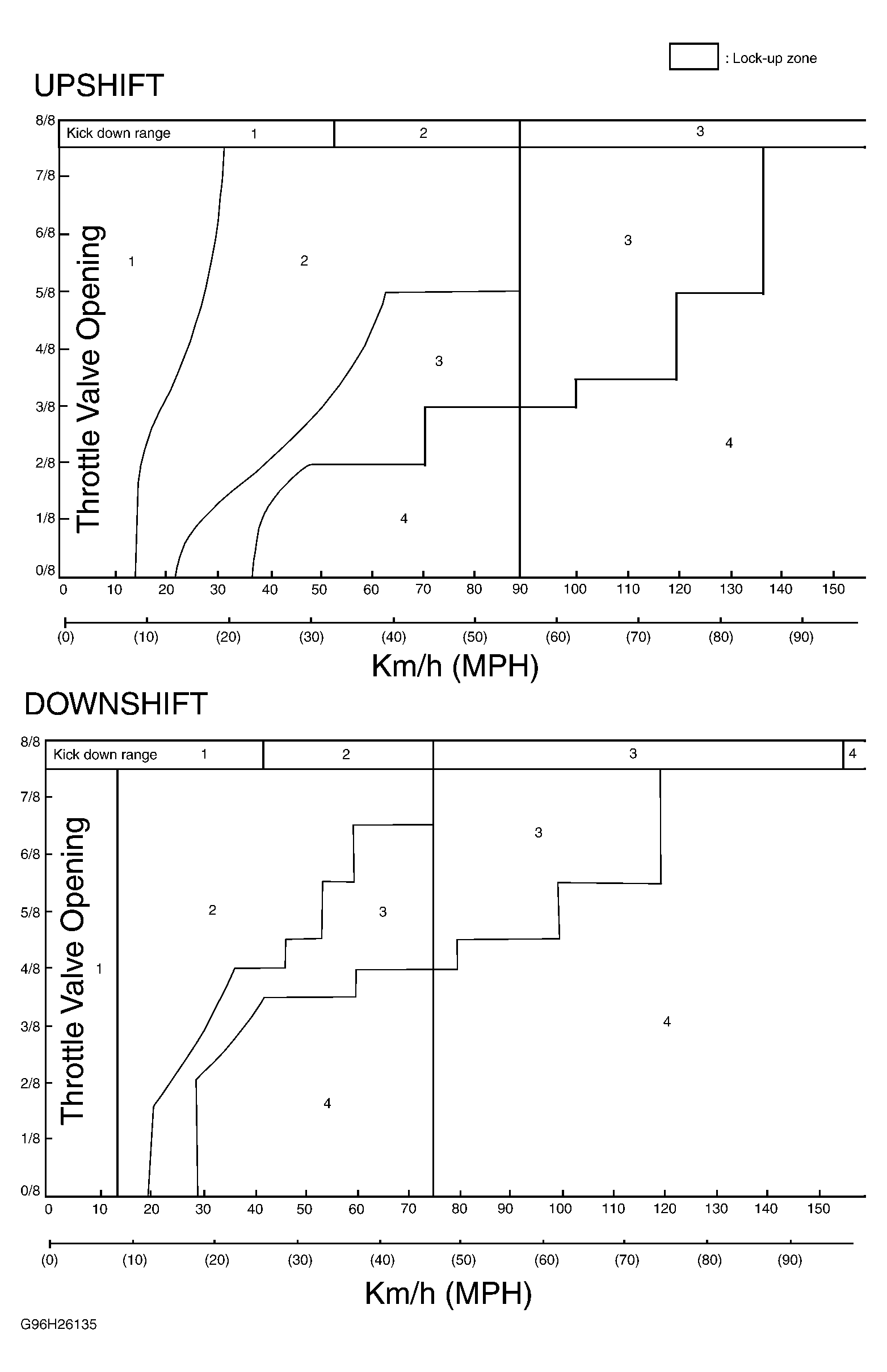

Fig 5: Shift Speed Graph (Pickup - 1986 1/2 With VG30i Engine; Column Shift, Power Pattern)

G96H26135

Courtesy of NISSAN MOTOR CO., U.S.A.

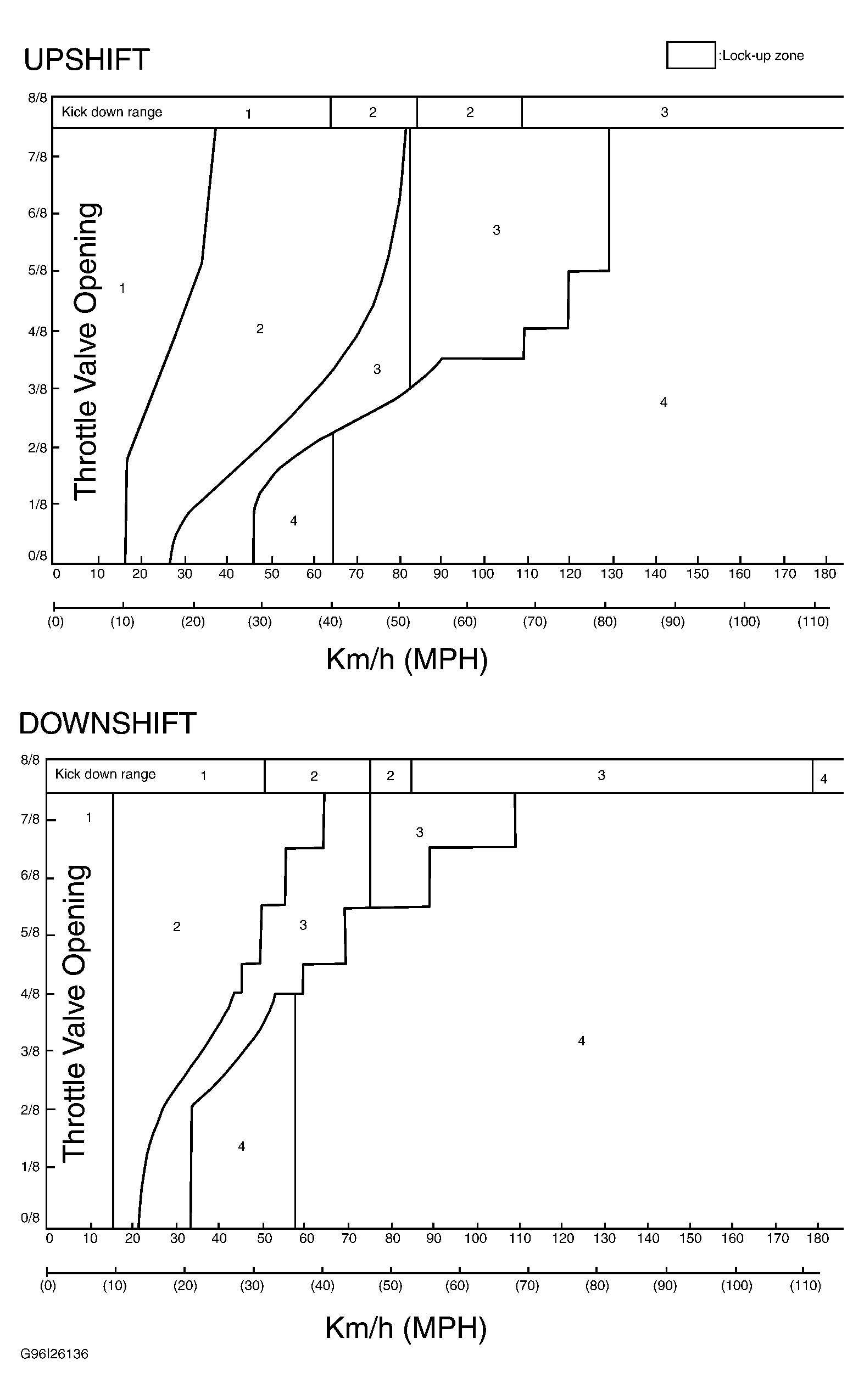

Fig 6: Shift Speed Graph (Pickup - 1986 1/2 With VG30i Engine; Floor Shift, Standard Pattern)

G96I26136

Courtesy of NISSAN MOTOR CO., U.S.A.

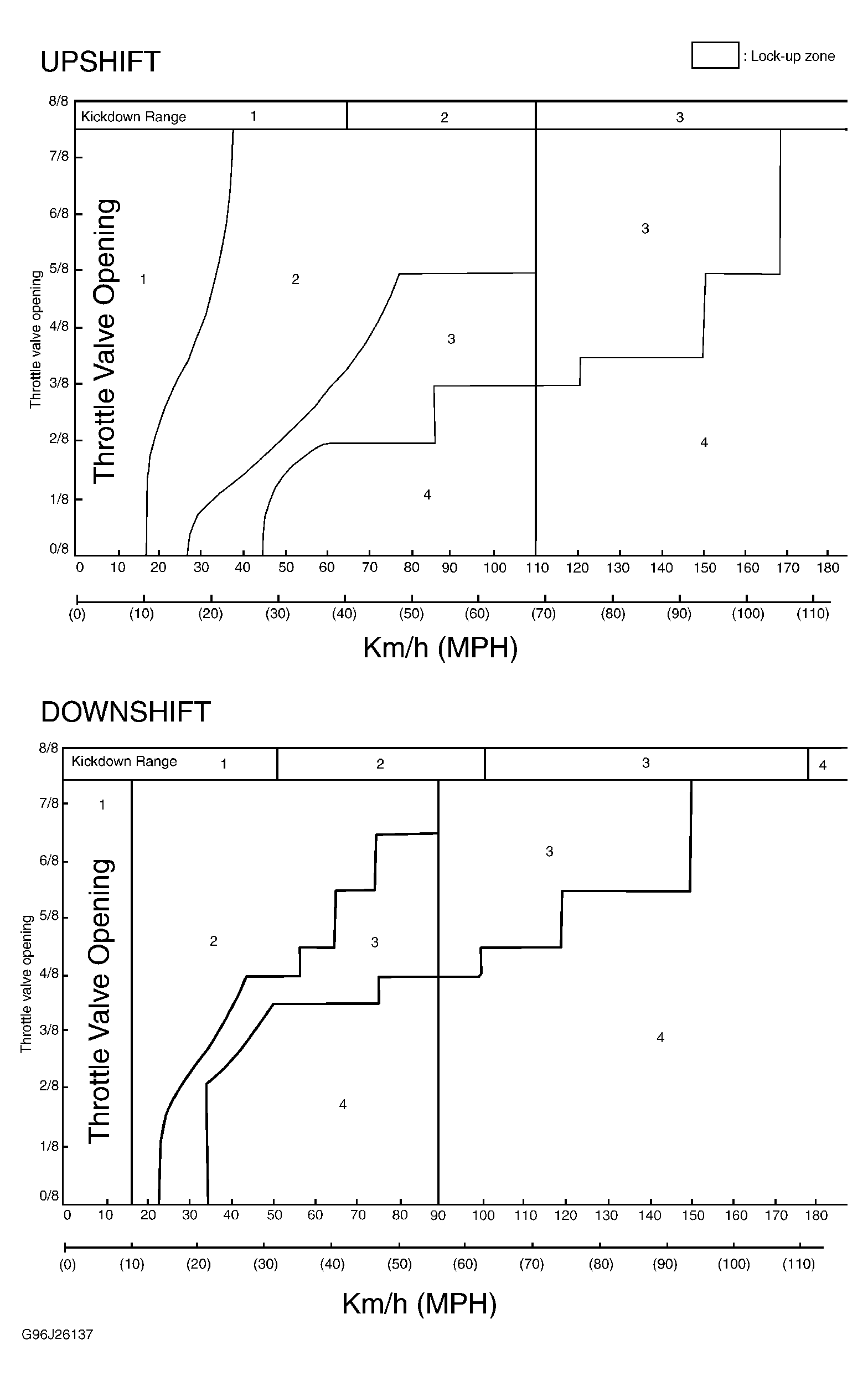

Fig 7: Shift Speed Graph (Pickup - 1986 1/2 With VG30i Engine; Floor Shift, Power Pattern)

G96J26137

Courtesy of NISSAN MOTOR CO., U.S.A.

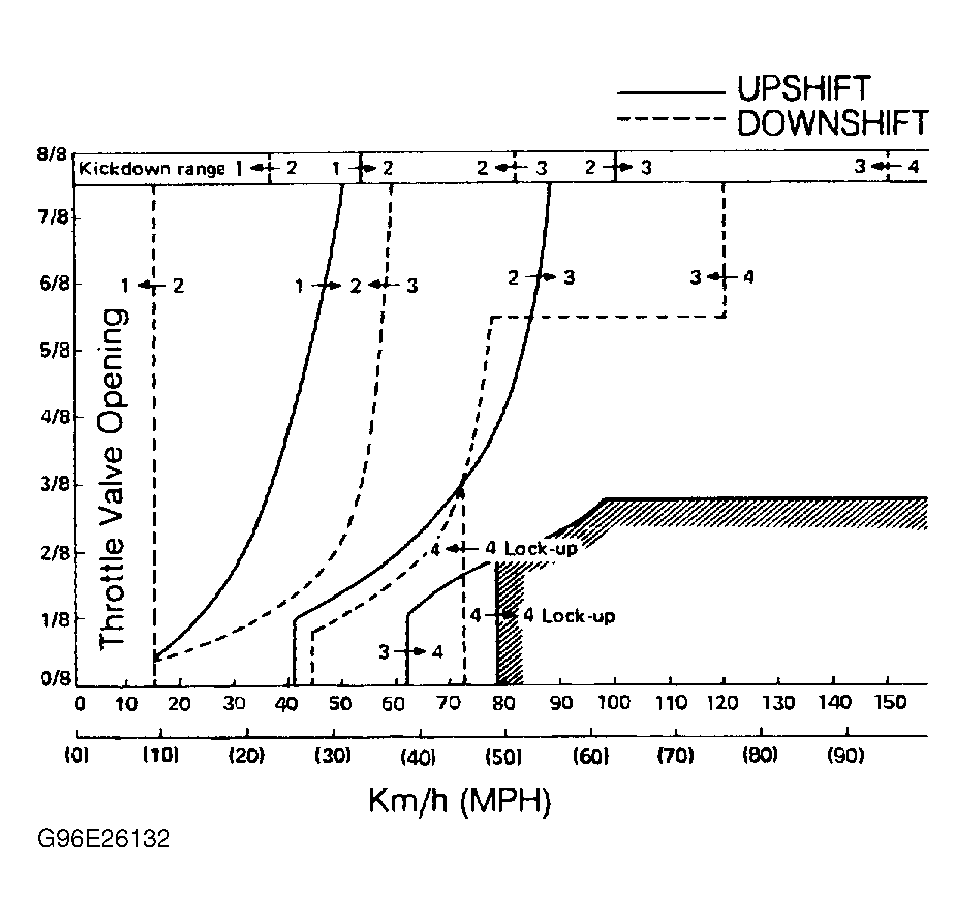

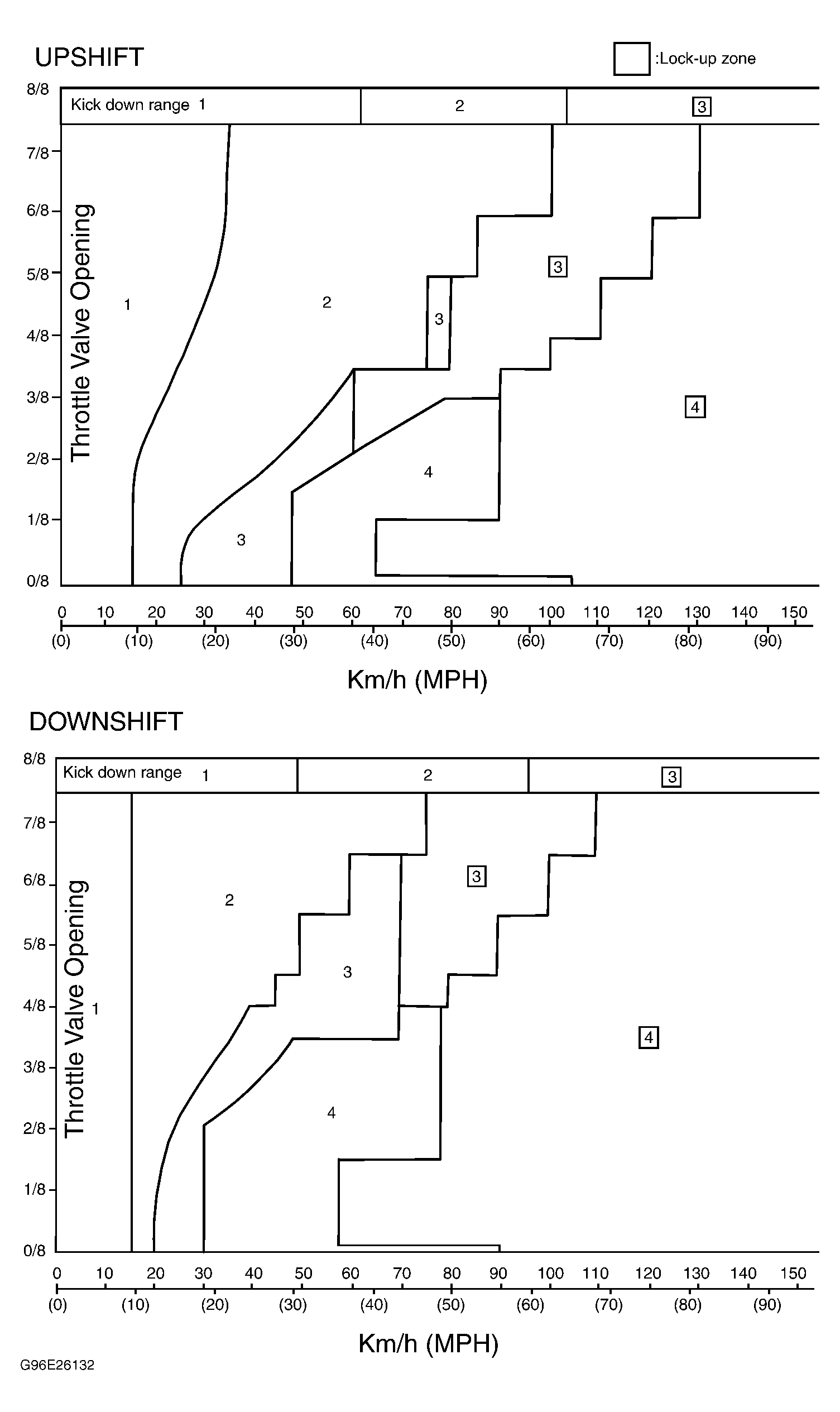

Fig 8: Shift Speed Graph (300ZX - Non-Turbo)

G96E26132

Courtesy of NISSAN MOTOR CO., U.S.A.

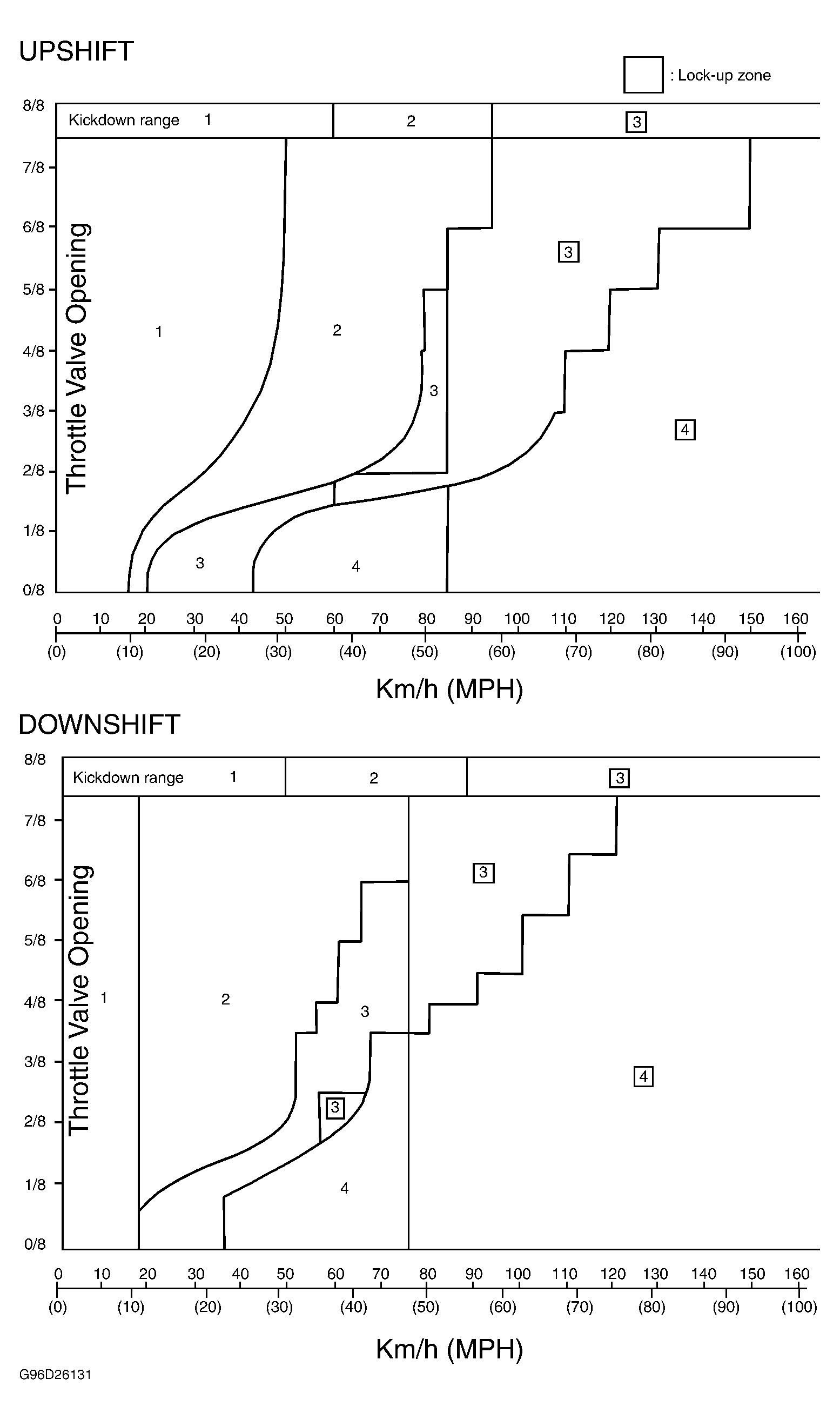

Fig 9: Shift Speed Graph (300ZX - Turbo)

G96D26131

Courtesy of NISSAN MOTOR CO., U.S.A.
