Disassembly & Reassembly

Remove bearing and snap ring. Remove rear planetary carrier, bearing race and bearing. Remove one-way clutch retaining snap ring and separate one-way clutch outer race from connecting drum. Remove one-way clutch snap rings and separate inner one-way clutch from outer race. See Fig 1 . Reverse disassembly procedure for reassembly.

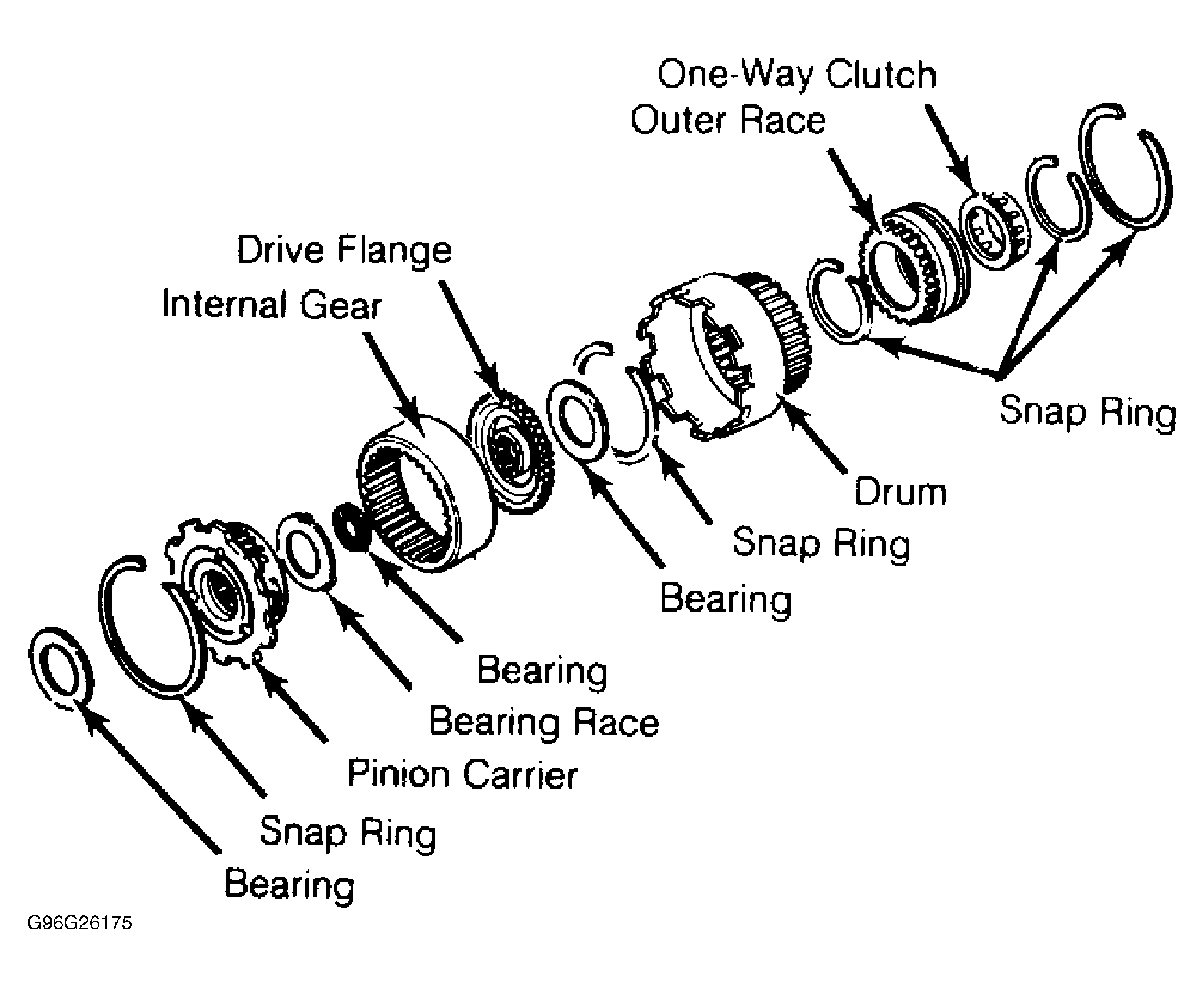

Fig 1: Exploded View Of Rear Planetary Gear (RX7)

Courtesy of MAZDA MOTOR CORP.
