Disassembly (Except L3N71B)

  1. Remove snap ring. Remove clutch pack and note position, number of friction and steel plates and sequence of friction-to-steel plate location. Number of plates and sequence is different per model and must be reassembled properly. See Fig 1 .
  2. Using Spring Compressor (J26063), compress clutch springs and remove snap ring. Remove spring compressor. Mount clutch on drum support. Apply air pressure to drum support and remove piston from drum assembly.

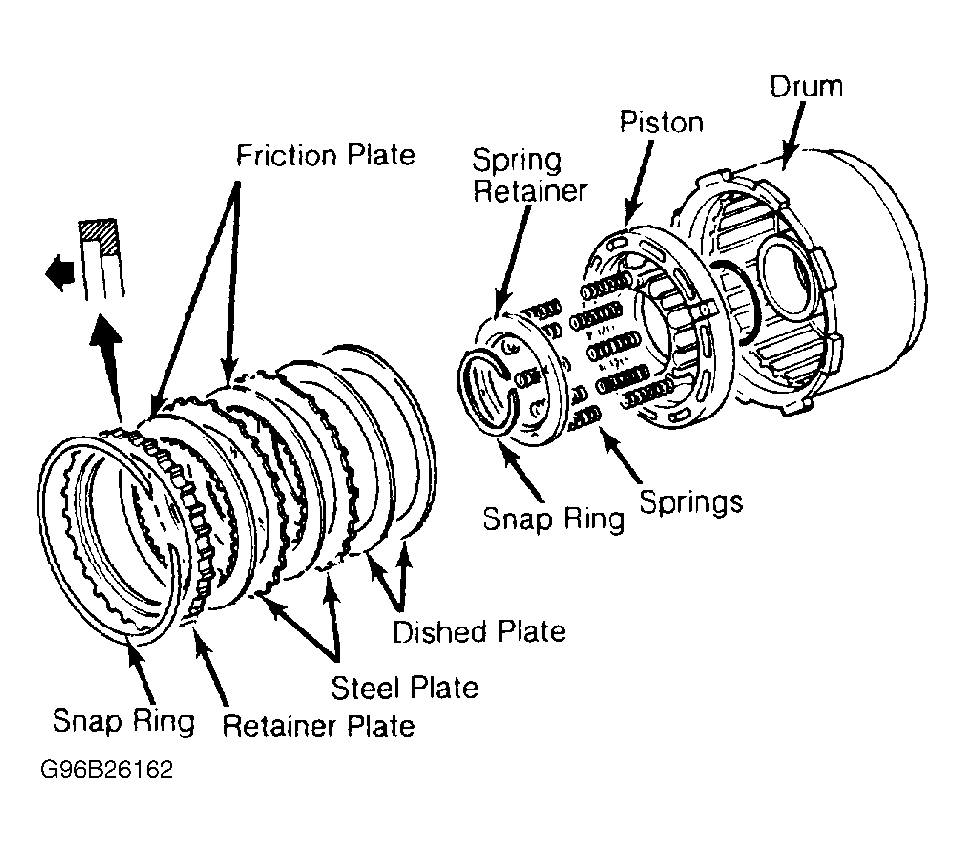

Fig 1: Exploded View Of Direct Clutch Assembly (Except E4N71B)
G96B26162Courtesy of MAZDA MOTOR CORP.
