Band Servo Piston: Disassembly

Remove bolts or snap ring retaining band servo assembly to transmission. Remove cover or piston as an assembly. Use care as some pistons are under spring pressure. If servo is difficult to remove from case, apply air pressure to oil hole. See Fig 1 -Fig 4 .

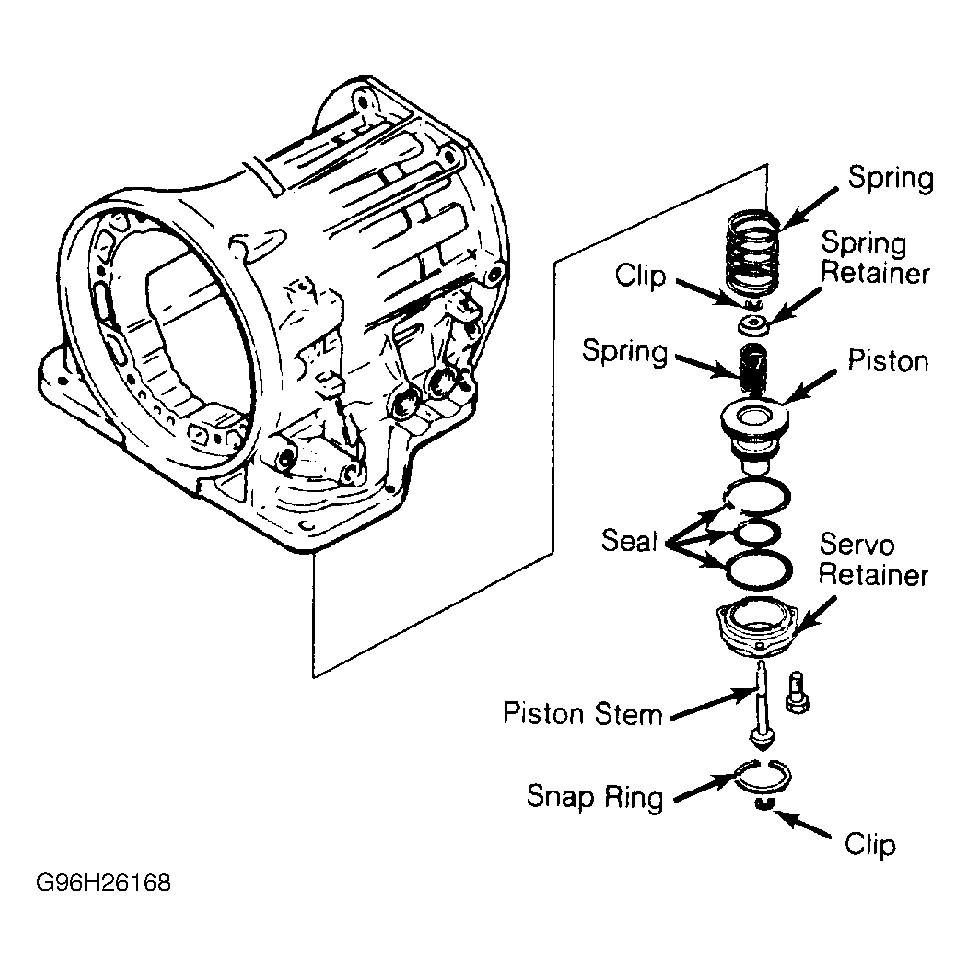

Fig 1: Exploded View Of Brake Band Servo Assembly

Courtesy of MAZDA MOTOR CORP.

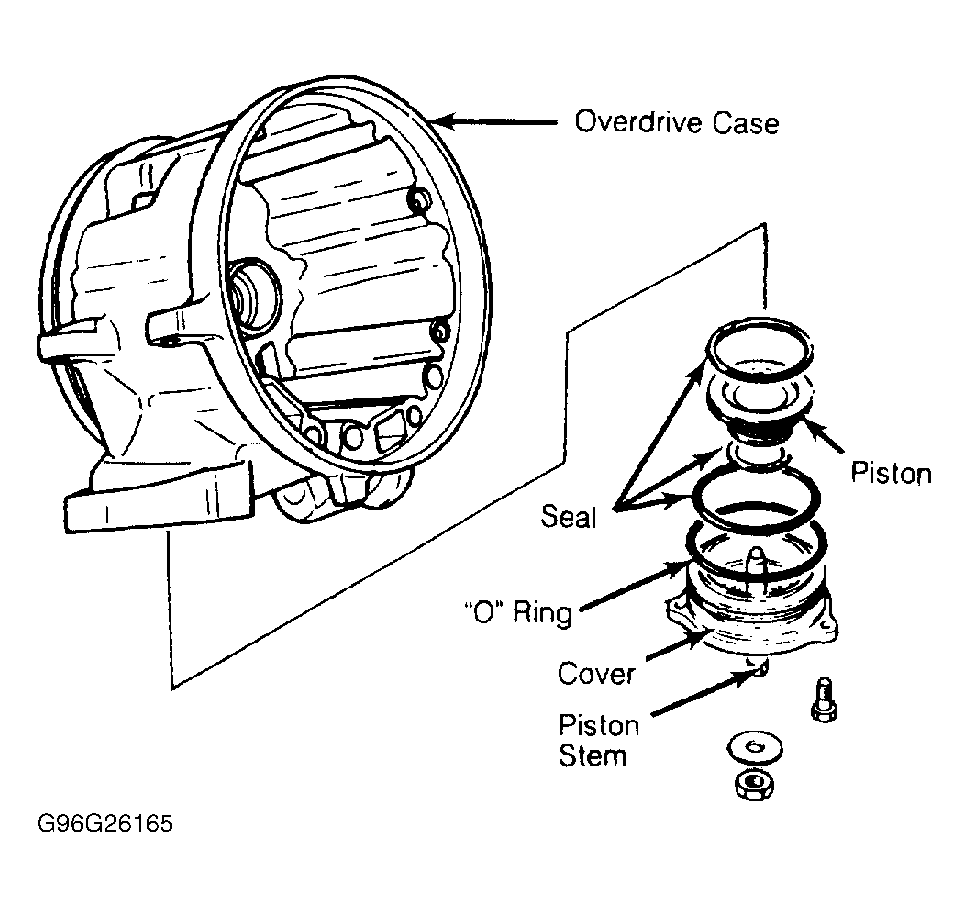

Fig 2: Exploded View Of Overdrive Servo Assembly (RX7)

Courtesy of MAZDA MOTOR CORP.

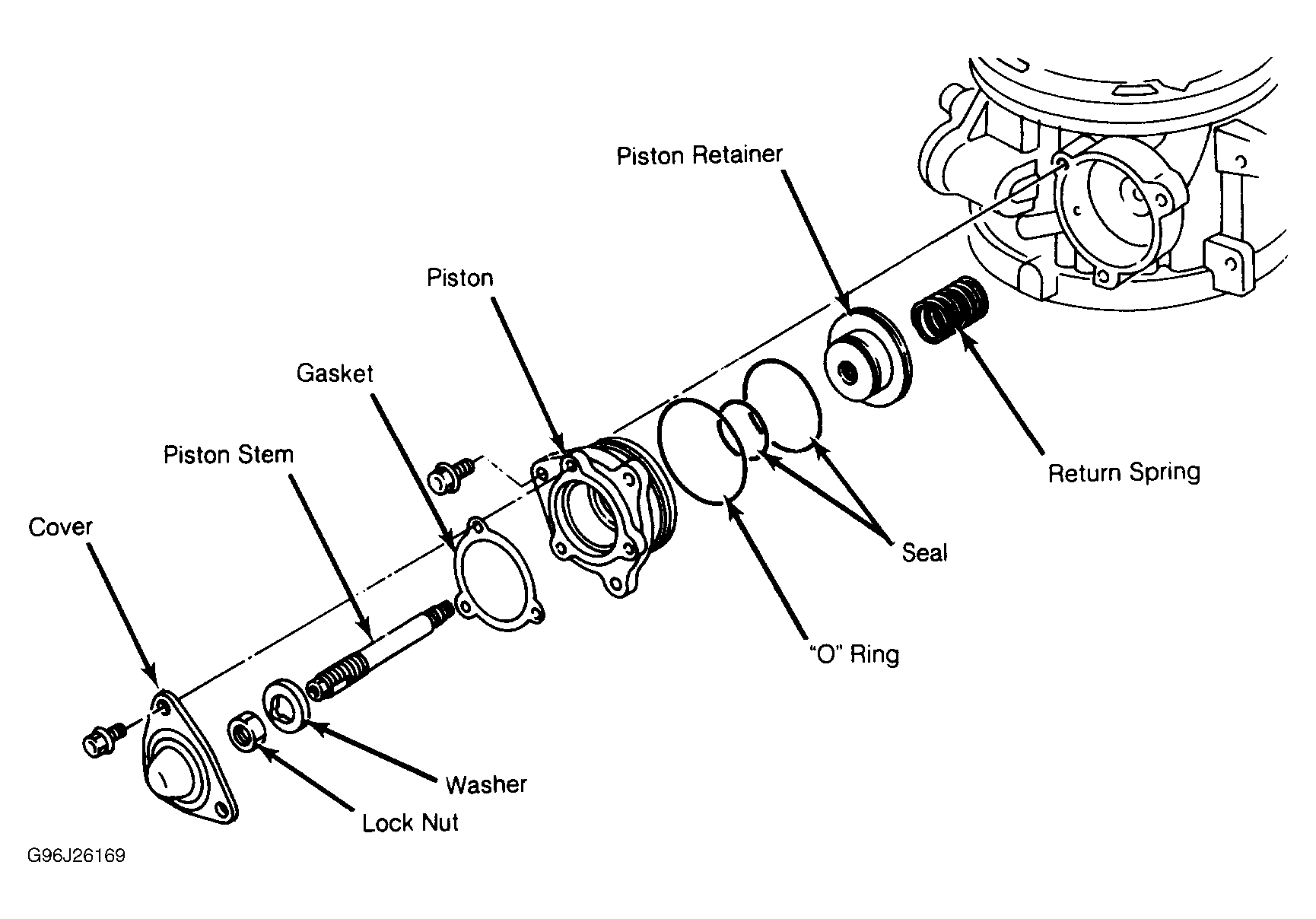

Fig 3: Exploded View Of 2nd Band Servo Assembly (RX7)

Courtesy of MAZDA MOTOR CORP.

Fig 4: Exploded View Of Overdrive Servo Assembly (1986 1/2 Pickup)

Courtesy of MAZDA MOTOR CORP.
