Combination Switch

Disconnect battery ground. Remove steering wheel. Remove column covers and snap ring at top of column (if equipped). Unplug wiring connectors. Loosen combination switch screw. Remove switch. To install, reverse removal procedure.

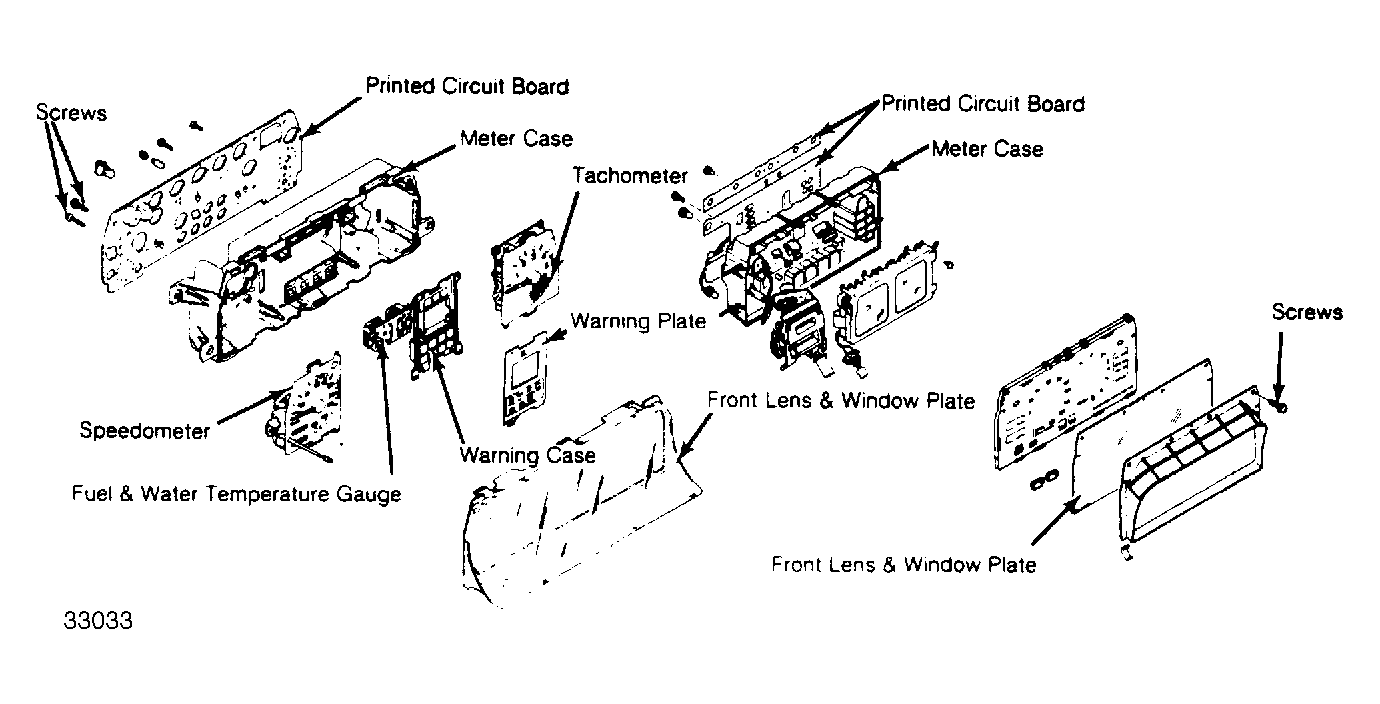

Fig 1: Exploded View of Mazda 323 & 626 Instrument Cluster Pickup and RX7 instrumentation is similar to 626. Courtesy of Mazda Motors Corp.
