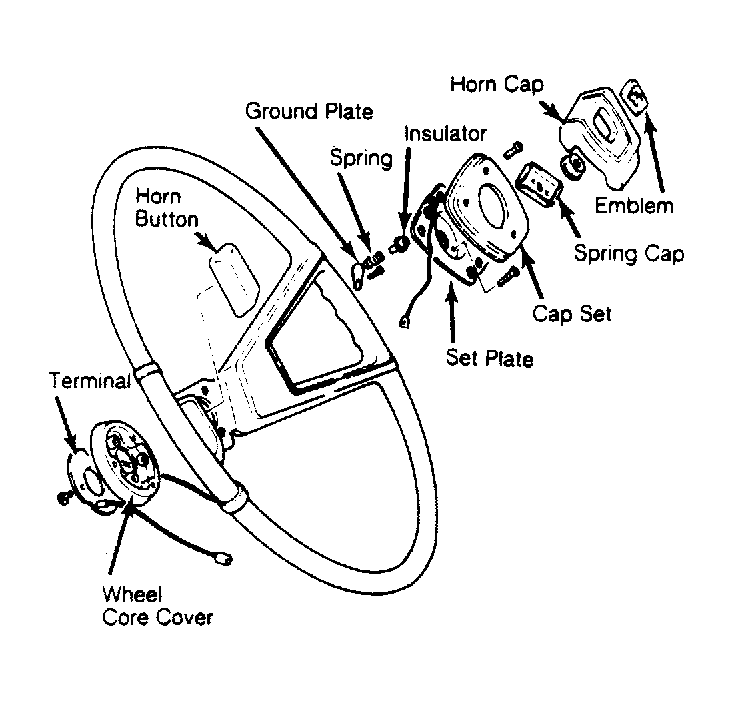

Steering Wheel & Combination Switch: Removal
- Disconnect battery ground cable. Pull off horn cap. Place front wheels in straight-ahead position. Index mark column shaft and steering wheel.
- Remove steering column shrouding. Disconnect electrical connectors. To disconnect electrical connections on RX7, remove air duct at base of steering column.
- On all models, remove steering shaft stop ring, cancel cam and spring. Remove retaining screws and combination switch assembly.
NOTE:
Wiper switch can be removed with, or without, combination switch attached. Installation
To install, reverse removal procedure.
