Temperature Sender

With sending unit removed from vehicle, place in container of water, and heat to 176°F (80°C). Measure resistance to verify 49-58 ohms. If not, replace sender.

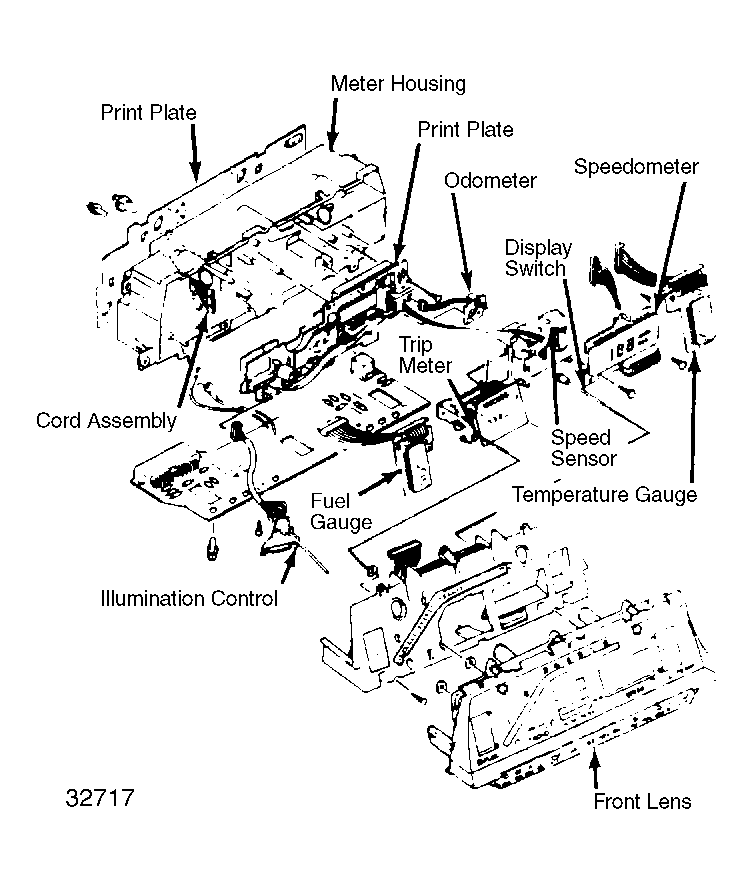

Fig 1: Exploded View of Mazda Electronic Instrumentation
G32717
