Wiring Diagrams

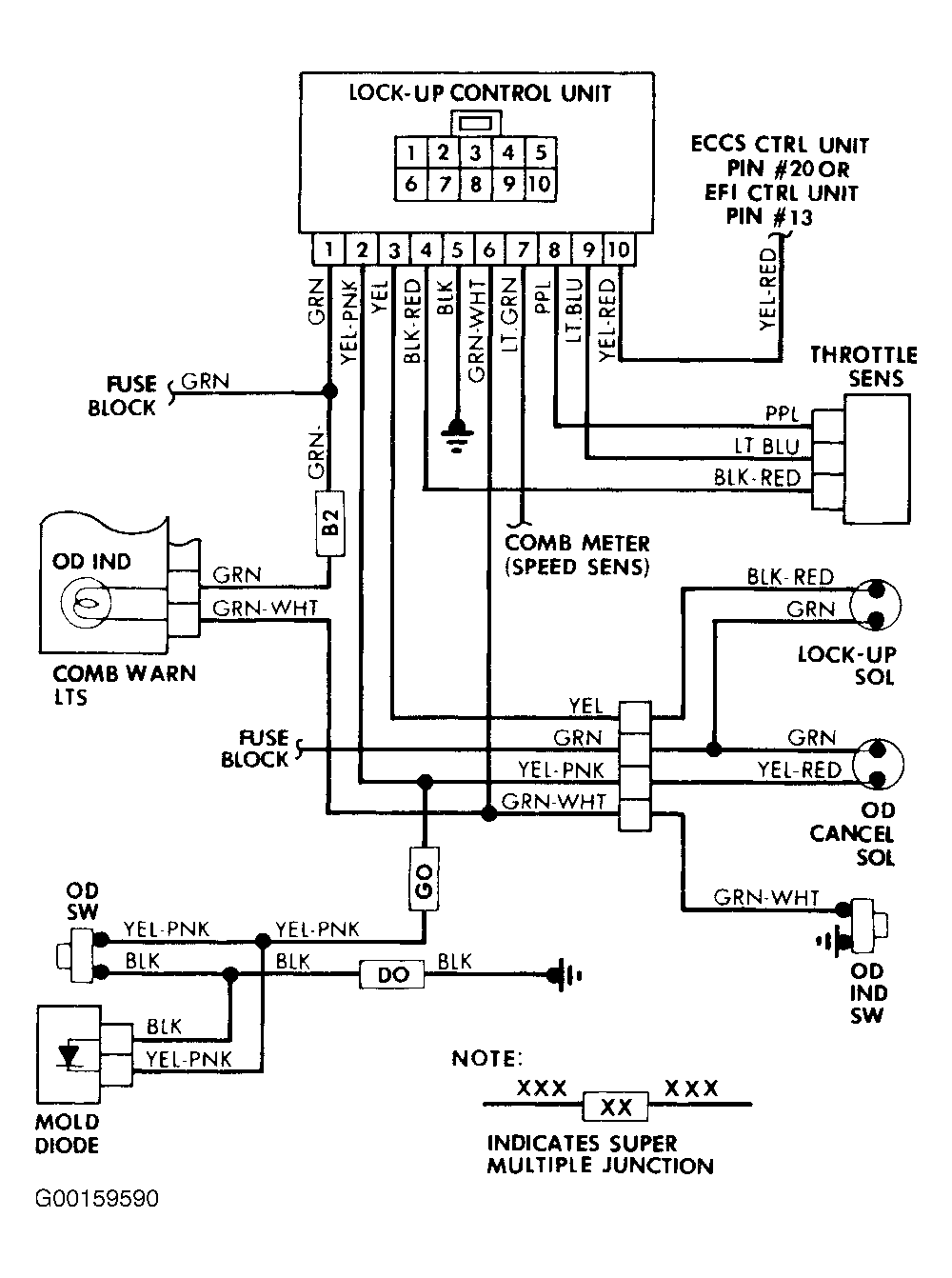

Fig 1: A/T Lock-Up Control Circuit Wiring Diagram (200SX)

G00159590

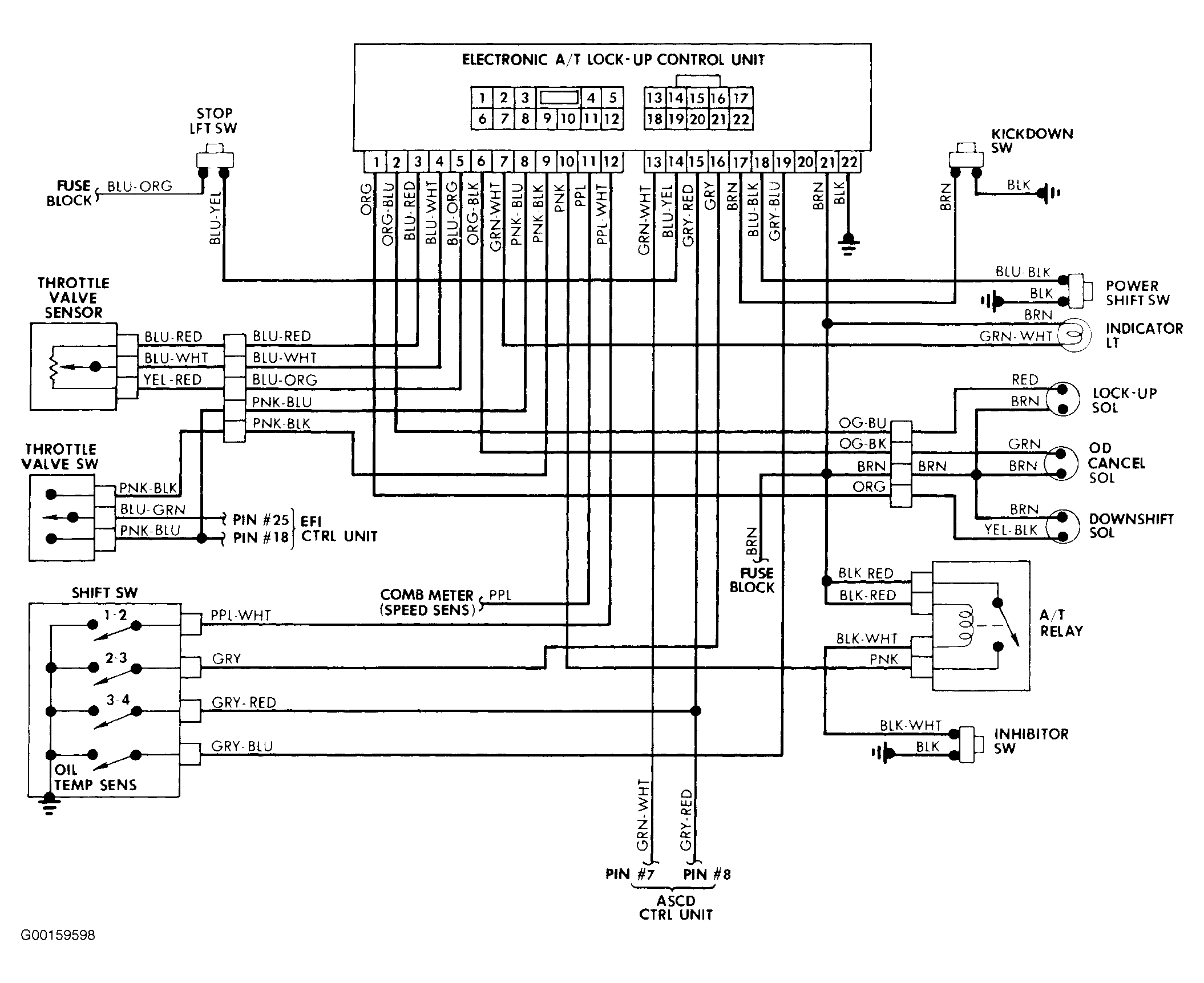

Fig 2: A/T Lock-Up Control Circuit Wiring Diagram (300ZX)

G00159598
