Clutch & Band Application

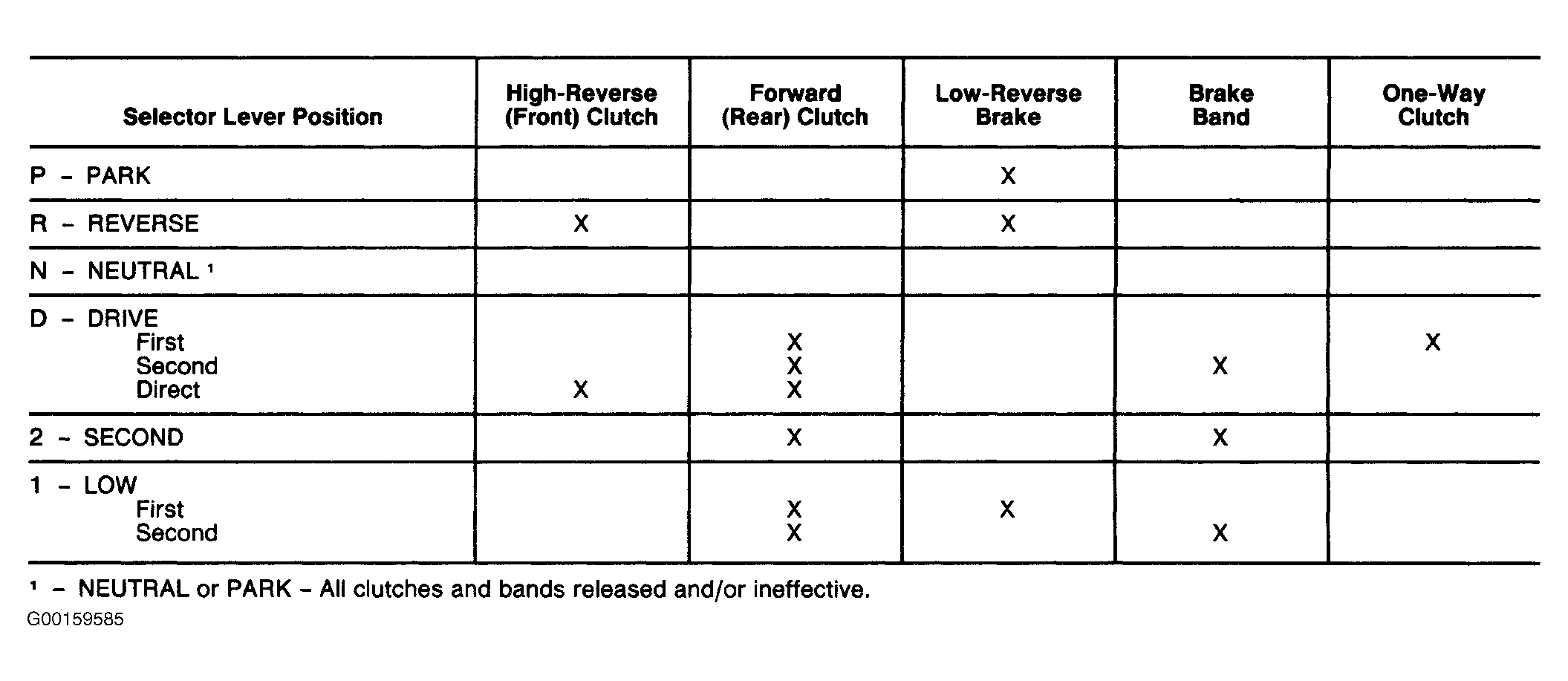

Fig 1: Clutch & Band Application Table (3N71B & L3N71B)

G00159585

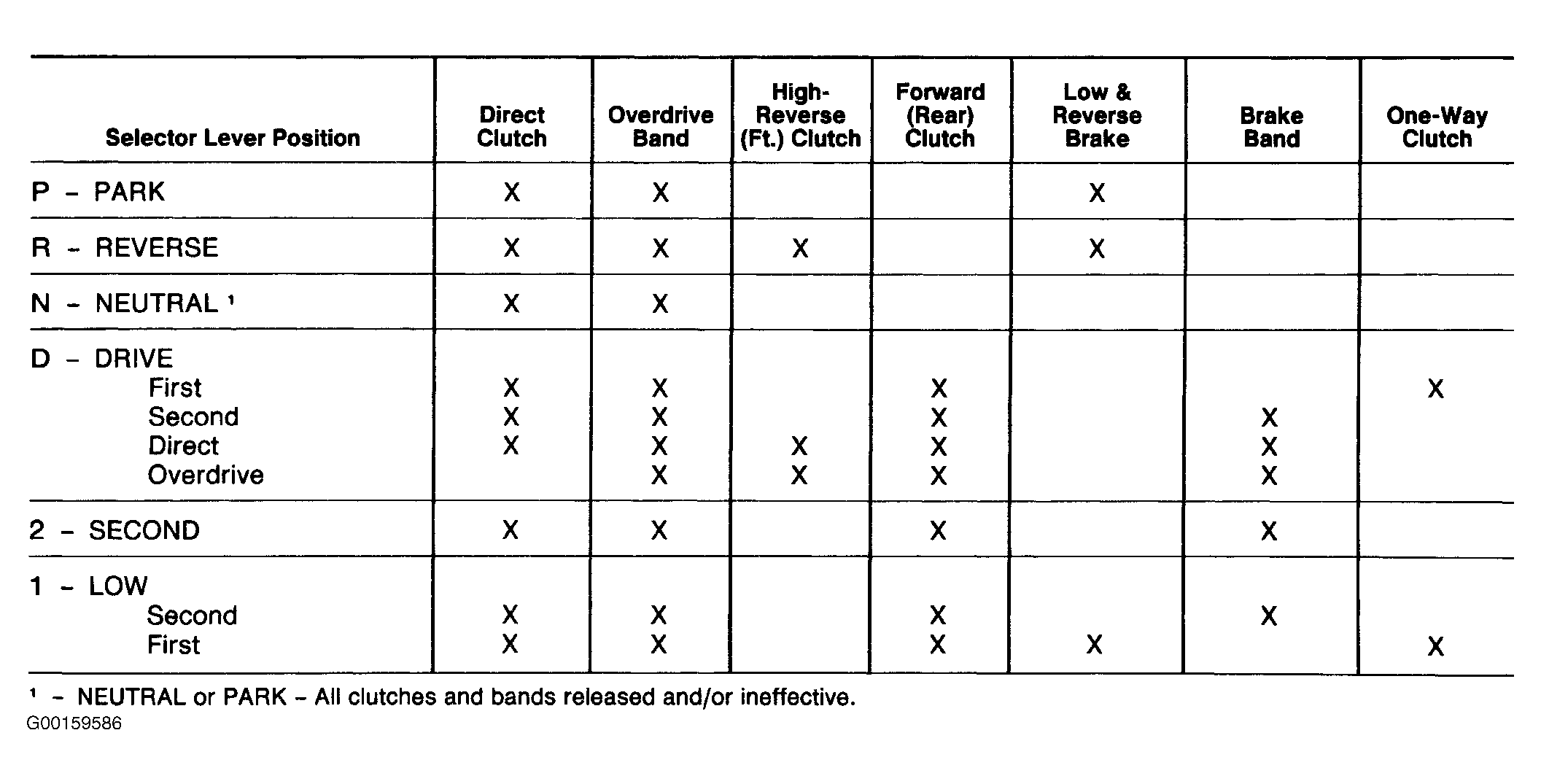

Fig 2: Clutch & Band Application Table (E4N71B, JM600 & L4N71B)

G00159586
