Shift Speed Charts

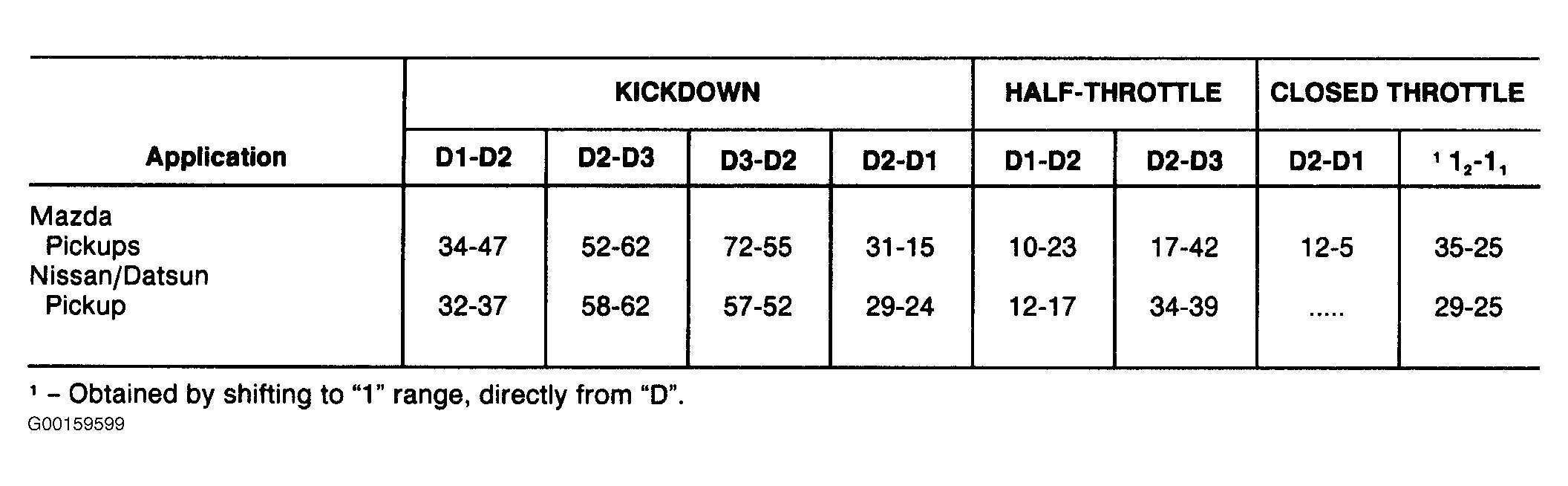

Fig 1: Shift Speed Chart (3N71B & L3N71B - MPH)

G00159599

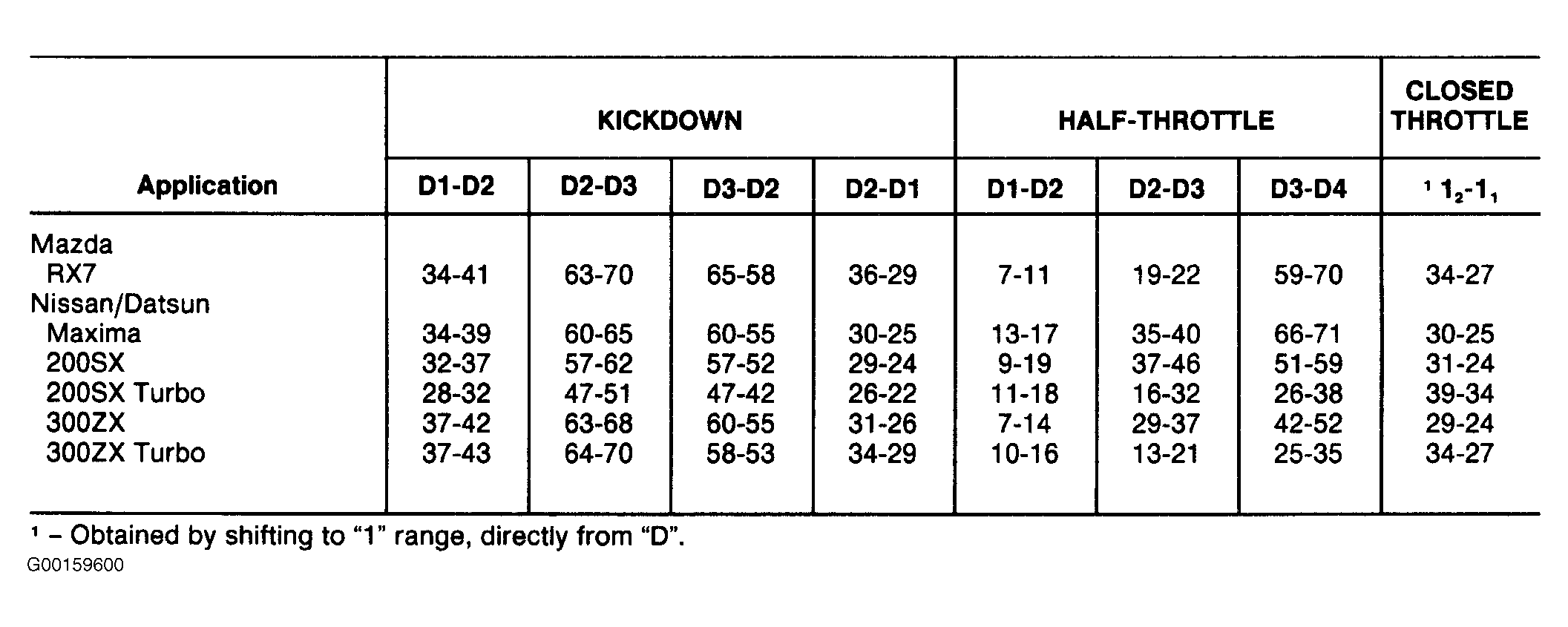

Fig 2: Shift Speed Chart (E4N71B & L4N71B - MPH)

G00159600

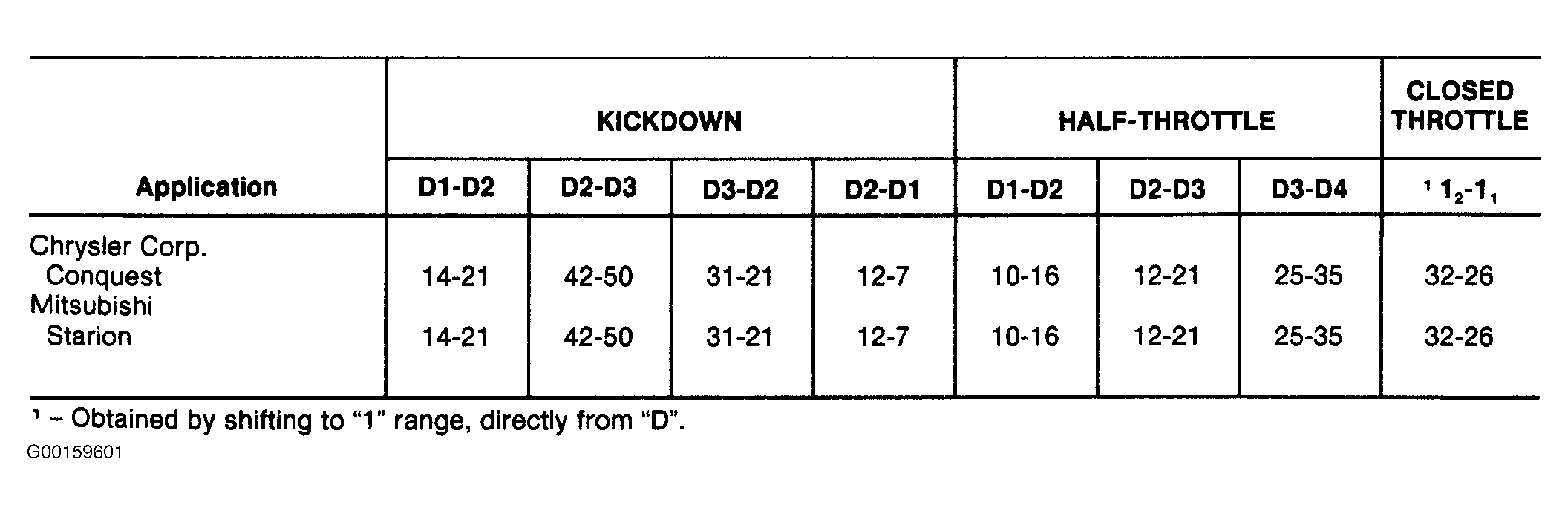

Fig 3: Shift Speed Chart (JM600 - MPH)

G00159601
