Valve Body Assembly: Reassembly

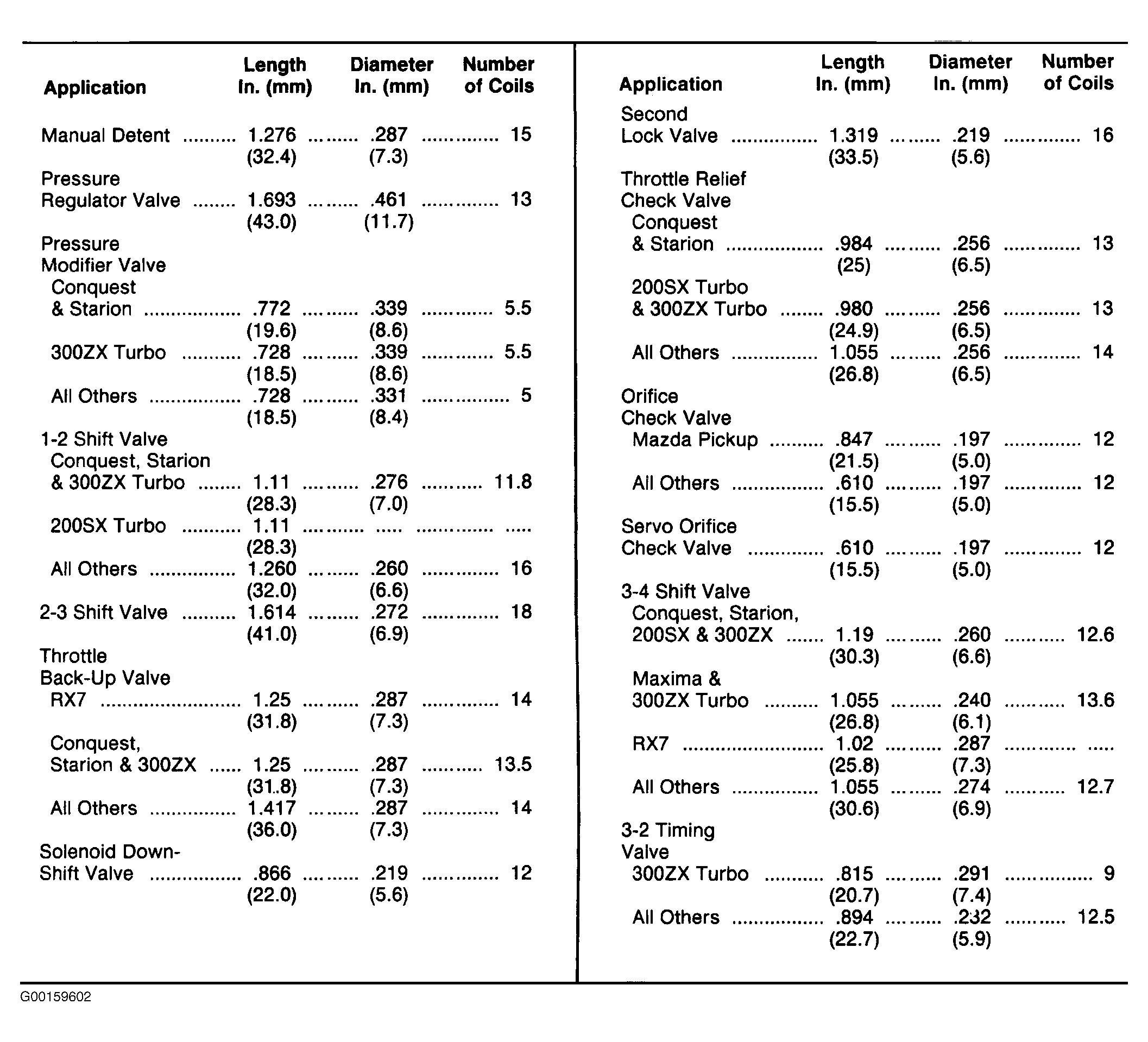

Replace all parts in reverse order of removal after coating parts with clean ATF. Use Figure or Figure
as guide to confirm location and position of valves and springs. See Fig 1. DO NOT force any part which seems difficult to place or insert. Use light, straight pressure to fit parts.
