Low & Reverse Brake: Inspection

Check lined, steel, and retaining plate surfaces for wear, scoring, or other damage and replace parts as required. See Fig 1. Inspect piston release spring for distortion or cracks and replace if damaged. Check piston for damage and replace if needed.

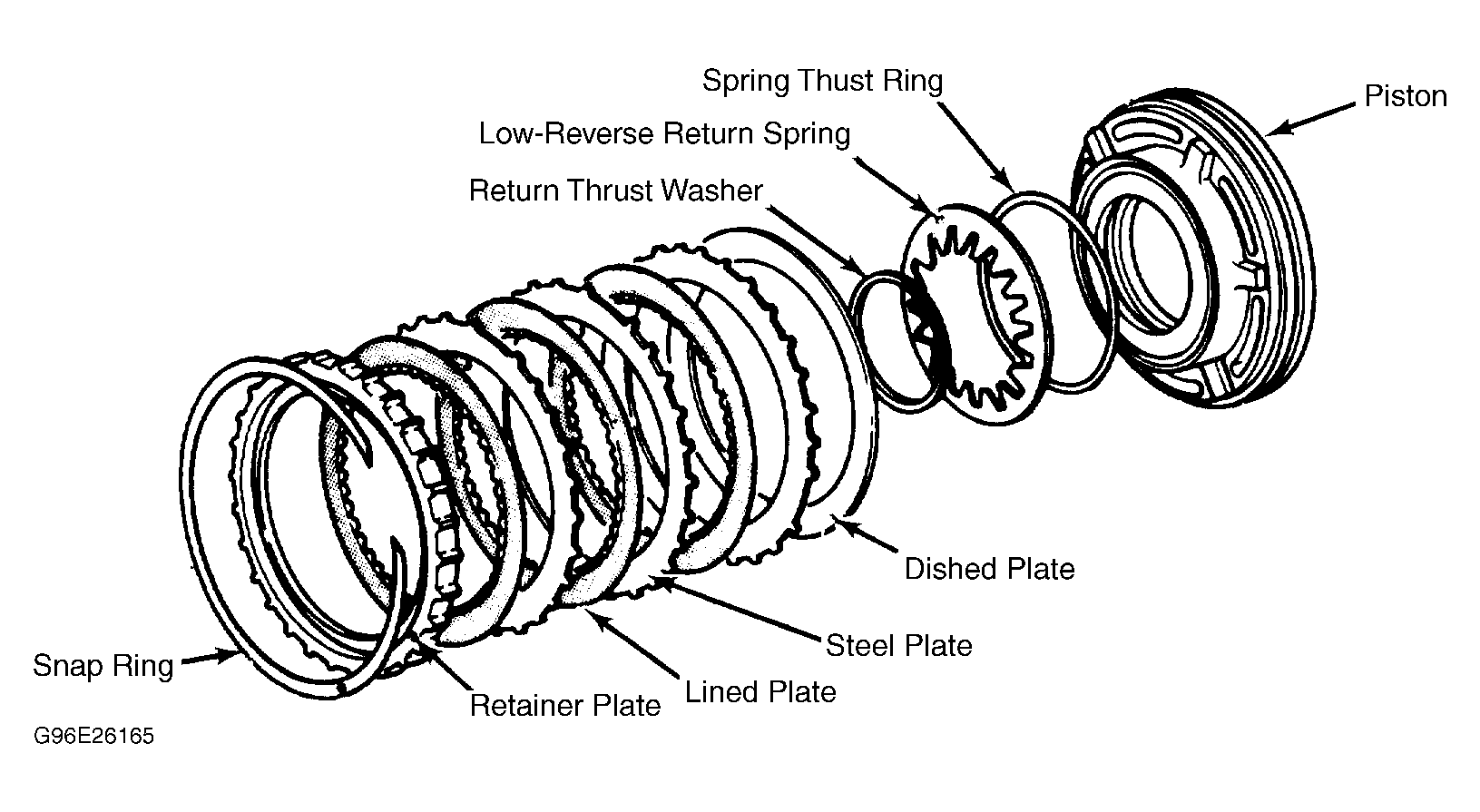

Fig 1: Exploded View Of Low & Reverse Brake Assembly

Courtesy of MAZDA MOTOR CORP.
