Shift Speed Charts

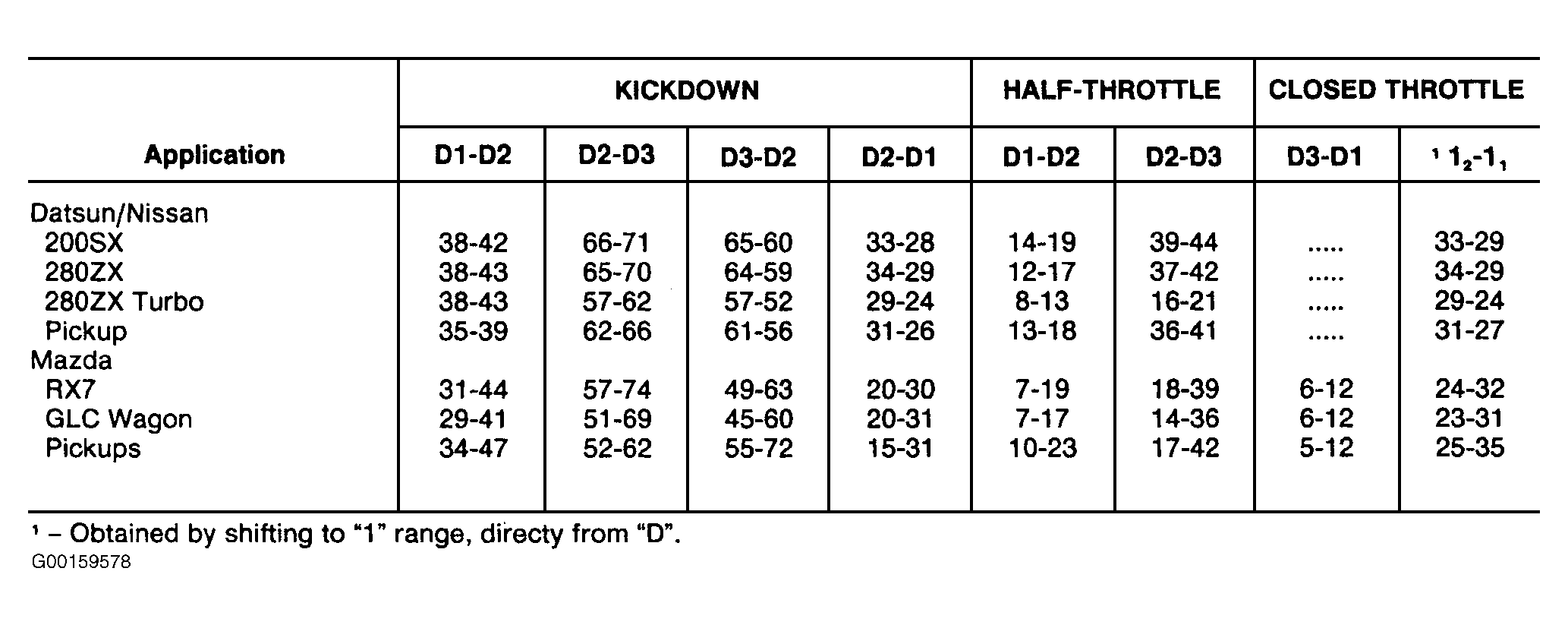

Fig 1: Shift Speed Chart For 3N71B & L3N71B Transmissions (MPH)

G00159578

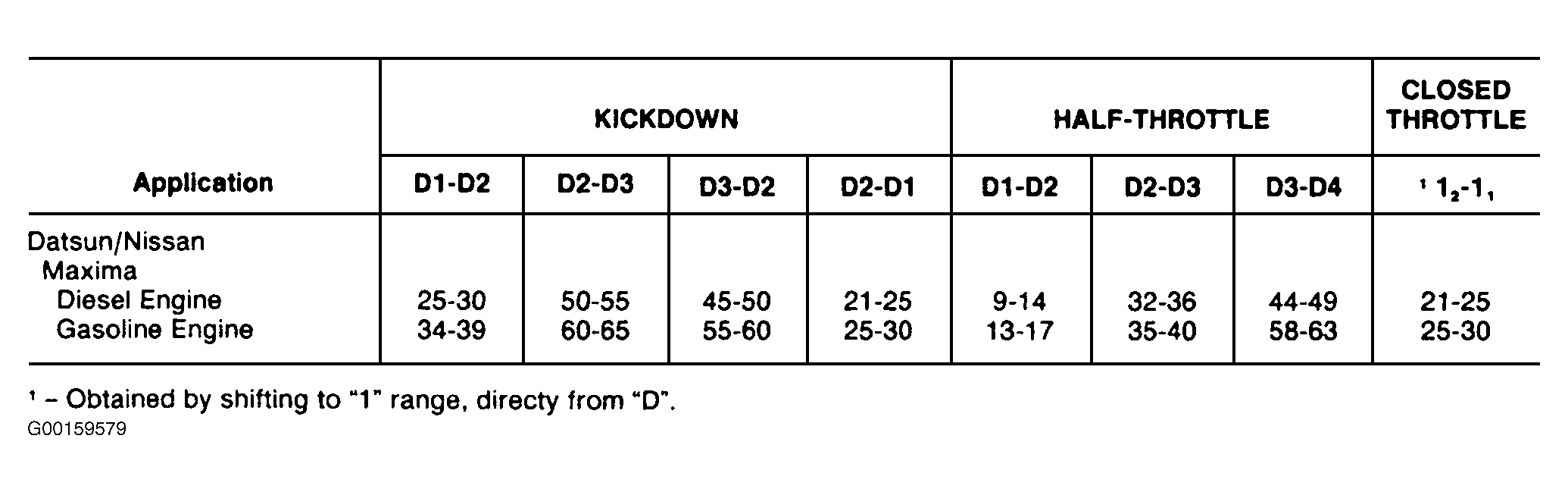

Fig 2: Shift Speed Chart For L4N71B Transmissions (MPH)

G00159579
